Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1956226-2RE035024 |
539 |
|
Ficha técnica |
RE, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | cURus, VDE | General Purpose | - | - |
|
RTE44012FRELAY GEN PURPOSE DPST 8A 12V |
6,366 |
|
Ficha técnica |
RT2 | Box | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RTH14012RELAY GEN PURPOSE SPDT 16A 12V |
10,540 |
|
Ficha técnica |
RTH, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 105°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
32.21.7.024.4000RELAY GEN PURPOSE SPDT 6A 24V |
119 |
|
Ficha técnica |
32 | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 8.3 mA | Non Latching | - | PC Pin | - | - | 18.7 VDC | - | 6 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, EAC, VDE | General Purpose | - | - |
|

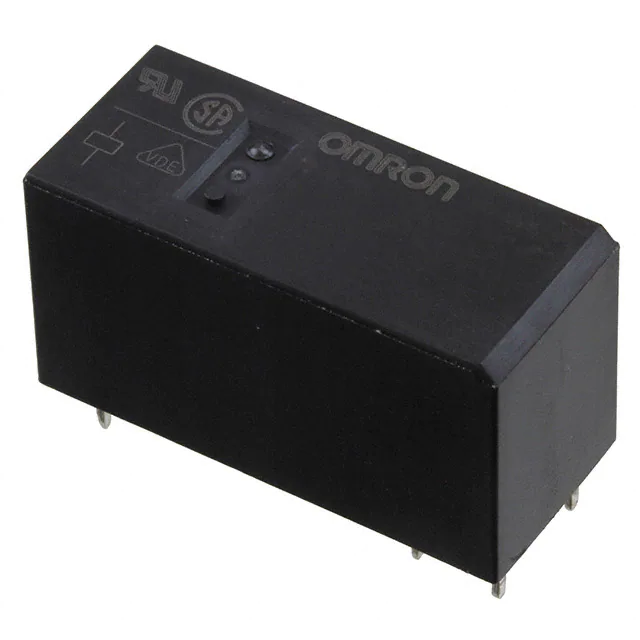

G2RL-2A4-CF DC12RELAY GEN PURPOSE DPST 8A 12V |
3,517 |
|
Ficha técnica |
G2RL | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 440VAC, 300VDC - Max | 3520VA, 2400W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
RTB14024FRELAY GEN PURPOSE SPDT 12A 24V |
2,985 |
|
Ficha técnica |
RT1 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RT31L024RELAY GEN PURPOSE SPDT 16A 24V |
4,275 |
|
Ficha técnica |
RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 9 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
G5CA-1A-TP-E DC12RELAY GEN PURPOSE SPST 15A 12V |
125 |
|
Ficha técnica |
G5CA | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 16.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | - | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
7-1462039-2IM07DTS=IM RELAY 200MW 24V |
1,065 |
|
Ficha técnica |
IM, AXICOM | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 220VDC - Max | 62.5VA, 60W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 2.4 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | UR, VDE | Telecom | - | - |
|
40.51.9.024.0000RELAY GEN PURPOSE SPDT 10A 24V |
157 |
|
Ficha técnica |
40 | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 27 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|

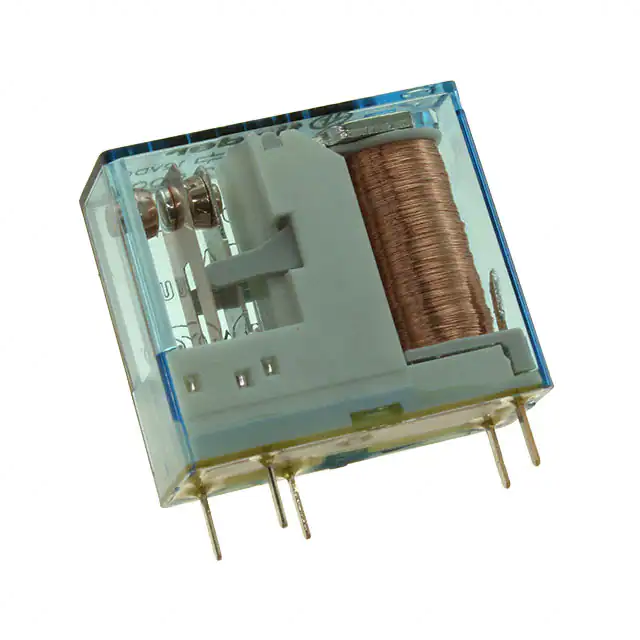

40.31.9.012.0000RELAY GEN PURPOSE SPDT 10A 12V |
107 |
|
Ficha técnica |
40 | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 55 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 8.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|

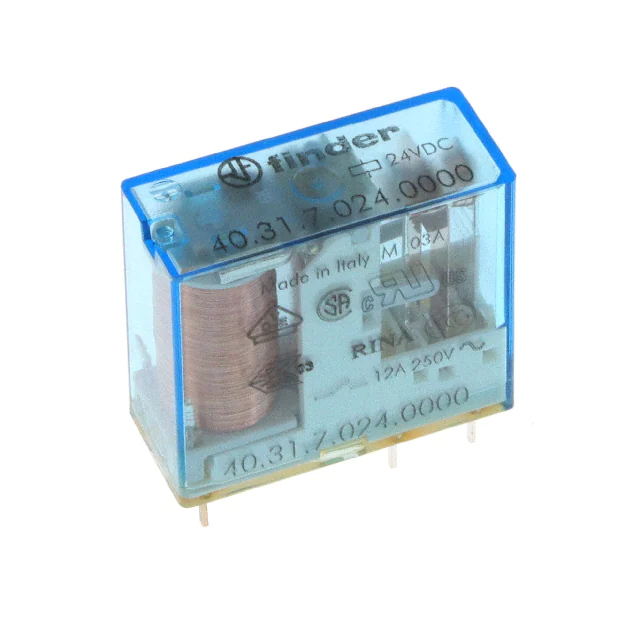

40.31.7.024.0000RELAY GEN PURPOSE SPDT 10A 24V |
320 |
|
Ficha técnica |
40 | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 21 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
|
G2R-1A DC24RELAY GEN PURPOSE SPST 10A 24V |
1,513 |
|
Ficha técnica |
G2R | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
RJ1S-C-D24RELAY GEN PURPOSE SPDT 12A 24V |
10,372 |
|
Ficha técnica |
RJ | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 12 A | 250VAC - Nom | - | 22.1 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
G2R-1A DC12RELAY GEN PURPOSE SPST 10A 12V |
2,642 |
|
Ficha técnica |
G2R | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
DSP2A-DC3VRELAY GEN PURPOSE DPST 5A 3V |
382 |
|
Ficha técnica |
DSP | Bulk | Active | Through Hole | 3VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.4 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
G5RL-1-E-HR DC12RELAY GEN PURPOSE SPDT 16A 12V |
704 |
|
Ficha técnica |
G5RL | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
PCN-112D3MHZ,000RELAY GEN PURPOSE SPST 3A 12V |
13,558 |
|
Ficha técnica |
PCN, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 277VAC, 125VDC - Max | 831VA, 375W | 10 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 8 ms | 3 ms | -30°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
1462039-9RELAY TELECOM DPDT 5A 2.4V |
16,509 |
|
Ficha técnica |
IM, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 2.4VDC | DPDT (2 Form C) | 5 A | 250VAC, 220VDC - Max | 62.5VA, 60W | 41.7 mA | Latching, Single Coil | - | Gull Wing | Sealed - Hermetically | - | 1.8 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | UR, VDE | Telecom | - | - |
|
|
RT314012FRELAY GEN PURPOSE SPDT 16A 12V |
2,079 |
|
Ficha técnica |
RT1 | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
