Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RY212024RELAY GEN PURPOSE SPDT 8A 24V |
395 |
|
Ficha técnica |
RY, SCHRACK | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
G2R-1-T-DC24RELAY GEN PURPOSE SPDT 10A 24V |
2,972 |
|
Ficha técnica |
G2R | Tray | Active | Chassis Mount | 24VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 21.8 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
RTD14005FRELAY GEN PURPOSE SPDT 16A 5V |
14,535 |
|
Ficha técnica |
RT1 | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 80.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
RTE44024FRELAY GEN PURPOSE DPST 8A 24V |
1,083 |
|
Ficha técnica |
RT2 | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
J1512CT24VAC1.2DTRELAY GEN PURPOSE DPDT 20A 24V |
216 |
|
Ficha técnica |
J151 | Tray | Active | Socketable | 24VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 130.4 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
RY612024RELAY GEN PURPOSE SPDT 8A 24V |
200 |
|
Ficha técnica |
RY, SCHRACK | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|

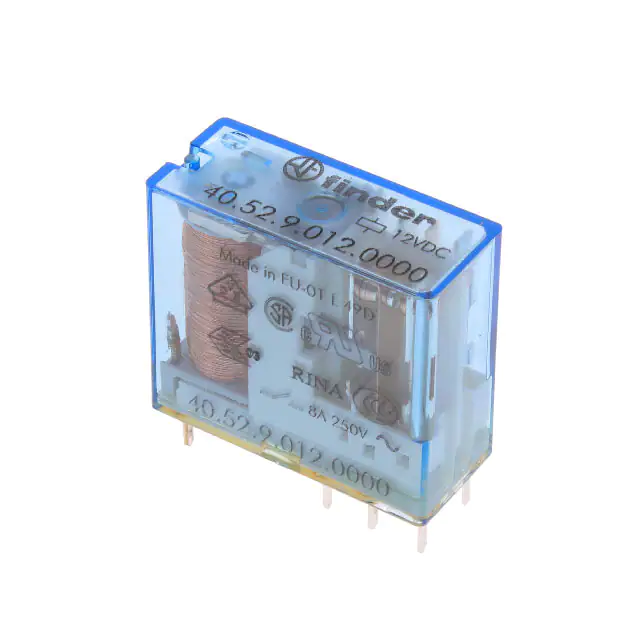

40.52.9.012.0000RELAY GEN PURPOSE DPDT 8A 12V |
441 |
|
Ficha técnica |
40 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 55 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 8.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
G2RL-1-H DC12RELAY GEN PURPOSE SPDT 10A 12V |
2,403 |
|
Ficha técnica |
G2RL | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 440VAC, 300VDC - Max | 4400VA, 3000W | 20.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G6BK-1114P-US DC12RELAY GEN PURPOSE SPST 5A 12V |
13,273 |
|
Ficha técnica |
G6B | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 23.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
DE1A-12VRELAY GEN PURPOSE SPST 10A 12V |
387 |
|
Ficha técnica |
DE | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 16.7 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
|
G6B-1174P-US DC24RELAY GEN PURPOSE SPST 8A 24V |
5,452 |
|
Ficha técnica |
G6B | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
J1512CF120VAC1.2RELAY GEN PURPOSE DPDT 20A 120V |
587 |
|
Ficha técnica |
J151 | Tray | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 26.4 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
G2R-2 DC5RELAY GEN PURPOSE DPDT 5A 5V |
295 |
|
Ficha técnica |
G2R | Tray | Active | Through Hole | 5VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G6B-1114P-US DC12RELAY GEN PURPOSE SPST 5A 12V |
2,052 |
|
Ficha técnica |
G6B | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
RTB14005FRELAY GEN PURPOSE SPDT 12A 5V |
23,922 |
|
Ficha técnica |
RT1 | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 80.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
T9AS1D12-48RELAY GEN PURPOSE SPST 30A 48V |
3,577 |
|
Ficha técnica |
T9A | Bulk | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 21 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
G2R-14 DC24RELAY GEN PURPOSE SPDT 8A 24V |
10,265 |
|
Ficha técnica |
G2R | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G6C-2117P-US DC5RELAY GEN PURPOSE DPST 8A 5V |
794 |
|
Ficha técnica |
G6C | Bulk | Active | Through Hole | 5VDC | SPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
40.61.9.024.4000RELAY GEN PURPOSE SPDT 16A 24V |
266 |
|
Ficha técnica |
40 | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 27 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
|
RT424005FRELAY GEN PURPOSE DPDT 8A 5V |
294 |
|
Ficha técnica |
RT2 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
