Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6D-1A-ASI-NP DC24RELAY GEN PURPOSE SPST 5A 24V |
9,217 |
|
Ficha técnica |
G6D | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 70°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
APF30212RELAY GEN PURPOSE SPDT 6A 12V |
792 |
|
Ficha técnica |
APF | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | - | 14.2 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
G2R-2 DC48RELAY GEN PURPOSE DPDT 5A 48V |
200 |
|
Ficha técnica |
G2R | Tray | Active | Through Hole | 48VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 11.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
DSP1A-DC12VRELAY GEN PURPOSE SPST 8A 12V |
686 |
|
Ficha técnica |
DSP | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
G6B-1114P-1-US DC12RELAY GEN PURPOSE SPST 5A 12V |
469 |
|
Ficha técnica |
G6B | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
JVN1A-24V-FRELAY GEN PURPOSE SPST 16A 24V |
297 |
|
Ficha técnica |
JV-N | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 4432VA, 480W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
|
PCN-124D3MHZ,001BRELAY GEN PURPOSE SPST 5A 24V |
553 |
|
Ficha técnica |
PCN, SCHRACK | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 1385VA, 625W | 5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.8 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
ALFG2PF12RELAY GEN PURPOSE SPST 31A 12V |
195 |
|
Ficha técnica |
ALFG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 31 A | 250VAC - Max | 7750VA | 117 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
2903660RELAY GEN PURPOSE DPDT 12A 24V |
193 |
|
Ficha técnica |
REL-IR | - | Active | Socketable | 24VDC | DPDT (2 Form C) | 12 A | 250VAC, 250VDC - Max | - | 42 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | - | - | 13 ms | 14 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
RT424F24RELAY GEN PURPOSE DPDT 8A 24V |
17,315 |
|
Ficha técnica |
RT2, SCHRACK | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | - | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RTS3T024RELAY GEN PURPOSE SPST 16A 24V |
5,281 |
|
Ficha técnica |
RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Tungsten (W) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
T9CP5A54-24RELAY GEN PURPOSE SPDT 20A 24V |
4,622 |
|
Ficha técnica |
T9C, OEG | Bulk | Active | Chassis Mount | 24VAC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 66.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 19.2 VAC | 7.2 VAC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CSA, UR, VDE | General Purpose | - | - |
|
|
RT334730RELAY GEN PURPOSE SPST 16A 230V |
2,630 |
|
Ficha técnica |
RT1, SCHRACK | Tube | Active | Through Hole | 230VAC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G2R-1-E DC6RELAY GEN PURPOSE SPDT 16A 6V |
160 |
|
Ficha técnica |
G2R | Tray | Active | Through Hole | 6VDC | SPDT (1 Form C) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 88.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
DSP1-L2-DC24V-FRELAY GEN PURPOSE DPST 5A 24V |
8,781 |
|
Ficha técnica |
DSP | Tube | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 12.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 19.2 VDC | - | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
G6C-1114P-US DC5RELAY GEN PURPOSE SPST 10A 5V |
1,786 |
|
Ficha técnica |
G6C | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
RT424110RELAY GEN PURPOSE DPDT 8A 110V |
1,481 |
|
Ficha técnica |
RT2, SCHRACK | Box | Active | Through Hole | 110VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 77 VDC | 11 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|

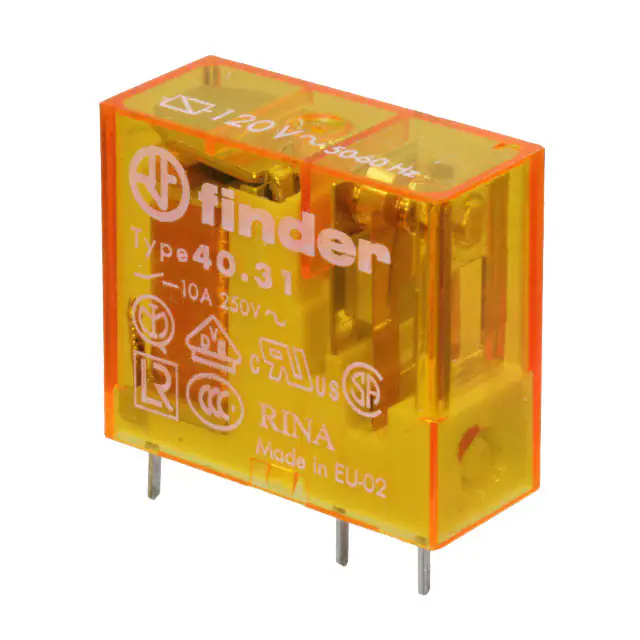

40.31.8.120.0000RELAY GEN PURPOSE SPDT 10A 120V |
12,016 |
|
Ficha técnica |
40 | Bulk | Active | Socketable | 120VAC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 8.4 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 96 VAC | 24 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
T9AS1D12-110RELAY GEN PURPOSE SPST 30A 110V |
1,148 |
|
Ficha técnica |
T9A | Bulk | Active | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
RT114730RELAY GEN PURPOSE SPDT 12A 230V |
1,087 |
|
Ficha técnica |
RT1, SCHRACK | Tube | Active | Through Hole | 230VAC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
