Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

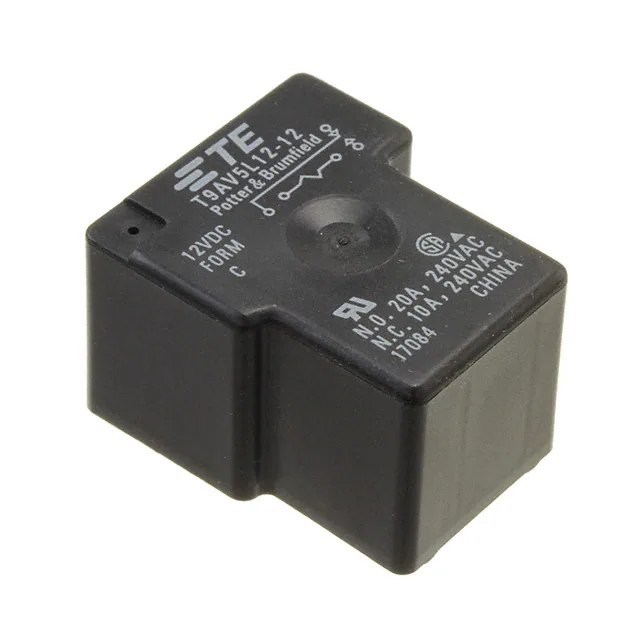

T9AV5L12-12RELAY GEN PURPOSE SPDT 20A 12V |
856 |
|
Ficha técnica |
T9A | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 77.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
T9AV5D12-22RELAY GEN PURPOSE SPDT 20A 22V |
516 |
|
Ficha técnica |
T9A | Bulk | Active | Through Hole | 22VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | - | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
G6C-2114P-US DC3RELAY GENERAL PURPOSE DPST 8A 3V |
2,680 |
|
Ficha técnica |
G6C | Bulk | Active | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 67 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G2R-1-E DC48RELAY GEN PURPOSE SPDT 16A 48V |
142 |
|
Ficha técnica |
G2R | Tray | Active | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 11.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
T9AP1D52-48RELAY GEN PURPOSE SPST 30A 48V |
1,116 |
|
Ficha técnica |
T9A | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 21 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
4058570000RELAY GEN PURPOSE DPDT 8A 24V |
187 |
|
Ficha técnica |
RCL | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 240VAC - Max | 1920VA | 16.7 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
|
J1512CT24VAC1.2GTRELAY GEN PURPOSE DPDT 20A 24V |
120 |
|
Ficha técnica |
J151 | Tray | Active | Socketable | 24VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 130.4 mA | Non Latching | Test Button | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO), Gold (Au) | cURus | General Purpose | - | - |
|
|
3-1393240-0RELAY GEN PURPOSE SPST 16A 5V |
759 |
|
Ficha técnica |
RT1, SCHRACK | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 80.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 9 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
G6B-2014P-US DC12RELAY GEN PURPOSE DPST 5A 12V |
853 |
|
Ficha técnica |
G6B | Tray | Active | Through Hole | 12VDC | DPST-NC (2 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
7-1393239-7RELAY GEN PURPOSE SPDT 16A 3V |
2,366 |
|
Ficha técnica |
RT1 Bistable, SCHRACK | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 143 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 2.1 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
G2RG-2A4 DC24RELAY GEN PURPOSE DPST 8A 24V |
1,002 |
|
Ficha técnica |
G2RG | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR VDE | General Purpose | - | - |
|
T9AS1L12-24RELAY GEN PURPOSE SPST 30A 24V |
364 |
|
Ficha técnica |
T9A | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
9-1415389-1RELAY GEN PURPOSE SPDT 5A 2.2V |
407 |
|
Ficha técnica |
PE, SCHRACK | Bulk | Active | Through Hole | 2VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 110 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 1.65 VDC | - | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
T9AP1D52-48-01RELAY GEN PURPOSE SPST 30A 48V |
116 |
|
Ficha técnica |
T9A | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 21 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
DK1A-L2-12V-FRELAY GEN PURPOSE SPST 10A 12V |
3,149 |
|
Ficha técnica |
DK | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G4A-1A-E DC12RELAY GEN PURPOSE SPST 20A 12V |
21,665 |
|
Ficha técnica |
G4A | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -20°C ~ 60°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G4A-1A-E DC5RELAY GEN PURPOSE SPST 20A 5V |
15,862 |
|
Ficha técnica |
G4A | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 180 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 20 ms | 10 ms | -20°C ~ 60°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
T9AS5D22-24RELAY GEN PURPOSE SPDT 20A 24V |
7,047 |
|
Ficha técnica |
T9A | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 41.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
G2R-1A-T DC24RELAY GEN PURPOSE SPST 10A 24V |
483 |
|
Ficha técnica |
G2R | Tray | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 21.8 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
RTB14615RELAY GEN PURPOSE SPDT 12A 115V |
3,864 |
|
Ficha técnica |
RT1, SCHRACK | Tube | Active | Through Hole | 115VAC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 86.3 VAC | 17.3 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
