Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RTE24730RELAY GEN PURPOSE DPDT 8A 230V |
1,738 |
|
Ficha técnica |
RT2, SCHRACK | Box | Active | Through Hole | 230VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 7.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 172.5 VAC | 34.5 VAC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|

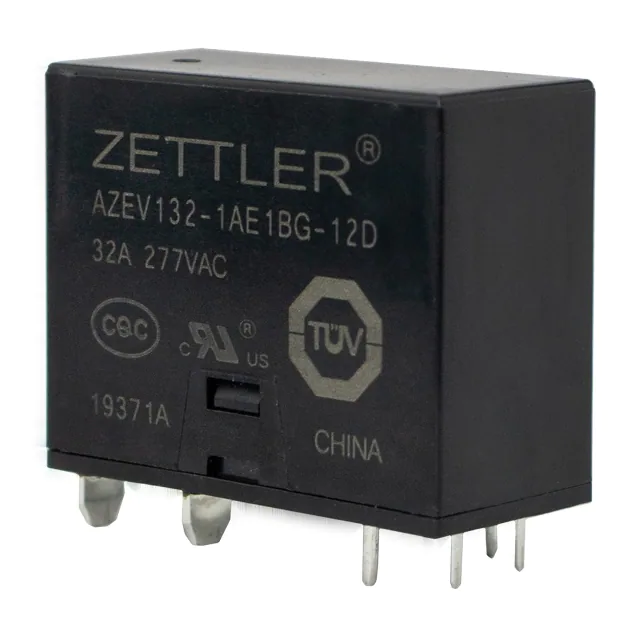

AZEV132-1AE1BG-12DRELAY EV CHARGING SPST 32A 12V |
864 |
|
Ficha técnica |
AZEV132 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 32 A | 400VAC - Max | 12800VA | 129 mA | Non Latching | Contact Weld Detection | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO); Silver Nickel (AgNi), Gold (Au) | CQC, cURus, TUV | EV Charging | - | - |
|
RP3SL012RELAY GEN PURPOSE SPST 16A 12V |
949 |
|
Ficha técnica |
RP3SL, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 14 ms | 12 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
1415898-4RELAY GEN PURPOSE SPST 16A 3V |
2,928 |
|
Ficha técnica |
RT, SCHRACK | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 200 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 2.1 VDC | 1.8 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO), Tungsten (W) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
G6B-1174P-US DC5RELAY GEN PURPOSE SPST 8A 5V |
1,477 |
|
Ficha técnica |
G6B | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
RTB14730RELAY GEN PURPOSE SPDT 12A 230V |
7,025 |
|
Ficha técnica |
RT1, SCHRACK | Tube | Active | Through Hole | 230VAC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G4W-2212P-US-TV5-HP DC12RELAY GEN PURPOSE DPST 10A 12V |
3,809 |
|
Ficha técnica |
G4W | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 10 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 66.7 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G6B-2014P-US DC5RELAY GEN PURPOSE DPST 5A 5V |
1,053 |
|
Ficha técnica |
G6B | Bulk | Active | Through Hole | 5VDC | DPST-NC (2 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
46.52.9.024.0040RELAY GEN PURPOSE DPDT 8A 24V |
238 |
|
Ficha técnica |
46 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 8 A | 440VAC - Max | 3520VA | 20 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 17.5 VDC | 4.8 VDC | 10 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
34.51.7.024.5010RELAY GEN PURPOSE SPDT 6A 24V |
554 |
|
Ficha técnica |
34 | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 7.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 5 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | CCC, cURus, RINA, VDE | General Purpose | - | - |
|
|
G4A-1A-E DC24RELAY GEN PURPOSE SPST 20A 24V |
210 |
|
Ficha técnica |
G4A | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -20°C ~ 60°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
ST2-L2-DC5V-FRELAY GEN PURPOSE DPST 8A 5V |
2,004 |
|
Ficha técnica |
ST | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 250VDC - Max | 3040VA, 2000W | 45 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4 VDC | - | 15 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
|
G6B-2214P-US DC24RELAY GEN PURPOSE DPST 5A 24V |
2,883 |
|
Ficha técnica |
G6B | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
|
G6B-2114P-1-US DC12RELAY GEN PURPOSE DPST 5A 12V |
260 |
|
Ficha técnica |
G6B | Tray | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
LY1F-DC12RELAY GEN PURPOSE SPDT 15A 12V |
3,824 |
|
Ficha técnica |
LY | Bulk | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
AZ2850-2A-12DERELAY EV CHG SOLAR DPST 40A 12V |
213 |
|
Ficha técnica |
AZ2850 | Tray | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 140 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
RC-200124-DNRELAY GEN PURPOSE SPDT 20A 24V |
113 |
|
Ficha técnica |
ISO MINI® | Bulk | Active | Chassis Mount | 24VDC | SPDT (1 Form C) | 20 A | 32VDC - Max | 640W | - | Non Latching | Diode | Plug In | - | - | 15.6 VDC | - | - | - | -40°C ~ 85°C | Silver Alloy | - | General Purpose | - | - |
|
RT425012RELAY GEN PURPOSE DPDT 8A 12V |
3,233 |
|
Ficha técnica |
RT2, SCHRACK | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
RTE25012RELAY GEN PURPOSE DPDT 8A 12V |
2,265 |
|
Ficha técnica |
RT2, SCHRACK | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
AZ2800-2A-24DERELAY EV CHG SOLAR DPST 40A 24V |
186 |
|
Ficha técnica |
AZ2800 | Tray | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 68.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
