Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KRPA-14AN-24RELAY GEN PURPOSE 3PDT 10A 24V |
61 |
|
Ficha técnica |
KRPA | Bulk | Active | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 84 mA | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | Class B | 20.4 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
AHER4191HE-R RELAY, 4FORMA+1FORMB, 12VDC |
26 |
|
Ficha técnica |
HE-R | Tray | Active | Through Hole | 12VDC | 5PST-4NO/1NC (4 Form A, 1 Form B) | 40 A | 480VAC - Max | 19200VA | 333 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 0.6 VDC | 50 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
R10-E1Y2-S800RELAY GEN PURPOSE DPDT 3A 12V |
241 |
|
Ficha técnica |
R10 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 15 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

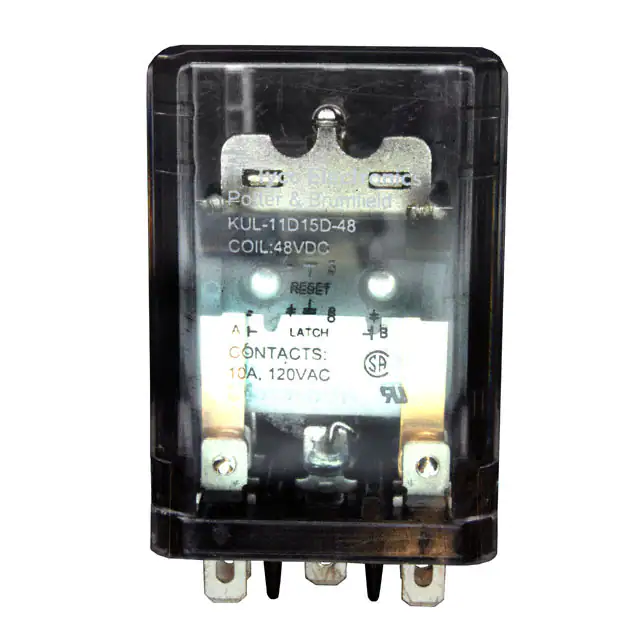

KUL-11D15D-48RELAY GEN PURPOSE DPDT 10A 48V |
77 |
|
Ficha técnica |
KUL | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 34.3 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 36 VDC | - | 25 ms | 25 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
PRD-7DG0-24RELAY GEN PURPOSE DPST 30A 24V |
71 |
|
Ficha técnica |
PRD | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC, 125VDC - Nom | - | 84 mA | Non Latching | - | Screw Terminal | - | Class B | 18 VDC | 2.4 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
PRD-11AJ0-120RELAY GEN PURPOSE DPDT 20A 120V |
26 |
|
Ficha técnica |
PRD | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 20 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
G7L-2A-X-L DC24RELAY GEN PURPOSE DPST 20A 24V |
194 |
|
Ficha técnica |
G7L-X | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 20 A | 1000VDC - Max | 20000W | 95.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | cULus, VDE | General Purpose | - | - |
|
|
G9KA-1A-E DC12RELAY GEN PURPOSE SPST 300A 12V |
540 |
|
Ficha técnica |
G9KA | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 300 A | 1000VAC - Max | 300000VA | 417 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, TUV, UL | General Purpose | - | - |
|
R10-E1W4-V700RELAY GEN PURPOSE 4PDT 7.5A 24V |
89 |
|
Ficha técnica |
R10 | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 7.5 A | 120VAC - Nom | - | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
G9EA-1-B DC48RELAY GEN PURPOSE SPST 60A 48V |
31 |
|
Ficha técnica |
G9EA-1 | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Max | 24000W | 102 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 36 VDC | 3.84 VDC | 50 ms | 30 ms | -40°C ~ 70°C | - | cURus | General Purpose | - | - |
|
|
29-014-12RELAY GEN PURPOSE SPST 75A |
48 |
|
Ficha técnica |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 75 A | - | 10W | 368.4 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 35 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|

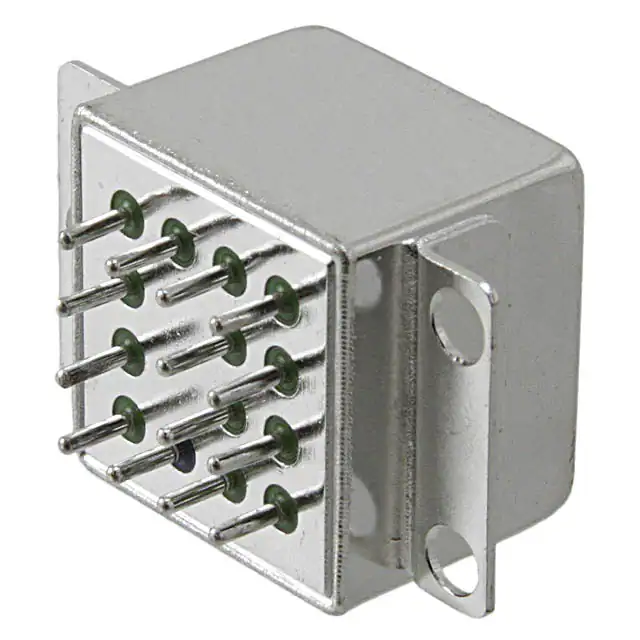

FCB-405-0620MRELAY GEN PURPOSE 4PDT 5A 28V |
0 |
|
Ficha técnica |
FCB-405, CII | Bulk | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 5 A | 115VAC, 28VDC - Max | 575VA, 140W | 70 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 6 ms | 6 ms | -70°C ~ 125°C | - | - | General Purpose | Military | MIL-R-83536/6 |
|
|
FCB-205-0224LFCB-205-0224L=M83536/2-024L |
9 |
|
Ficha técnica |
FCB-205, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|

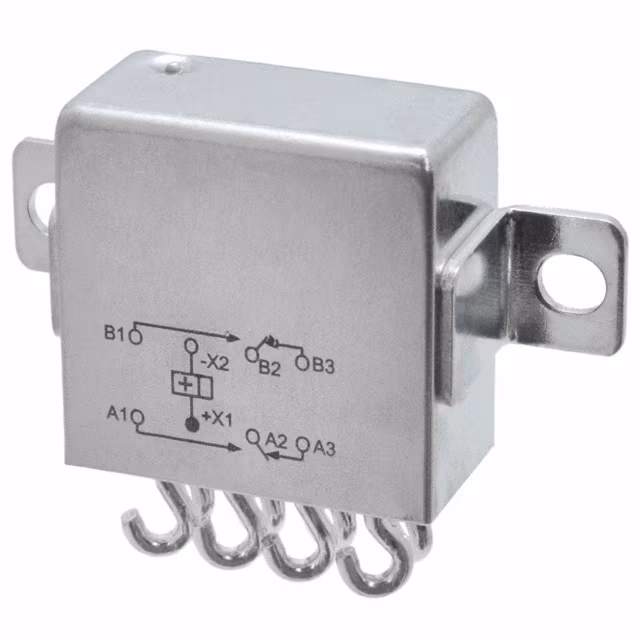

FCA-210-0926MRELAY GEN PURPOSE DPDT 10A 28V |
27 |
|
Ficha técnica |
FCA-210, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 87.5 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-83536/9 |
|
J1021AS512VDC.45RELAY GEN PURPOSE SPST 5A 12V |
1,097 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
J105D1AS5VDC.45RELAY GEN PURPOSE SPST 10A 5V |
3,903 |
|
Ficha técnica |
J105D | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|

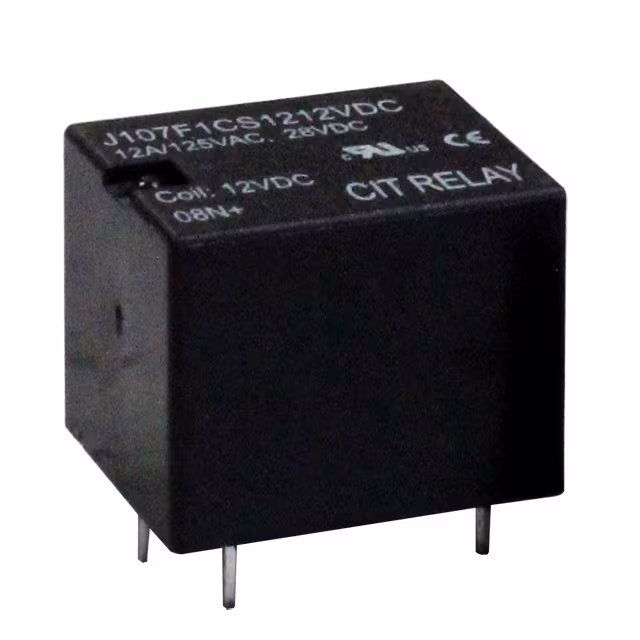

J107F1CS1212VDC.45RELAY GEN PURPOSE SPDT 12A 12V |
7,959 |
|
Ficha técnica |
J107F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J1021CS59VDC.45RELAY GEN PURPOSE SPDT 5A 9V |
1,752 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
AZ7709-1AE-24DERELAY GEN PURPOSE SPST 5A 24V |
373 |
|
Ficha técnica |
AZ7709 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
J1021AS35VDC.20RELAY GEN PURPOSE SPST 3A 5V |
4,451 |
|
Ficha técnica |
J102 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
