Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J105D1CS18VDC.45RELAY GEN PURPOSE SPDT 10A 18V |
1,142 |
|
Ficha técnica |
J105D | Tray | Active | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 13.5 VDC | 1.8 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
PR2-5V-450-1CRELAY GEN PURPOSE SPDT 10A 5V |
1,094 |
|
Ficha técnica |
PR2 | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 90.9 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR2-12V-450-1CRELAY GEN PURPOSE SPDT 10A 12V |
996 |
|
Ficha técnica |
PR2 | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 37.5 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR13-5V-450-1CRELAY GEN PURPOSE SPDT 10A 5V |
833 |
|
Ficha técnica |
PR13 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 90.9 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
AZ9422-1CE-5DFRELAY GEN PURPOSE SPDT 20A 5V |
774 |
|
Ficha técnica |
AZ9422 | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 20 A | 277VAC, 30VDC - Max | 4700VA, 480W | 71.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.8 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CUR, TUV, UL | General Purpose | - | - |
|
|
PR14-5V-360-1CRELAY GEN PURPOSE SPDT 10A 5V |
321 |
|
Ficha técnica |
PR14 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 90.9 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR3-24V-200-1ARELAY GEN PURPOSE SPST 10A 24V |
199 |
|
Ficha técnica |
PR3 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 18.8 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
G5Q-1A-EL2-HA DC24RELAY GEN PURPOSE SPST 10A 24V |
2,744 |
|
Ficha técnica |
G5Q-EL2 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
OJS-SH-112HMF, 00000RELAY GEN PURPOSE SPST 10A 12V |
9,859 |
|
Ficha técnica |
OJS, OEG | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Max | 2500VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 15 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CQC, cURus, TUV | General Purpose | - | - |
|
G5Q-1A-EL-HA-VH DC24RELAY GEN PURPOSE SPST 10A 24V |
1,057 |
|
Ficha técnica |
G5Q-EL | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
J109F1CS125VDC.45RELAY GEN PURPOSE SPDT 12A 5V |
1,475 |
|
Ficha técnica |
J109F | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
J107F1AS2048VDC.80RELAY GEN PURPOSE SPST 20A 48V |
176 |
|
Ficha técnica |
J107F | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J114AF1CS12VDC.53RELAY GEN PURPOSE SPDT 16A 12V |
570 |
|
Ficha técnica |
J114AF | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
G5Q-1-HA DC5RELAY GEN PURPOSE SPDT 10A 5V |
2,305 |
|
Ficha técnica |
G5Q | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G5LE-1A-CF DC12RELAY GEN PURPOSE SPST 10A 12V |
292 |
|
Ficha técnica |
G5LE | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | - | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
OJE-SS-112DM,000RELAY GEN PURPOSE SPST 5A 12V |
3,748 |
|
Ficha técnica |
OJE, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 0.6 VDC | 10 ms | 4 ms | -30°C ~ 85°C | Silver Nickel (AgNi) | CQC, cULus, TUV, VDE | General Purpose | - | - |
|

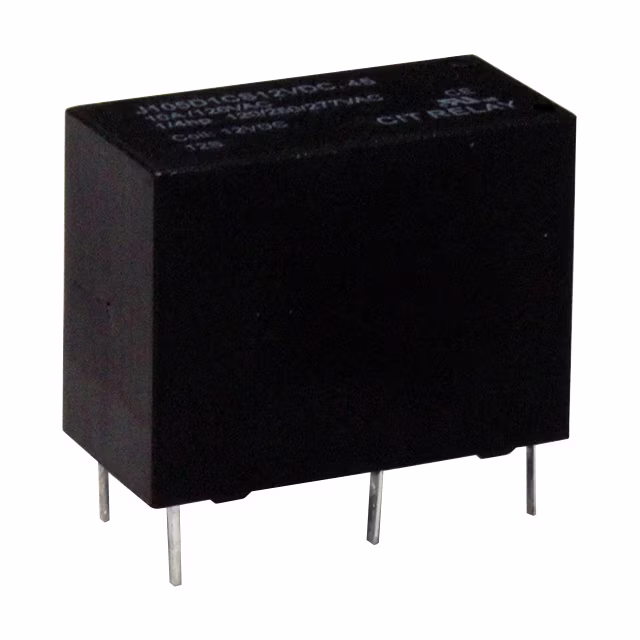

J105D1CS12VDC.45RELAY GEN PURPOSE SPDT 10A 12V |
269 |
|
Ficha técnica |
J105D | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
G5Q-1A DC9RELAY GEN PURPOSE SPST 10A 9V |
370 |
|
Ficha técnica |
G5Q | Tray | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.75 VDC | 0.45 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
OJE-SH-112LMH,000RELAY GEN PURPOSE SPST 8A 12V |
28,594 |
|
Ficha técnica |
OJE, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | 2216VA, 240W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 15 ms | 4 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CQC, cULus, TUV, VDE | General Purpose | - | - |
|
|
OJE-SS-124DM,000RELAY GEN PURPOSE SPST 5A 24V |
5,113 |
|
Ficha técnica |
OJE, OEG | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 1.2 VDC | 10 ms | 4 ms | -30°C ~ 85°C | Silver (Ag) | CQC, cULus, TUV, VDE | General Purpose | - | - |
