Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J105D1CS48VDC.45RELAY GEN PURPOSE SPDT 10A 48V |
3,890 |
|
Ficha técnica |
J105D | Tray | Active | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 9.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 36 VDC | 4.8 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
AZ9422-1CE-24DEFRELAY GEN PURPOSE SPDT 20A 24V |
1,978 |
|
Ficha técnica |
AZ9422 | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 277VAC, 30VDC - Max | 4700VA, 480W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CUR, TUV, UL | General Purpose | - | - |
|
J109F1CS1224VDC.45RELAY GEN PURPOSE SPDT 12A 24V |
1,891 |
|
Ficha técnica |
J109F | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
G5Q-1A-HA DC12RELAY GEN PURPOSE SPST 10A 12V |
1,136 |
|
Ficha técnica |
G5Q | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
AZ9422-1AE-5DFRELAY GEN PURPOSE SPST 20A 5V |
776 |
|
Ficha técnica |
AZ9422 | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 277VAC, 30VDC - Max | 4700VA, 480W | 71.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.8 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CUR, TUV, UL | General Purpose | - | - |
|
|
G5Q-1A-HA DC24RELAY GEN PURPOSE SPST 10A 24V |
560 |
|
Ficha técnica |
G5Q | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G5Q-1A-HA DC5RELAY GEN PURPOSE SPST 10A 5V |
496 |
|
Ficha técnica |
G5Q | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
AZ9422-1CE-12DFRELAY GEN PURPOSE SPDT 20A 12V |
224 |
|
Ficha técnica |
AZ9422 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC, 30VDC - Max | 4700VA, 480W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CUR, TUV, UL | General Purpose | - | - |
|
G5LE-1A4 DC3RELAY GEN PURPOSE SPST 10A 3V |
236 |
|
Ficha técnica |
G5LE | Tray | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | - | 133 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
PR8-12V-450-1ARELAY GEN PURPOSE SPST 16A 12V |
2,072 |
|
Ficha técnica |
PR8 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 37.5 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
G5Q-1-HA DC24RELAY GEN PURPOSE SPDT 10A 24V |
1,054 |
|
Ficha técnica |
G5Q | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
OJ-SH-112HM,000RELAY GEN PURPOSE SPST 10A 12V |
998 |
|
Ficha técnica |
OJ, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 0.6 VDC | 10 ms | 4 ms | -30°C ~ 70°C | Silver (Ag) | CQC, cULus, TUV, VDE | General Purpose | - | - |
|
G5Q-1A4 DC18RELAY GEN PURPOSE SPST 10A 18V |
914 |
|
Ficha técnica |
G5Q | Tube | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 11.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
PR13-24V-450-1CRELAY GEN PURPOSE SPDT 10A 24V |
653 |
|
Ficha técnica |
PR13 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 18.8 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR2-24V-450-1CRELAY GEN PURPOSE SPDT 10A 24V |
573 |
|
Ficha técnica |
PR2 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 18.8 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
G5LE-1A4-VD DC12RELAY GEN PURPOSE SPST 10A 12V |
405 |
|
Ficha técnica |
G5LE | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | - | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
PR8-5V-450-1ARELAY GEN PURPOSE SPST 16A 5V |
340 |
|
Ficha técnica |
PR8 | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 89.9 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|

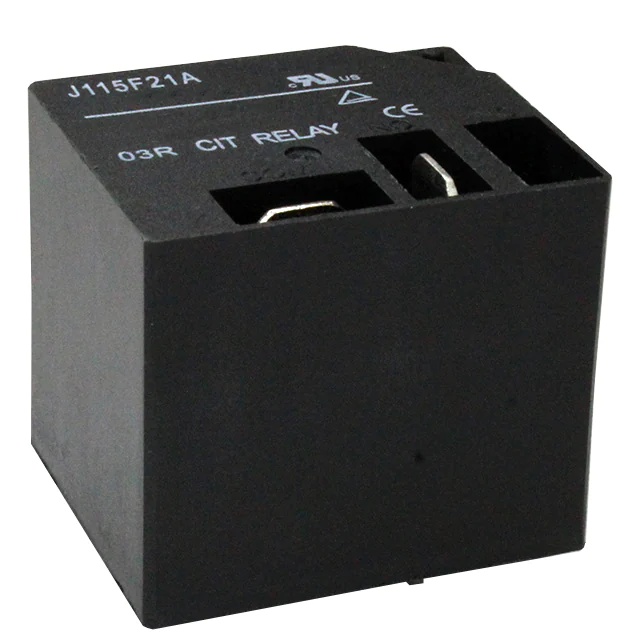

J115F21A24VDCS.9RELAY GEN PURPOSE SPST 40A 24V |
146 |
|
Ficha técnica |
J115F2 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J114AF1CHS12VDC.53RELAY GEN PURPOSE SPDT 16A 12V |
855 |
|
Ficha técnica |
J114AF | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
AKE112DMN00GRELAY GEN PURPOSE SPST 8A 12V |
1,930 |
|
Ficha técnica |
AKE | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 440VAC, 30VDC - Max | 3520VA, 240W | 16.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 0.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Alloy | - | General Purpose | - | - |
