Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J114AF1AS12VDC.53RELAY GEN PURPOSE SPST 16A 12V |
573 |
|
Ficha técnica |
J114AF | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J114AF1AHS12VDC.53RELAY GEN PURPOSE SPST 16A 12V |
150 |
|
Ficha técnica |
J114AF | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
1415899-9RELAY GEN PURPOSE SPDT 12A 9V |
2,832 |
|
Ficha técnica |
RZ, SCHRACK | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 44.4 mA | Non Latching | - | PC Pin | - | Class F | 6.3 VDC | 0.9 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
OJT-SS-112HM,00000RELAY GEN PURPOSE SPST 10A 12V |
8,321 |
|
Ficha técnica |
OJT, OEG | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Max | 2500VA | 90 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.25 VDC | 15 ms | 4 ms | -30°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV, VDE | General Purpose | - | - |
|
G5PZ-1A DC24RELAY GEN PURPOSE SPST 16A 24V |
1,071 |
|
Ficha técnica |
G5PZ | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | CQC, CSA, TUV, UR, VDE | General Purpose | - | - |
|
ALDP106WRELAY GEN PURPOSE SPST 5A 6V |
199 |
|
Ficha técnica |
ALDP | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 33.3 mA | Non Latching | - | PC Pin | - | Class E | 4.5 VDC | 0.3 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURuus, VDE | General Purpose | - | - |
|
AZ733W-2AE-9DERELAY GEN PURPOSE DPST 12A 9V |
879 |
|
Ficha técnica |
AZ733W | Tray | Active | Through Hole | 9VDC | DPST-NO (2 Form A) | 12 A | 277VAC, 250VDC - Max | 3324VA, 360W | 89.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 6.8 VDC | 0.9 VDC | 10 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
4-1415899-9RELAY GEN PURPOSE SPST 16A 12V |
6,501 |
|
Ficha técnica |
RZ, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|

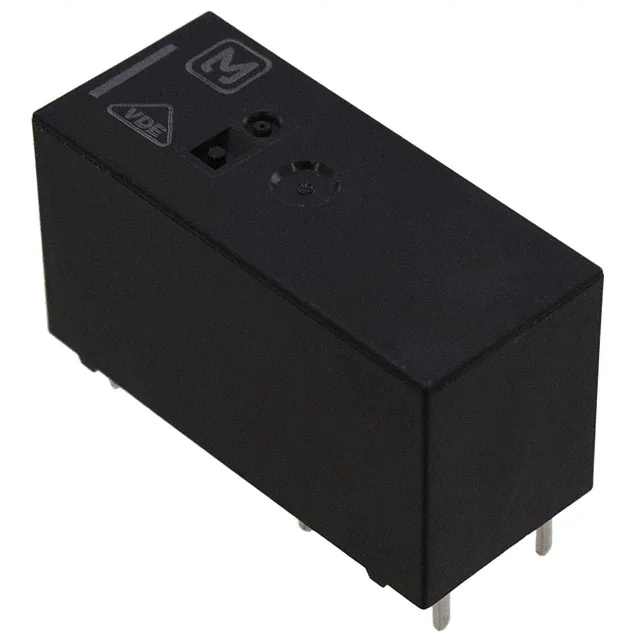

ALZ11B24WRELAY GEN PURPOSE SPDT 16A 24V |
6,185 |
|
Ficha técnica |
ALZ | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
J115F11A12VDCS.9RELAY GEN PURPOSE SPST 40A 12V |
450 |
|
Ficha técnica |
J115F1 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
OJS-SS-112HMF, 00000RELAY GEN PURPOSE SPST 10A 12V |
642 |
|
Ficha técnica |
OJS, OEG | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Max | 2500VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 15 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CQC, cURus, TUV | General Purpose | - | - |
|
|
OJS-SH-124HEF, 00000RELAY GEN PURPOSE SPST 16A 24V |
621 |
|
Ficha técnica |
OJS, OEG | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 1.2 VDC | 15 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CQC, cURus, TUV | General Purpose | - | - |
|
|
J115F11C24VDCSH.6RELAY GEN PURPOSE SPDT 40A 24V |
504 |
|
Ficha técnica |
J115F1 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
2-1415899-5RELAY GEN PURPOSE SPDT 16A 12V |
3,652 |
|
Ficha técnica |
RZH, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 105°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
G5LE-14-AP3 DC12RELAY GEN PURPOSE SPDT 10A 12V |
261 |
|
Ficha técnica |
G5LE | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JW1AFSN-DC12V-TV-FRELAY GEN PURPOSE SPST 10A 12V |
5,075 |
|
Ficha técnica |
JW | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 44 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
ALDP1F24WRELAY GEN PURPOSE SPST 5A 24V |
269 |
|
Ficha técnica |
ALDP | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 8.3 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURuus, VDE | General Purpose | - | - |
|
|
PR16-5V-540-2ARELAY GEN PURPOSE DPST 5A 5V |
963 |
|
Ficha técnica |
PR16 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 108.7 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 15 ms | 8 ms | -30°C ~ 70°C | Silver Alloy | cURus | General Purpose | - | - |
|

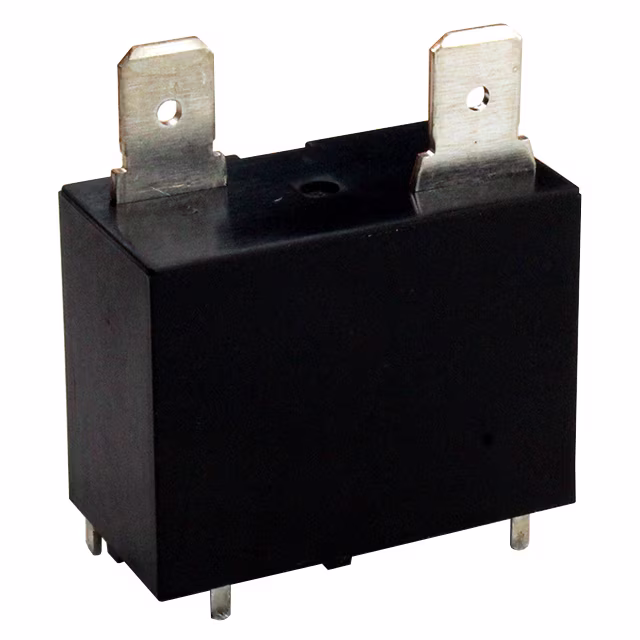

J120D1AS24VDCRELAY GEN PURPOSE SPST 20A 24V |
690 |
|
Ficha técnica |
J120D | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | - | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
PR16-12V-540-2ARELAY GEN PURPOSE DPST 5A 12V |
627 |
|
Ficha técnica |
PR16 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 44.9 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 15 ms | 8 ms | -30°C ~ 70°C | Silver Alloy | cURus | General Purpose | - | - |
