Sensores de pressão, transdutores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Aplicações | Tipo de pressão | Pressão operacional | Tipo de saída | Saída | Precisão | Voltagem - Alimentação | Tamanho da porta | Estilo de porta | Recursos | Estilo de Terminação | Pressão máxima | Temperatura operacional | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP5140SENSOR 14.5PSIG 0.12" 4.5V |
0 |
|
Ficha técnica |
PS-A | 6-DIP Module | Bulk | Last Time Buy | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
ADP5170SENSOR 145.04PSIG 0.12" 4.5V |
0 |
|
Ficha técnica |
PS-A | 6-DIP Module | Bulk | Last Time Buy | Board Mount | Vented Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 217.56PSI (1500kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
HEF12040PGDSNFAA01SENSOR 1204PSIS SPDT 9/16" |
0 |
|
Ficha técnica |
HE | Cylinder, Threaded | Bulk | Obsolete | - | Sealed Gauge | 1204PSI (8301.29kPa) | SPDT | - | - | 28V | Male - 9/16" (14.29mm) UNF | Threaded | - | Cable with Connector | 10000PSI (68947.57kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
24PCDFB6GSENSOR 30PSIC 0.25" .33V |
0 |
|
Ficha técnica |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 330 mV (10V) | ±1% | 10V ~ 12V | Male - 0.25" (6.35mm) Tube | Barbed | - | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
24PCDFD6GSENSOR 30PSIC .33V |
0 |
|
Ficha técnica |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 330 mV (10V) | ±1% | 10V ~ 12V | - | No Port | - | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
24PCFFA2GSENSOR 100PSIC 0.25" .225V |
0 |
|
Ficha técnica |
24PC | 4-DIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - 0.25" (6.35mm) Tube | Barbless | - | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
24PCFND6GSENSOR 100PSIC .225V |
0 |
|
Ficha técnica |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | - | No Port | - | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
24PCGND6GSENSOR 250PSIC .212V |
0 |
|
Ficha técnica |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 212 mV (10V) | ±1% | 10V ~ 12V | - | No Port | - | PC Pin | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
24PCGFA2GSENSOR 250PSIC 0.25" .212V |
0 |
|
Ficha técnica |
24PC | 4-DIP Module | Bulk | Active | Board Mount | Compound | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 212 mV (10V) | ±1% | 10V ~ 12V | Male - 0.25" (6.4mm) Tube | Barbless | - | - | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
NPA-300B-02WGSENSOR 0.073PSIG 0.12" 3V |
0 |
|
Ficha técnica |
NPA-300 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 0.07PSI (0.5kPa) | Analog Voltage | 0.5 V ~ 3 V | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NPA-300M-02WGSENSOR 0.73PSIG 3V |
0 |
|
Ficha técnica |
NPA-300 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 0.73PSI (5kPa) | Analog Voltage | 0.5 V ~ 3 V | ±1.5% | 3.135V ~ 3.465V | - | No Port | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NPA-300M-05WGSENSOR 0.18PSIG 3V |
0 |
|
Ficha técnica |
NPA-300 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 0.18PSI (1.25kPa) | Analog Voltage | 0.5 V ~ 3 V | ±1.5% | 3.135V ~ 3.465V | - | No Port | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NPA-500M-02WGSENSOR 0.73PSIG 4.5V |
0 |
|
Ficha técnica |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 0.73PSI (5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NPA-500M-05WGSENSOR 0.18PSIG 4.5V |
0 |
|
Ficha técnica |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 0.18PSI (1.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
SSCSNBN400MGAA5SENSOR 5.8PSIG 0.19" 4.5V 4SIP |
0 |
|
Ficha técnica |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 5.8PSI (40kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

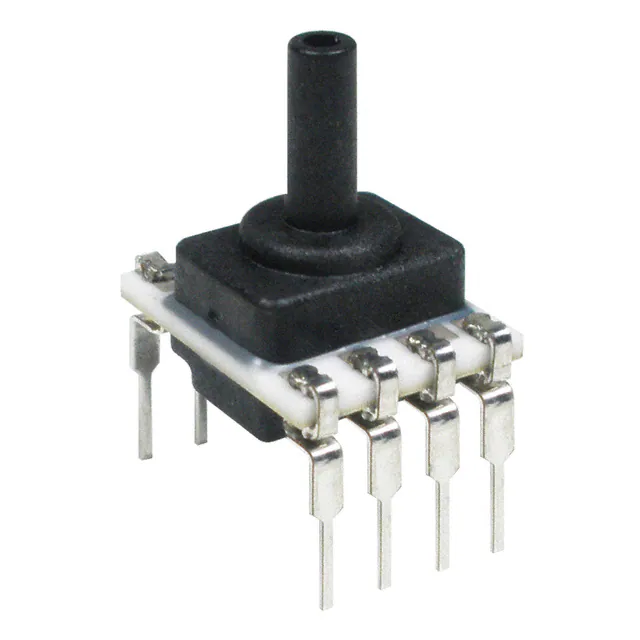

SSCDLNT150PAAA5SENSOR 150PSIA 8DIP |
0 |
|
- |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | Analog Voltage | - | ±0.25% | 4.75V ~ 5.25V | - | Barbless | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
MS121-00000U-500PGSENSOR 500PSIG O-RING 100MV 2' |
0 |
|
Ficha técnica |
MSP-100 (100W) | Cylinder, Threaded | Bulk | Active | - | Vented Gauge | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (5V) | - | 5V ~ 14V | Male - 0.36" (9.14mm) O-Ring | Barbed | Temperature Compensated | Cable 2' | 750PSI (5171.07kPa) | 0°C ~ 55°C | - | - | - | - |
|

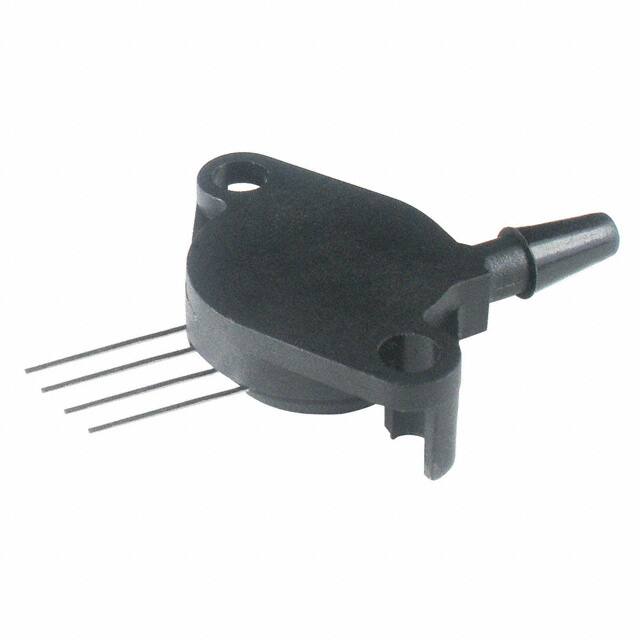

SSCSHNT060PAAA5SENSOR 60PSIA 0.19" 4.5V 4SIP |
0 |
|
Ficha técnica |
TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 60PSI (413.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
DLHR-L02G-E1BD-C-NAV8SENSOR 0.07PSID 0.09" 18BIT 8DIP |
0 |
|
Ficha técnica |
DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential/Vented Gauge | 0.07PSI (0.5kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDLND001PG2A3SENSOR 1PSIG 0.1" 12BIT 8DIP |
0 |
|
Ficha técnica |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
