Sensores de pressão, transdutores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Aplicações | Tipo de pressão | Pressão operacional | Tipo de saída | Saída | Precisão | Voltagem - Alimentação | Tamanho da porta | Estilo de porta | Recursos | Estilo de Terminação | Pressão máxima | Temperatura operacional | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCMRND001BA2A5SENSOR 14.5PSIA 0.08" 12BIT 8SMD |
0 |
|
Ficha técnica |
TruStability® HSC | 8-SMD, J-Lead, Side Port | Bulk | Obsolete | Board Mount | Absolute | 14.5PSI (100kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 29.01PSI (200kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
5 CMH2O-D1-P4V-MINISENSOR 0.07PSID 0.08" 4.5V |
0 |
|
Ficha técnica |
MAMP | 4-SIP Module | Tube | Active | Board Mount | Differential | -0.003PSI ~ 0.07PSI (-0.02kPa ~ 0.49kPa) | Analog Voltage | 0.18 V ~ 4.5 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 0.71PSI (4.9kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
5 INCH-D1-P4V-MINISENSOR 0.18PSID 0.08" 4.25V |
0 |
|
Ficha técnica |
MAMP | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±7.23PSI (±49.83kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
5 INCH-D2-P4V-MINISENSOR 0.18PSID 0.08" 4.25V |
0 |
|
Ficha técnica |
MAMP | 4-SIP Module | Tube | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±7.23PSI (±49.83kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1 INCH-G-P4V-MINISENSOR 0.04PSIG 0.08" 4.25V |
0 |
|
Ficha técnica |
MAMP | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.04PSI (0.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
HSCDANT001PG3A5SENSOR 1PSIG 0.19" 12BIT 8DIP |
0 |
|
Ficha técnica |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
4 INCH-D-CGRADE-MVSENSOR 0.15PSID 0.19" .04V |
0 |
|
Ficha técnica |
AXCX | 6-SIP Module | Tube | Active | Board Mount | Differential | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (12V) | ±1% | 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 1PSI (6.89kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
HSCMLNN015PD2A5TTRUSTABILITY PRESSURE SENSOR |
0 |
|
Ficha técnica |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | I2C | 12b | ±0.25% | 5V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | J Lead | - | -20°C ~ 80°C | - | - | Surface Mount | 8-SMT |
|
|
50089094-05PRESSURE SWITCH BRAKE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
32329549-001-05SWITCH, PRESSURE, BRAKE |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
32346975-001-015000 PRESSURE SWITCH |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

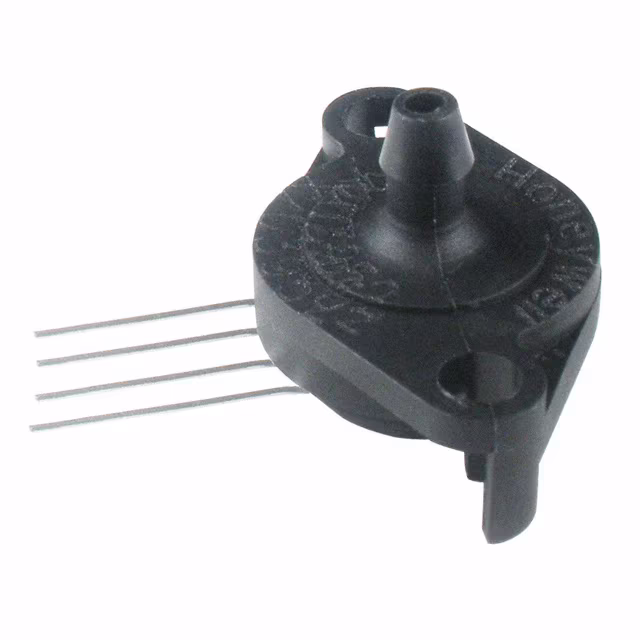

HSCSFNT400MGAA5SENSOR 5.8PSIG 0.19" 4.5V 4SIP |
0 |
|
Ficha técnica |
TruStability® HSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 5.8PSI (40kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
24PCEFJ6GH03SENSOR 0.50PSIG 0.07" .035V |
0 |
|
- |
24PC | 4-SIP Module | Bulk | Active | - | Gauge | 0.50PSI (3.45kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (10V) | ±1% | 2.5V ~ 12V | Male - 0.07" (1.78mm) Tube | Needle | - | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SSCMANT150PGAA5TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
24PCAFJ6GH01PRESSURE SENSOR |
0 |
|
- |
24PC | 4-SIP, Side Port | Bulk | Active | Board Mount | Absolute | 1PSI (6.89kPa) | Wheatstone Bridge | - | - | 2.5V ~ 12V | Male - 0.07" (1.78mm) Tube | Barbed | - | PC Pins | 200PSI (1379kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
24PCAFA6GSENSOR 1PSIC 0.2" .045V |
0 |
|
Ficha técnica |
24PC | 4-SIP Module | Tray | Active | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 45 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube | Barbless | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
24PCBFA2GSENSOR 5PSIC 0.25" .115V |
0 |
|
Ficha técnica |
24PC | 4-DIP Module | Bulk | Active | Board Mount | Compound | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 115 mV (10V) | ±1% | 10V ~ 12V | Male - 0.25" (6.4mm) Tube | Barbless | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
24PCCFH6GSENSOR 15PSIC M5 .225V |
0 |
|
Ficha técnica |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - M5 | Threaded | - | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
83276-B00000250-05PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSCDANN060PASA5SENSOR 60PSIA 0.19" 12BIT 8DIP |
0 |
|
Ficha técnica |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Absolute | 60PSI (413.69kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
