Estênceis de solda, gabaritos
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Número de posições | Passo | Dimensão externa | Dimensão interna | Almofada Central Térmica | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPC0255-SDFN-6 (0.65 MM PITCH, 2.5 X 2.5 |
7 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | DFN | 6 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.098" L x 0.098" W (2.50mm x 2.50mm) | - | Stainless Steel |
|

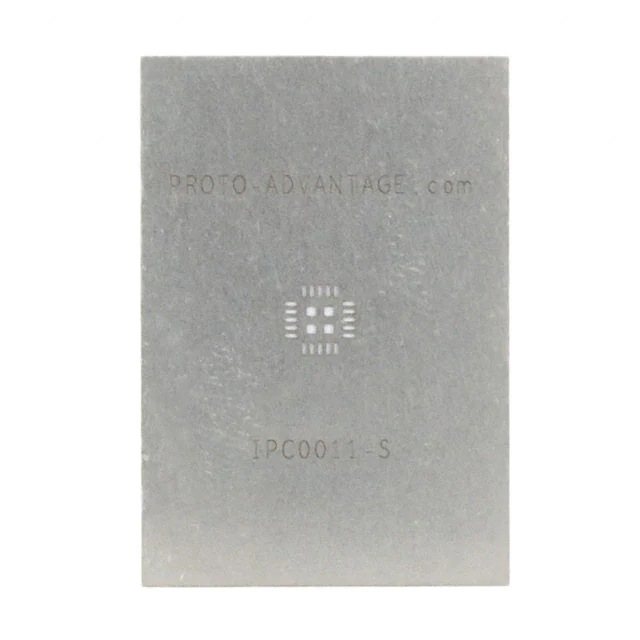

IPC0011-SQFN-20 STENCIL |
6 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 20 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" L x 0.083" W (2.10mm x 2.10mm) | Stainless Steel |
|

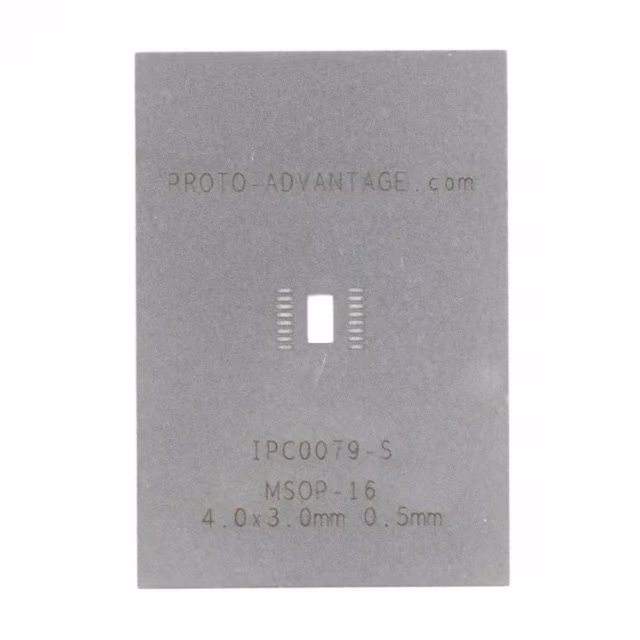

IPC0079-SMSOP-16 STENCIL |
6 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | MSOP | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.118" L x 0.063" W (3.00mm x 1.60mm) | Stainless Steel |
|
|
IPC0261-SQFN-12 (0.4 MM PITCH, 1.6 X 1.6 |
6 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN | 12 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | - | Stainless Steel |
|
|
FPC100P040-DPT-SFPC/FFC SMT CONNECTOR STENCIL |
7 |
|
Ficha técnica |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 40 | 0.039" (1.00mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | - | Stainless Steel |
|
|
GEN-DR035-P40-SGENERIC DUAL ROW 0.35MM PITCH 40 |
10 |
|
Ficha técnica |
- | Bulk | Active | - | 40 | 0.014" (0.35mm) | - | 0.118" L x 0.007" W (3.00mm x 0.18mm) | - | Stainless Steel |
|
|
GEN-DR035-P60-SGENERIC DUAL ROW 0.35MM PITCH 60 |
10 |
|
Ficha técnica |
- | Bulk | Active | - | 60 | 0.014" (0.35mm) | - | 0.118" L x 0.007" W (3.00mm x 0.18mm) | - | Stainless Steel |
|
|
DR100P69-SDUAL ROW 1.00MM PITCH (STAGGERED |
10 |
|
Ficha técnica |
Proto-Advantage DR | Bulk | Active | - | 69 | 0.039" (1.00mm) | - | - | 0.118" L x 0.024" W (3.00mm x 0.60mm) | Stainless Steel |
|
|
GEN-DR150-P40-SGENERIC DUAL ROW 1.5 MM PITCH 40 |
9 |
|
Ficha técnica |
- | Bulk | Active | - | 40 | 0.059" (1.50mm) | - | 0.354" L x 0.038" W (9.00mm x 0.97mm) | - | Stainless Steel |
|

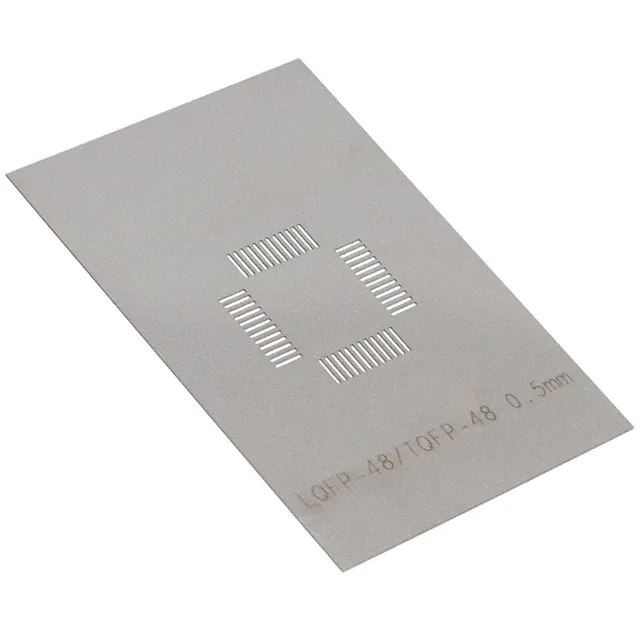

PA0094-SSTENCIL LQFP-48 .5MM |
4 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | TQFP | 48 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | Stainless Steel |
|
ST0002-SPRACTICE KIT STENCIL FOR ST0002 |
5 |
|
Ficha técnica |
- | Bulk | Active | - | - | - | 5.000" L x 4.000" W (127.00mm x 101.60mm) | - | - | Stainless Steel |
|

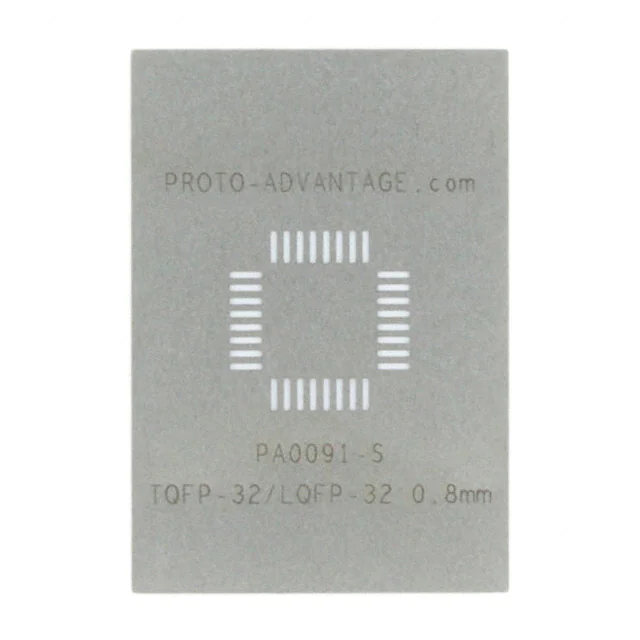

PA0091-SSTENCIL TQFP-32 .8MM |
1 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | TQFP | 32 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | Stainless Steel |
|

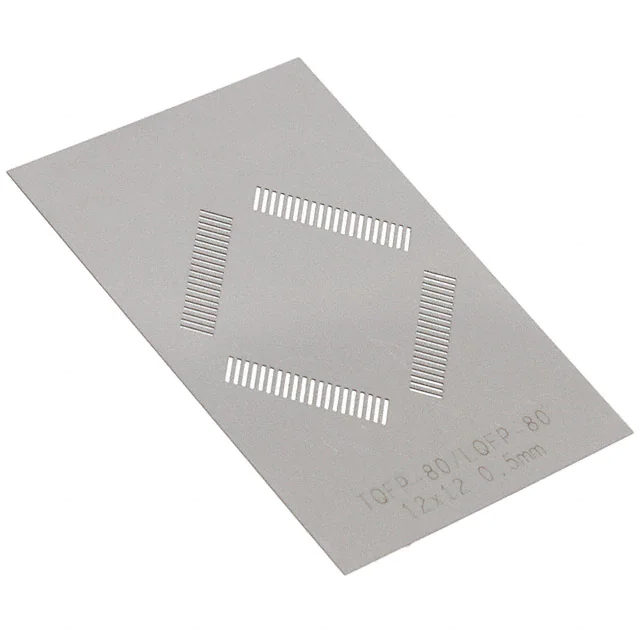

PA0110-SSTENCIL TQFP-80 .5MM |
1 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | TQFP | 80 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | Stainless Steel |
|
PA0093-SSTENCIL LQFP-44 .8MM |
1 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | TQFP | 44 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | Stainless Steel |
|

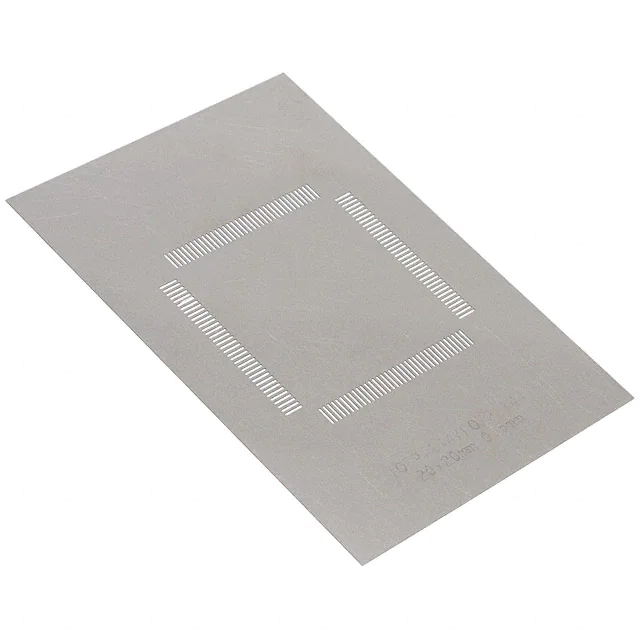

PA0188-SSTENCIL TQFP-144 .5MM |
1 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | TQFP | 144 | 0.020" (0.50mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 0.787" L x 0.787" W (20.00mm x 20.00mm) | - | Stainless Steel |
|

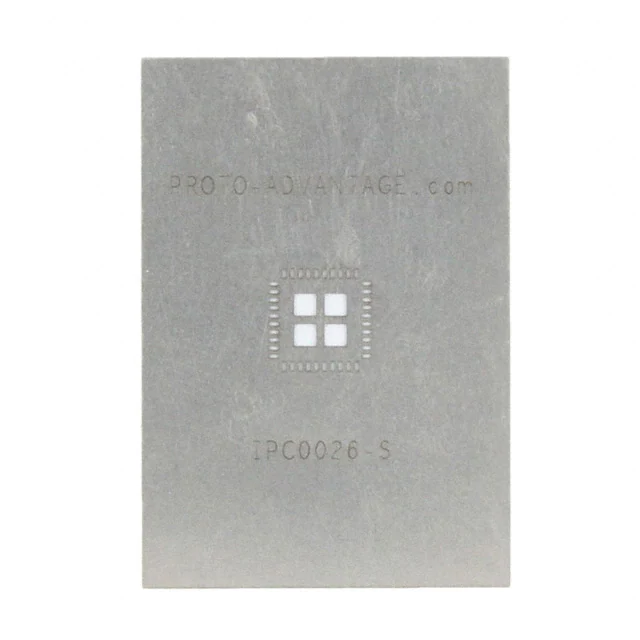

IPC0026-SQFN-40 STENCIL |
1 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 40 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" L x 0.161" W (4.10mm x 4.10mm) | Stainless Steel |
|
NDR040P040-SNARROW DUAL ROW 0.4MM PITCH 40-P |
1 |
|
Ficha técnica |
Proto-Advantage NDR | Bulk | Active | - | 40 | 0.016" (0.40mm) | - | - | - | Stainless Steel |
|
NDR050P060-SNARROW DUAL ROW 0.5MM PITCH 60-P |
1 |
|
Ficha técnica |
Proto-Advantage NDR | Bulk | Active | - | 60 | 0.020" (0.50mm) | - | - | - | Stainless Steel |
|
|
COMP-TOP-STENCIL-HELP-1COMPACT SERIES ADAPTER TOP SIDE |
4 |
|
Ficha técnica |
- | Bulk | Active | - | - | - | - | - | - | Stainless Steel |
|
BGA0019-SBGA-36 (0.4 MM PITCH, 6 X 6 GRID |
5 |
|
Ficha técnica |
Proto-Advantage BGA | Bulk | Active | BGA | 36 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
