Estênceis de solda, gabaritos
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Número de posições | Passo | Dimensão externa | Dimensão interna | Almofada Central Térmica | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GEN-DR040-P60-SGENERIC DUAL ROW 0.4MM PITCH 60- |
5 |
|
Ficha técnica |
Proto-Advantage GEN | Bulk | Active | - | 60 | 0.016" (0.40mm) | - | - | - | Stainless Steel |
|

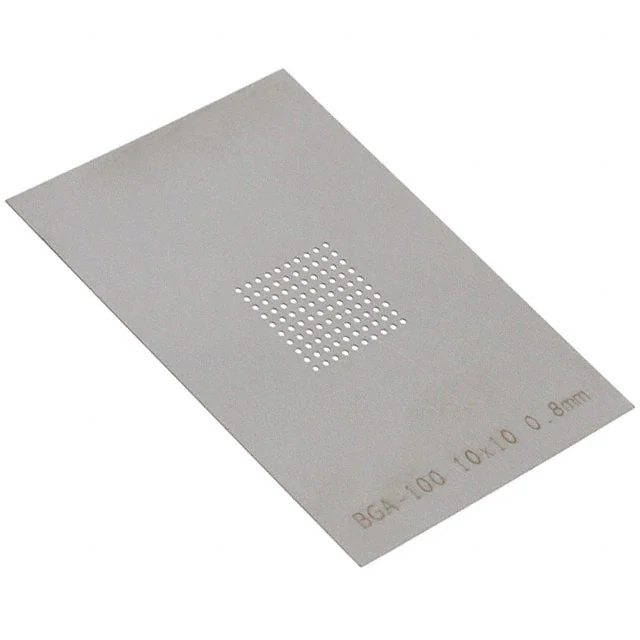

BGA0001-SSTENCIL BGA-100 .8MM |
4 |
|
Ficha técnica |
Proto-Advantage BGA | Bulk | Active | BGA | 100 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
BGA0023-SBGA-100 (0.4 MM PITCH, 10 X 10 G |
2 |
|
Ficha técnica |
Proto-Advantage BGA | Bulk | Active | BGA | 100 | 0.016" (0.40mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | - | - | Stainless Steel |
|
BGA0034-SBGA-676 (1.0 MM PITCH, 26 X 26 G |
2 |
|
Ficha técnica |
Proto-Advantage BGA | Bulk | Active | BGA | 676 | 0.039" (1.00mm) | 2.600" L x 1.800" W (66.04mm x 45.72mm) | 1.024" L x 1.024" W (26.00mm x 26.00mm) | - | Stainless Steel |
|

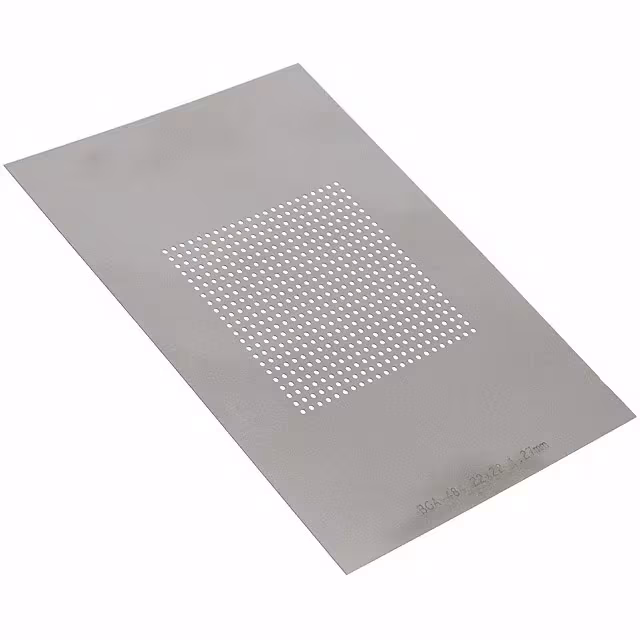

BGA0009-SSTENCIL BGA-484 1.27MM |
1 |
|
Ficha técnica |
Proto-Advantage BGA | Bulk | Active | BGA | 484 | 0.050" (1.27mm) | 2.600" L x 1.800" W (66.04mm x 45.72mm) | - | - | Stainless Steel |
|
BGA0029-SBGA-36 (0.35 MM PITCH, 6 X 6 GRI |
1 |
|
Ficha técnica |
Proto-Advantage BGA | Bulk | Active | BGA | 36 | 0.014" (0.35mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
BGA0030-SBGA-36 (0.5 MM PITCH, 6 X 6 GRID |
1 |
|
Ficha técnica |
Proto-Advantage BGA | Bulk | Active | BGA | 36 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

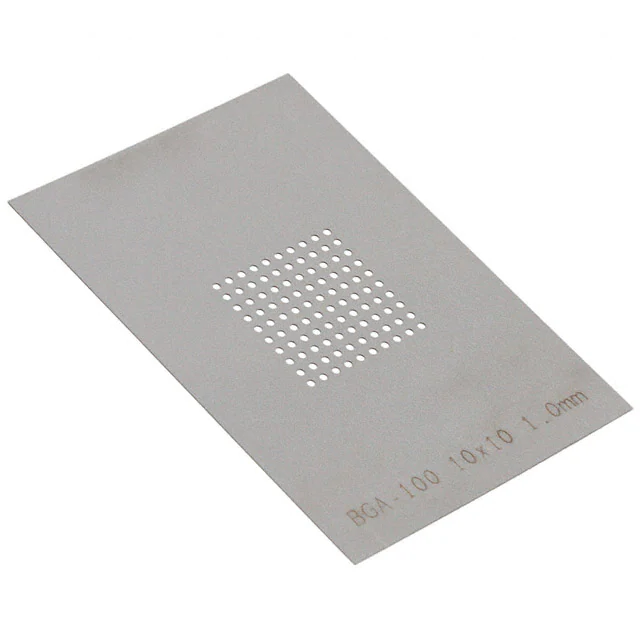

BGA0004-SSTENCIL BGA-100 1MM |
0 |
|
Ficha técnica |
Proto-Advantage BGA | Bulk | Active | BGA | 100 | 0.039" (1.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
BGA0028-SBGA-36 STAINLESS STEEL STENCIL |
3 |
|
Ficha técnica |
Proto-Advantage BGA | Bulk | Active | BGA | 36 | 0.012" (0.30mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

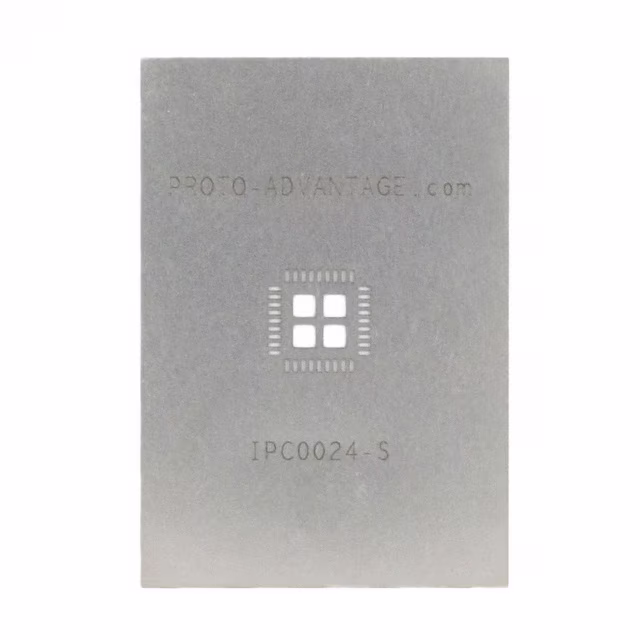

IPC0024-SQFN-36 STENCIL |
5 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 36 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" L x 0.161" W (4.10mm x 4.10mm) | Stainless Steel |
|

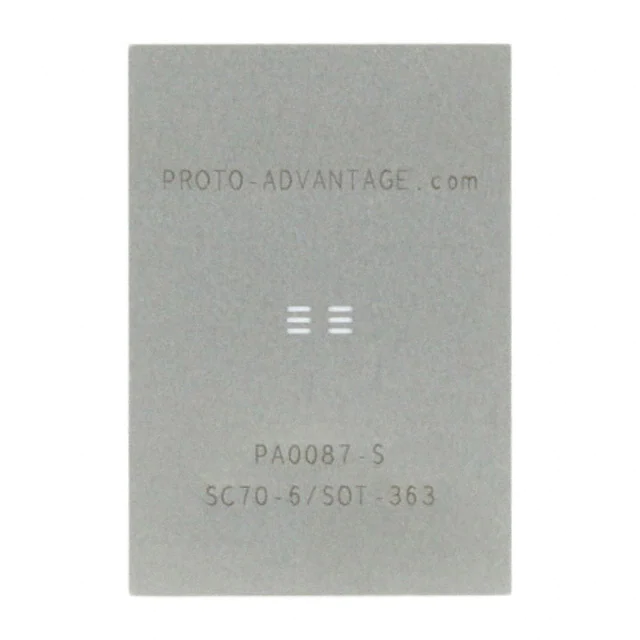

PA0087-SSC70-6/SOT-363 STENCIL |
2 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | SOT/SC | 6 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

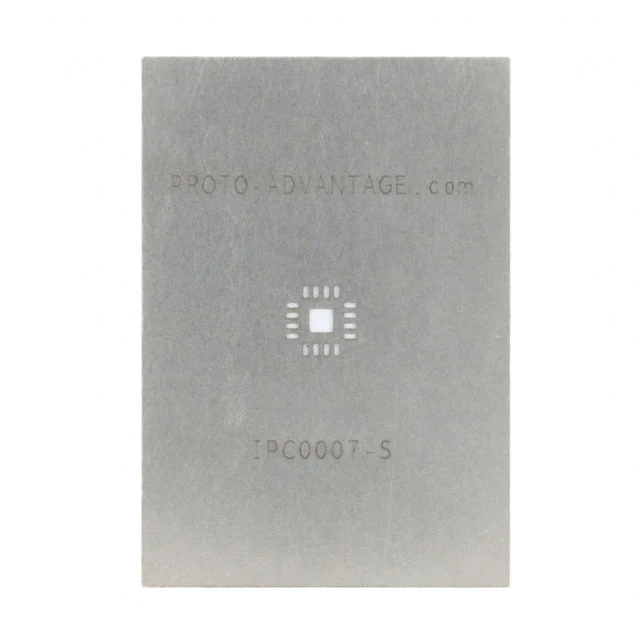

IPC0007-SQFN-16 STENCIL |
1 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 16 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" L x 0.083" W (2.10mm x 2.10mm) | Stainless Steel |
|
FPC050P040-DPT-SFPC/FFC SMT CONNECTOR STENCIL |
2 |
|
Ficha técnica |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 40 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
BGA0036-SBGA-169 (0.75MM PITCH, 13X13 GRI |
1 |
|
Ficha técnica |
Proto-Advantage BGA | Bulk | Active | BGA | 169 | 0.029" (0.75mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - | Stainless Steel |
|

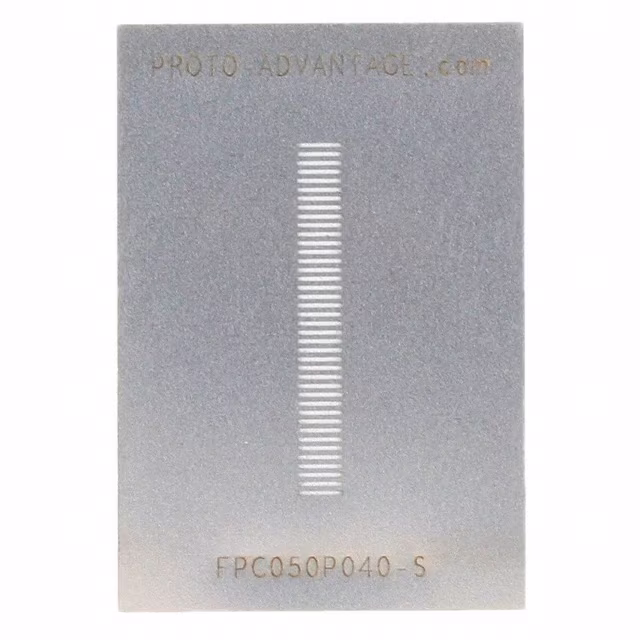

FPC050P040-SFPC/FFC SMT CONN STENCIL |
1 |
|
Ficha técnica |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 40 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 1.094" L x 0.157" W (27.80mm x 4.00mm) | Stainless Steel |
|

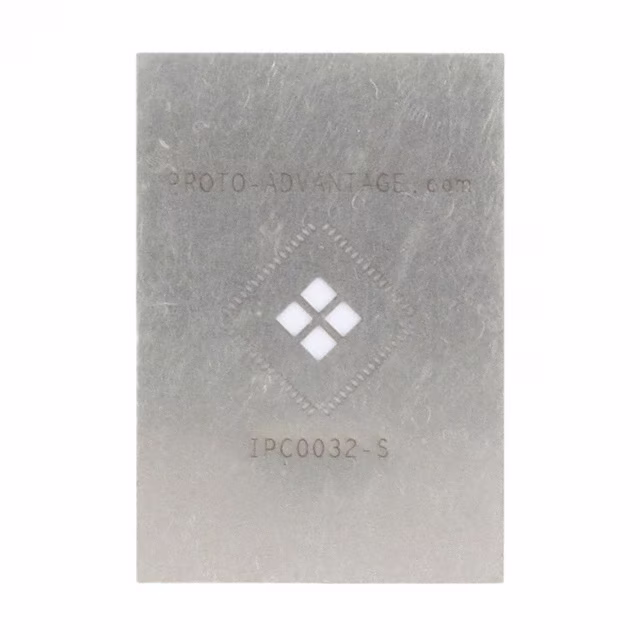

IPC0032-SQFN-64 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 64 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.354" L x 0.354" W (9.00mm x 9.00mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) | Stainless Steel |
|
PA0223-STQFP-100 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | TQFP | 100 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | Stainless Steel |
|

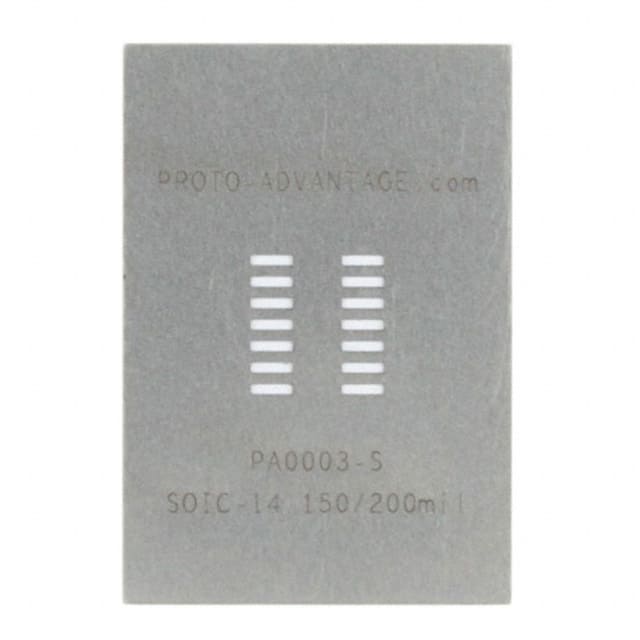

PA0003-SSOIC-14 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage PA | Bulk | Active | SOIC | 14 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

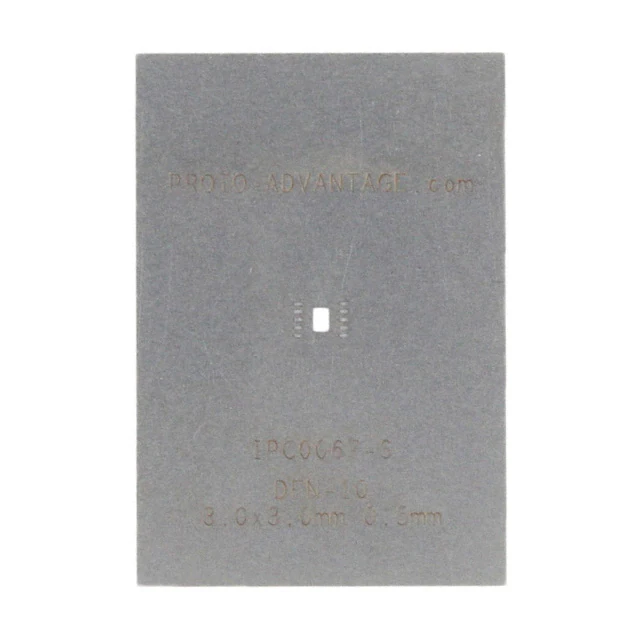

IPC0067-SDFN-10 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | DFN | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | Stainless Steel |
|

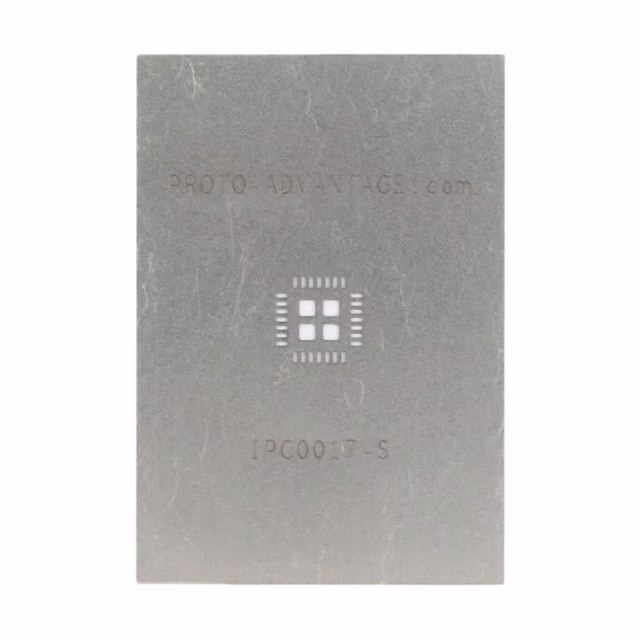

IPC0017-SQFN-28 STENCIL |
0 |
|
Ficha técnica |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 28 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.122" L x 0.122" W (3.10mm x 3.10mm) | Stainless Steel |
