Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65879B0000R087FERRITE CORE PQ 4.8UH N87 2PCS |
121 |
|
Ficha técnica |
PQ32/30 | Box | Active | PQ | PQ 32 x 30 | N87 | - | 4.8 µH | -20%, +30% | Ungapped | 1700.0 | 2200 | 0.441 | 67.8 | 153.8 | 127.5 | 10440.0 | Uncoated | 0.597" (15.17mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
|
PQ35/20-3C95FERRITE CORE PQ 3C95 2PC SET |
377 |
|
Ficha técnica |
- | Bulk | Active | PQ | PQ 35 x 20 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 1.421" (36.10mm) | 1.024" (26.00mm) |
|
|
PQ35/20-3C97FERRITE CORE PQ 3C97 2PC SET |
226 |
|
Ficha técnica |
- | Bulk | Active | PQ | PQ 35 x 20 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 1.421" (36.10mm) | 1.024" (26.00mm) |
|
B66291K0000X149FERRITE CORE I 5.9UH N49 |
219 |
|
Ficha técnica |
I43/4/28 | Bag | Active | I | I 43 x 4 x 28 | N49 | - | 5.9 µH | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
|
PQ32/30-3C97FERRITE CORE PQ 3C97 2PC SET |
203 |
|
Ficha técnica |
- | Bulk | Active | PQ | PQ 32 x 30 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.193" (30.30mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|
TX39/20/13-3E6FERRITE CORE TOROID |
155 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 39 x 20 x 13 | - | 1.567" (39.80mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.535" (13.60mm) | - | - |
|
B64290L0659X035FERRITE CORE TOROID 8.2UH T35 |
228 |
|
Ficha técnica |
TX40/24/16 | Box | Active | Toroid | - | T35 | 1.646" (41.80mm) | 8.2 µH | ±25% | Ungapped | - | 5000 | 0.77 | 96.29 | 125.3 | 125.3 | 12070.0 | Epoxy | 0.677" (17.20mm) | - | - |
|
|
B65879B0000R049FERRITE CORE PQ 3.45UH N49 2PCS |
131 |
|
Ficha técnica |
PQ32/30 | Box | Active | PQ | PQ 32 x 30 | N49 | - | 3.45 µH | -20%, +30% | Ungapped | 1210.0 | 1500 | 0.441 | 67.8 | 153.8 | 127.5 | 10440.0 | Uncoated | 0.597" (15.17mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
|

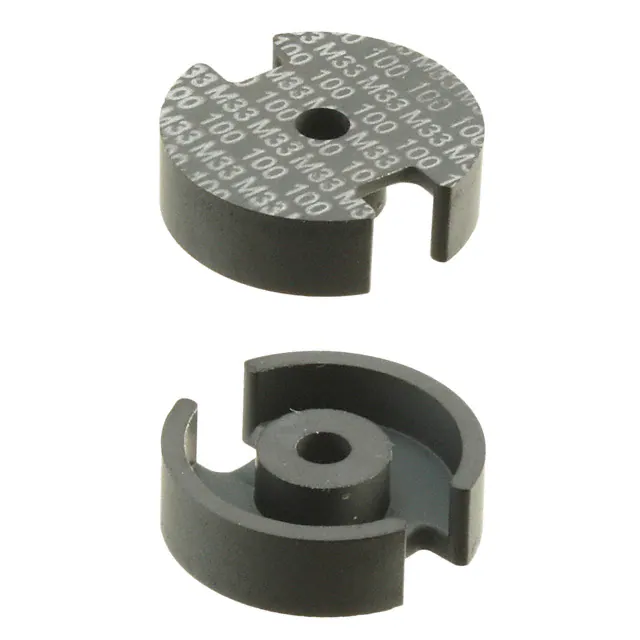

B65651T0100A033FERRITE CORE P 100NH M33 2PCS |
1,783 |
|
Ficha técnica |
P18/11 | Box | Active | P (Pot Core) | P 18 x 11 | M33 | 0.724" (18.40mm) | 100 nH | ±3% | Gapped | 48.0 | 750 | 0.6 | 25.9 | 43.0 | - | 1114.0 | Uncoated | 0.209" (5.30mm) | - | - |
|
EC70/34/17-3C94FERRITE CORE EC 3C94 |
5,196 |
|
Ficha técnica |
- | Bulk | Active | EC | EC 70 x 34 x 17 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.358" (34.50mm) | 2.823" (71.70mm) | 0.646" (16.40mm) |
|
B64290A0659X830FERRITE CORE TOROID 7UH N30 |
220 |
|
Ficha técnica |
T40/24/16 | Box | Active | Toroid | R 40 x 24 x 16 | N30 | 1.575" (40.00mm) | 7 µH | ±25% | Ungapped | - | 4300 | 0.77 | 96.29 | 125.3 | - | 12070.0 | Uncoated | 0.630" (16.00mm) | - | - |
|
B65877A0000R095FERRITE CORE PQ 5.7UH N95 2PCS |
274 |
|
Ficha técnica |
PQ26/25 | Box | Active | PQ | PQ 26 x 25 | N95 | - | 5.7 µH | -20%, +30% | Ungapped | 1980.0 | 2000 | 0.44 | 53.6 | 122.0 | 108.7 | 6530.0 | Uncoated | 0.487" (12.38mm) | 1.043" (26.50mm) | 0.748" (19.00mm) |
|
PLT58/38/4-3F36FERRITE CORE PLT 3F36 |
563 |
|
Ficha técnica |
- | Bulk | Active | PLT | PLT 58 x 38 x 4 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 2.299" (58.40mm) | 1.500" (38.10mm) |
|
B64290L0022X037FERRITE CORE TOROID 7UH T37 |
1,316 |
|
Ficha técnica |
TX42/26/13 | Box | Active | Toroid | - | T37 | 1.717" (43.60mm) | 7 µH | ±25% | Ungapped | - | 6000 | 1.08 | 103.0 | 95.75 | - | 9862.0 | Epoxy | 0.535" (13.60mm) | - | - |
|
E56/24/19-3C94FERRITE CORE E 3C94 |
865 |
|
Ficha técnica |
- | Bulk | Active | E | E 56 x 24 x 19 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.929" (23.60mm) | 2.209" (56.10mm) | 0.740" (18.80mm) |
|
B66461K0000X197FERRITE CORE I N97 |
442 |
|
Ficha técnica |
I43/4/28 | Bag | Active | I | I 43 x 4 x 28 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|

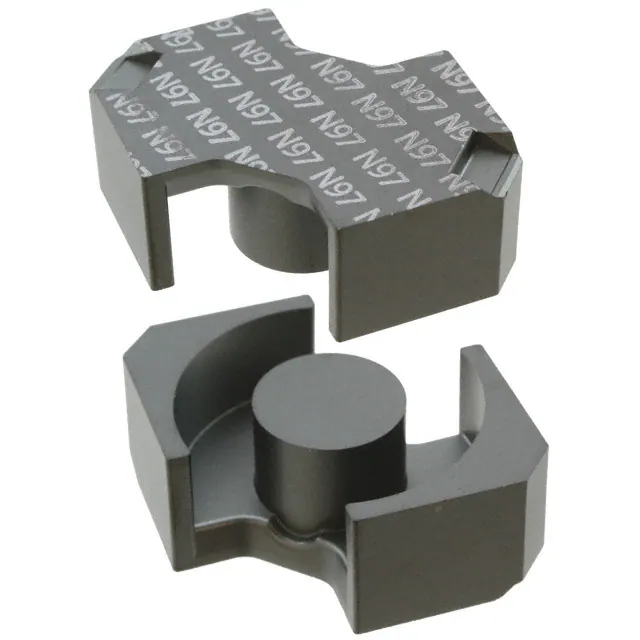

B65815E0000R097FERRITE CORE RM 5.3UH N97 2PCS |
204 |
|
Ficha técnica |
RM12 | Box | Active | RM | RM 12 | N97 | - | 5.3 µH | -20%, +30% | Ungapped | 1640.0 | 2300 | 0.39 | 57.0 | 146.0 | 125.0 | 8320.0 | Uncoated | 0.484" (12.30mm) | 1.480" (37.60mm) | 0.634" (16.10mm) |
|

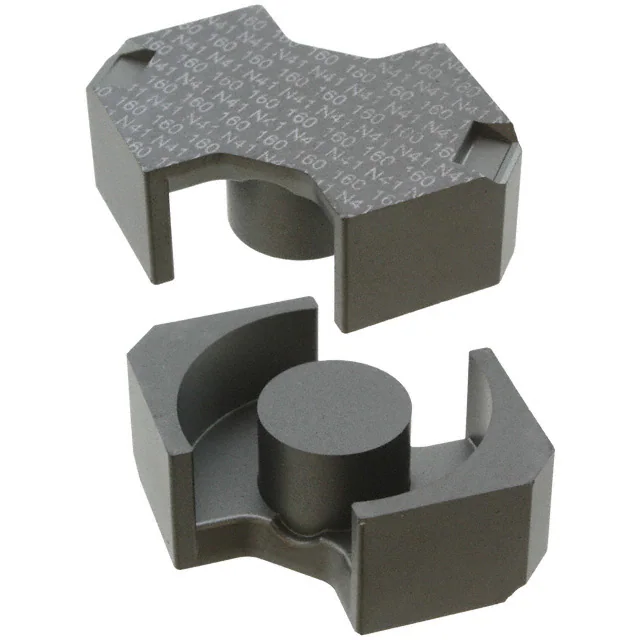

B65815E0160A041FERRITE CORE RM 160NH N41 2PCS |
373 |
|
Ficha técnica |
RM12 | Box | Active | RM | RM 12 | N41 | - | 160 nH | ±3% | Gapped | 50.0 | 2800 | 0.39 | 57.0 | 146.0 | 125.0 | 8320.0 | Uncoated | 0.484" (12.30mm) | 1.480" (37.60mm) | 0.634" (16.10mm) |
|
|
HF60T38X14X22FERRITE CORE TOROID |
360 |
|
Ficha técnica |
T | Tray | Active | Toroid | - | - | - | - | - | Ungapped | - | 1600 | - | - | - | - | - | Epoxy | 0.551" (14.00mm) | - | - |
|
|
B65877B0000R049FERRITE CORE PQ 3.85UH N49 2PCS |
194 |
|
Ficha técnica |
PQ26/25 | Box | Active | PQ | PQ 26 x 20 | N49 | - | 3.85 µH | -20%, +30% | Ungapped | 1110.0 | 1500 | 0.363 | 44.4 | 122.3 | 108.8 | 5435.0 | Uncoated | 0.397" (10.08mm) | 1.043" (26.50mm) | 0.748" (19.00mm) |
