Dissipadores de Calor
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Pacote resfriado | Método de fixação | Forma | Comprimento | Largura | Diâmetro | Altura da aleta | Dissipação de energia @ Aumento de temperatura | Resistência térmica @ Fluxo de ar forçado | Resistência térmica @ Natural | Material | Acabamento do material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

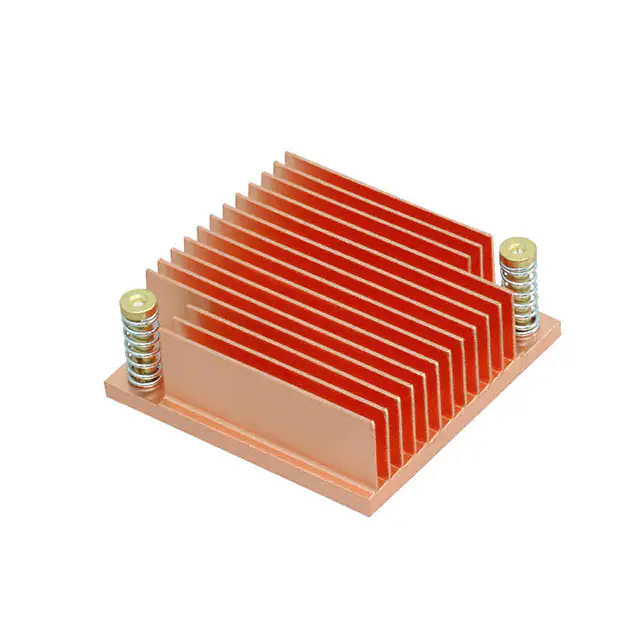

342941COPPER HEATSINK 40X40.5X13.5MM |
143 |
|
Ficha técnica |
- | Tray | Active | Top Mount, Skived | BGA | Push Pin | Square, Fins | 1.594" (40.50mm) | 1.575" (40.00mm) | - | 0.531" (13.50mm) | - | 2.50°C/W @ 200 LFM | 13.30°C/W | Copper | AavSHIELD 3C |
|

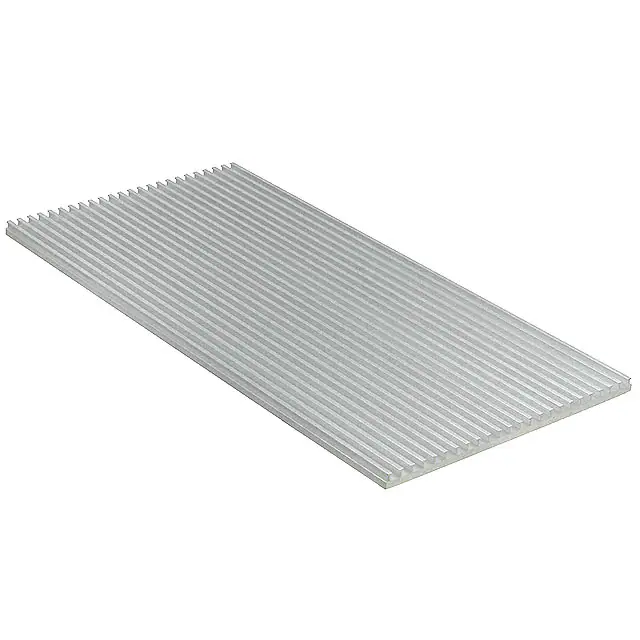

ATS-EXL78-300-R0HEATSINK AL6063 300X139X7.6MM |
227 |
|
Ficha técnica |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 5.748" (146.00mm) | - | 0.299" (7.60mm) | - | 4.40°C/W @ 200 LFM | 12.00°C/W | Aluminum | Degreased |
|
342949COPPER HEATSINK 80X80X12MM |
161 |
|
Ficha técnica |
- | Tray | Active | Top Mount, Skived | BGA | Push Pin | Square, Fins | 3.150" (80.00mm) | 3.150" (80.00mm) | - | 0.472" (12.00mm) | - | 1.20°C/W @ 200 LFM | 5.10°C/W | Copper | AavSHIELD 3C |
|
465KHEAT SINK C2026 REV A |
92 |
|
Ficha técnica |
465 | Bulk | Active | Board Level, Extrusion | Stud Mounted Diode | Press Fit | Rectangular, Fins | 5.000" (127.00mm) | 4.000" (101.60mm) | - | 4.000" (101.60mm) | 50.0W @ 38°C | 0.30°C/W @ 500 LFM | 0.76°C/W | Aluminum | Black Anodized |
|
122547HEATSINK EXTRUSION 15.25" |
41 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | Power Modules | - | Rectangular, Fins | 15.250" (387.35mm) | 3.976" (101.00mm) | - | 1.880" (47.75mm) | - | - | - | Aluminum | - |
|
511-9UHEATSINK FOR PWR MOD/IGBT/RELAY |
230 |
|
Ficha técnica |
511 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 9.000" (228.60mm) | 5.210" (132.33mm) | - | 2.410" (61.21mm) | - | - | 0.56°C/W | Aluminum | - |
|
ATS-EXL100-300-R0HEATSINK AL6063 300X130X33.5MM |
28 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 5.118" (130.00mm) | - | 1.319" (33.50mm) | - | 0.98°C/W @ 200 LFM | 4.26°C/W | Aluminum | Degreased |
|
783452F00000G78345 EXTRUSION 1.54X2.68"X4.1' |
281 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | - | Rectangular, Pin Fins | 49.500" (1257.30mm) | 2.677" (68.00mm) | - | 1.535" (39.00mm) | - | 1.00°C/W @ 400 LFM | - | Aluminum | - |
|
1255209.75WX12" EXTRUSION 16473 XX5384 |
26 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 9.750" (247.65mm) | - | 2.280" (57.91mm) | - | - | 0.19°C/W | Aluminum | - |
|
122259HEATSINK 16639 PROFILE 12" |
83 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 7.875" (200.02mm) | - | 1.312" (33.32mm) | - | - | - | Aluminum | Unfinished |
|
ATS-57000-C1-R0HEAT SINK 56MM X 56MM X 52MM |
29 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | LGA | Push Pin | Square, Fins | 2.205" (56.00mm) | 2.205" (56.00mm) | - | 2.047" (52.00mm) | - | 0.51°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
511-9MHEATSINK FOR PWR MOD/IGBT/RELAY |
47 |
|
Ficha técnica |
511 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 9.000" (228.60mm) | 5.210" (132.33mm) | - | 2.350" (59.69mm) | - | - | 0.56°C/W | Aluminum | - |
|
1277397.62" WIDE X 12" FLATBACK W/MOUN |
28 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 7.620" (193.55mm) | - | 3.075" (78.11mm) | - | - | 0.17°C/W | Aluminum | - |
|
510-6MHEATSINK FOR PWR MOD/IGBT/RELAY |
28 |
|
Ficha técnica |
510 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 6.000" (152.40mm) | 7.380" (187.45mm) | - | 3.106" (78.89mm) | - | - | 0.38°C/W | Aluminum | - |
|
511-12UHEATSINK FOR PWR MOD/IGBT/RELAY |
37 |
|
Ficha técnica |
511 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.210" (132.33mm) | - | 2.410" (61.21mm) | - | - | 0.45°C/W | Aluminum | - |
|
ATS-EXL1-1220-R0HEATSINK AL6063 1220X100X10MM |
28 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 3.967" (100.76mm) | - | 0.394" (10.00mm) | - | 2.20°C/W @ 200 LFM | 15.00°C/W | Aluminum | Degreased |
|
1256017.574WX12" EXTRUSION 21910 |
56 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 7.574" (192.38mm) | - | 3.150" (80.00mm) | - | - | 0.16°C/W | Aluminum | - |
|
1254045.375X36" EXTRUSION 6037 XX5045 |
37 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 5.375" (136.53mm) | - | 1.312" (33.32mm) | - | - | 0.45°C/W | Aluminum | - |
|
512-12MHEATSINK FOR PWR MOD/IGBT/RELAY |
26 |
|
Ficha técnica |
512 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 7.200" (182.88mm) | - | 2.350" (59.69mm) | - | - | 0.45°C/W | Aluminum | - |
|

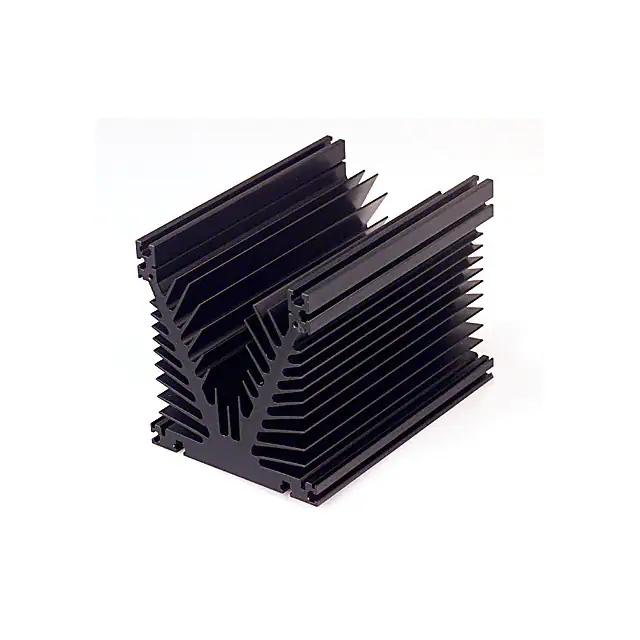

392-180ABHEATSINK EXTRUSION IGBT/SSR BLK |
313 |
|
Ficha técnica |
392 | Bulk | Active | Top Mount, Extrusion | Power Modules | Press Fit | Rectangular, Fins | 7.087" (180.01mm) | 4.921" (124.99mm) | - | 5.346" (135.79mm) | - | 0.10°C/W @ 100 LFM | 0.43°C/W | Aluminum | Black Anodized |
