Dissipadores de Calor
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Pacote resfriado | Método de fixação | Forma | Comprimento | Largura | Diâmetro | Altura da aleta | Dissipação de energia @ Aumento de temperatura | Resistência térmica @ Fluxo de ar forçado | Resistência térmica @ Natural | Material | Acabamento do material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-PCBT1084HEATSINK TO-3 BLACK |
976 |
|
Ficha técnica |
- | Bulk | Active | Board Level | TO-3 | Bolt On | Rectangular, Fins | 1.630" (41.40mm) | 1.291" (32.80mm) | - | 0.748" (19.00mm) | - | 4.40°C/W @ 200 LFM | 13.50°C/W | Aluminum | Black Anodized |
|
ATS-PCB1047HEATSINK TO-218/TO-247 W/TAB |
8,619 |
|
Ficha técnica |
- | Bulk | Active | Board Level, Vertical | TO-218, TO-247 | Bolt On and Board Mounts | Rectangular, Fins | 1.819" (46.20mm) | 2.010" (51.00mm) | - | 0.748" (19.00mm) | - | 2.40°C/W @ 200 LFM | 8.00°C/W | Aluminum | Black Anodized |
|

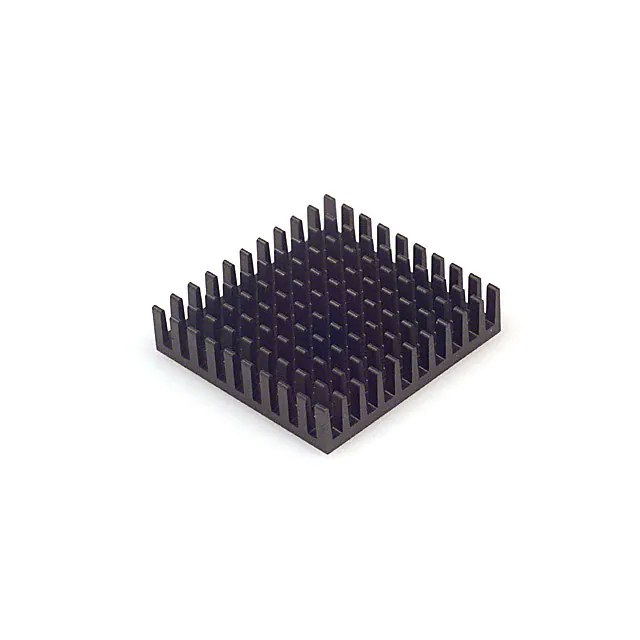

628-40ABHEATSINK CPU 43MM SQ BLK H=.4" |
3,049 |
|
Ficha técnica |
628 | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.750" (44.45mm) | 1.700" (43.18mm) | - | 0.400" (10.16mm) | 2.5W @ 30°C | 4.00°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
ATS-52310G-C0-R0HEATSINK 31X31X12.5MM W/OUT TIM |
255 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.492" (12.50mm) | - | 4.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
V2278E1CPU HEATSINK, CROSS CUT, AL6063, |
226 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.709" (18.00mm) | - | - | 18.00°C/W | Aluminum Alloy | Black Anodized |
|
TGH-0124-01ALUMINIUM HEAT SINK 12.4X12.4MM |
1,333 |
|
Ficha técnica |
TGH | Bulk | Active | Top Mount | - | - | Square, Fins | 0.488" (12.40mm) | 0.488" (12.40mm) | - | 0.512" (13.00mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-PCB1046HEATSINK TO-220/TO-218 W/TAB |
1,630 |
|
Ficha técnica |
- | Bulk | Active | Board Level, Vertical | TO-220, TO-218 | Bolt On and PC Pin | Rectangular, Fins | 1.622" (41.20mm) | 1.700" (43.18mm) | - | 0.500" (12.70mm) | - | 6.30°C/W @ 200 LFM | 8.60°C/W | Aluminum | Black Anodized |
|
ATS-PCB1014HEATSINK TO-220 BLACK 6-32NUT |
1,364 |
|
Ficha técnica |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.500" (12.70mm) | - | 9.50°C/W @ 200 LFM | 24.40°C/W | Aluminum | Black Anodized |
|
M48079B011000GMAX CLIP HEATSINK |
2,967 |
|
Ficha técnica |
Max Clip System™ | Bulk | Active | Board Level, Vertical | TO-126, TO-220, TO-247 | Clip and PC Pin | Rectangular, Angled Fins | 0.790" (20.07mm) | 0.866" (22.00mm) | - | 1.516" (38.50mm) | - | - | - | Aluminum | Black Anodized |
|
V6560KHEATSINK ALUM ANOD |
185 |
|
Ficha técnica |
- | Bulk | Active | Board Level | KLP | Bolt On | Rectangular, Fins | 1.476" (37.50mm) | 1.142" (29.00mm) | - | 0.472" (12.00mm) | - | - | 13.00°C/W | Aluminum | Black Anodized |
|
ATS-PCB1049HEATSINK TO-220 W/TAB BLACK |
9,403 |
|
Ficha técnica |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.670" (42.42mm) | 1.000" (25.40mm) | - | 1.000" (25.40mm) | - | 4.40°C/W @ 200 LFM | 10.00°C/W | Aluminum | Black Anodized |
|
HSE01-193175PHEAT SINK, EXTRUSION, 19 X 31.5 |
1,762 |
|
Ficha técnica |
HSE | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.295" (7.50mm) | 2.95W @ 75°C | 9.20°C/W @ 200 LFM | 25.44°C/W | Aluminum Alloy | Blue Anodized |
|
V2270E1CPU HEATSINK, CROSS CUT, AL6063, |
340 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.590" (15.00mm) | - | - | 17.00°C/W | Aluminum Alloy | Black Anodized |
|
V2275E1CPU HEATSINK, CROSS CUT, AL6063, |
1,320 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.709" (18.00mm) | - | - | 23.00°C/W | Aluminum Alloy | Black Anodized |
|

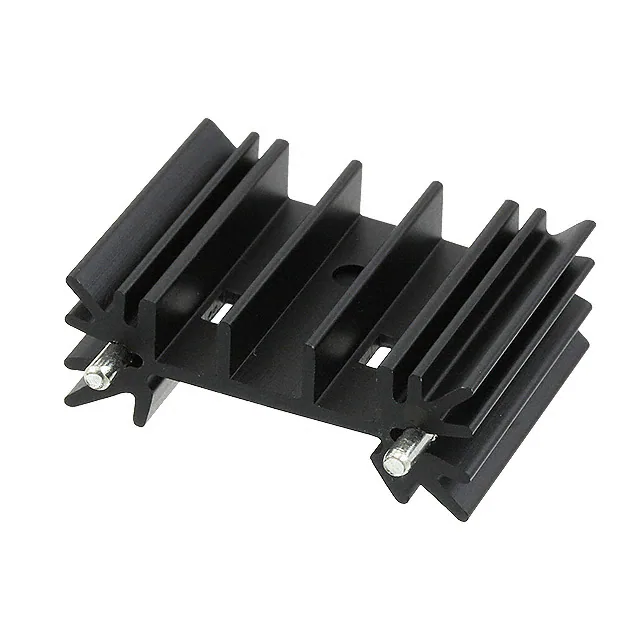

667-10ABPPEHEATSINK TO-220 W/PINS |
2,137 |
|
Ficha técnica |
667 | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.500" (12.70mm) | 1.375" (34.93mm) | - | 1.000" (25.40mm) | 6.0W @ 76°C | 5.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
TGH-0280-01ALUMINIUM HEAT SINK 28X20MM |
853 |
|
Ficha técnica |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Pin Fins | 0.787" (20.00mm) | 1.102" (28.00mm) | - | 0.177" (4.50mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-PCBT1089HEATSINK TO-3 BLACK |
752 |
|
Ficha técnica |
- | Bulk | Active | Board Level | TO-3 | Bolt On | Square, Fins | 2.520" (64.00mm) | 2.520" (64.00mm) | - | 0.917" (23.30mm) | - | 2.60°C/W @ 200 LFM | 6.00°C/W | Aluminum | Black Anodized |
|
574902B03700GHEATSINK TO-220 CLIP-ON/TABS |
3,339 |
|
Ficha técnica |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.375" (34.93mm) | 0.860" (21.84mm) | - | 0.395" (10.03mm) | 2.5W @ 40°C | 6.00°C/W @ 400 LFM | 16.00°C/W | Aluminum | Black Anodized |
|
578305B00000GHEATSINK TO-5 .75" BLACK |
617 |
|
Ficha técnica |
- | Bag | Active | Top Mount | TO-5 | Press Fit | Rectangular, Fins | 0.750" (19.05mm) | 0.830" (21.08mm) | 0.316" (8.03mm) ID | 0.395" (10.03mm) | 1.0W @ 30°C | 20.00°C/W @ 300 LFM | 35.00°C/W | Aluminum | Black Anodized |
|

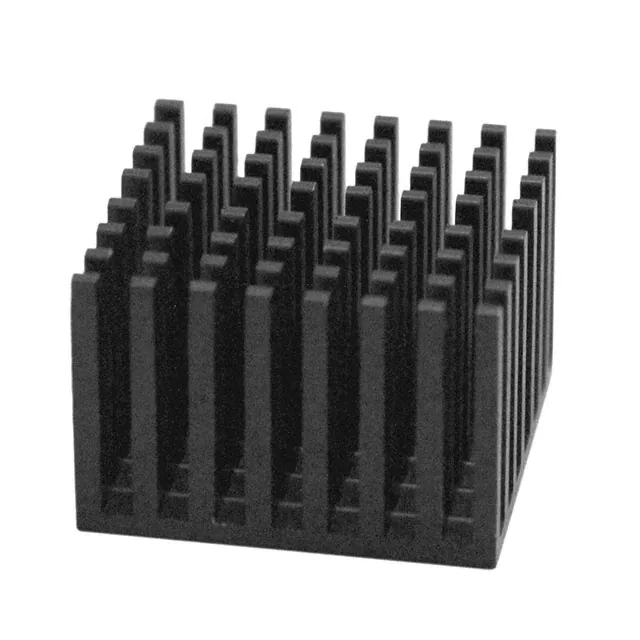

SA000-11003HEATSINK 27X27X18MM W/ADH |
886 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.060" (26.92mm) | 1.060" (26.92mm) | - | 0.709" (18.00mm) | - | - | - | Aluminum | - |
