Dissipadores de Calor
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Pacote resfriado | Método de fixação | Forma | Comprimento | Largura | Diâmetro | Altura da aleta | Dissipação de energia @ Aumento de temperatura | Resistência térmica @ Fluxo de ar forçado | Resistência térmica @ Natural | Material | Acabamento do material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6238B-MTGBOARD LEVEL HEATSINK .61" TO-220 |
1,841 |
|
Ficha técnica |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.159" (29.44mm) | 1.005" (25.53mm) | - | 0.610" (15.49mm) | 2.0W @ 40°C | 6.00°C/W @ 600 LFM | 13.60°C/W | Aluminum | Black Anodized |
|
960-23-23-D-AB-0HEATSINK 23X23MM DIA PUSH PIN |
296 |
|
Ficha técnica |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.905" (23.00mm) | - | 3.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX050050025-15-C1-R0HEATSINK 50X50X25MM XCUT FP |
853 |
|
Ficha técnica |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 7.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

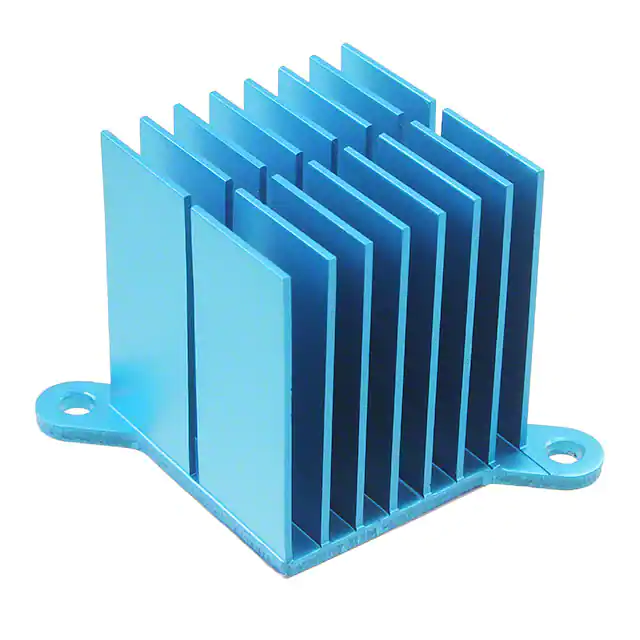

ATS-CPX030030035-174-C1-R0HEATSINK 30X30X35MM R-TAB CP |
485 |
|
Ficha técnica |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 3.98°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX030030035-146-C1-R0HEATSINK 30X30X35MM L-TAB CP |
483 |
|
Ficha técnica |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 3.98°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

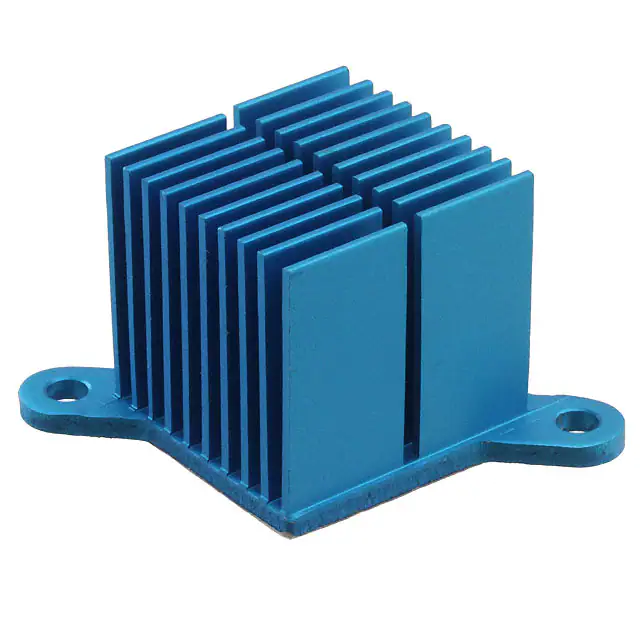

ATS-FPX025025025-76-C2-R0HEATSINK 25X25X25MM R-TAB FP |
209 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX054054025-128-C1-R0HEATSINK 54X54X25MM XCUT CP |
156 |
|
Ficha técnica |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 2.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

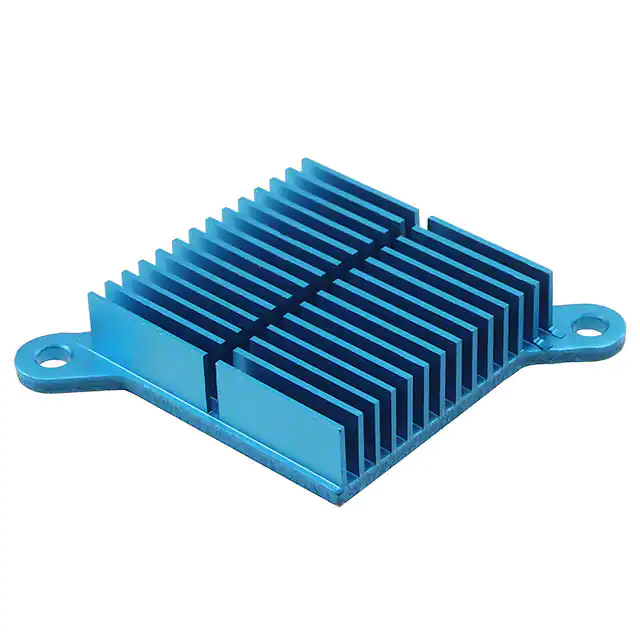

ATS-FPX035035010-55-C2-R0HEATSINK 35X35X10MM L-TAB FP |
131 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 23.98°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

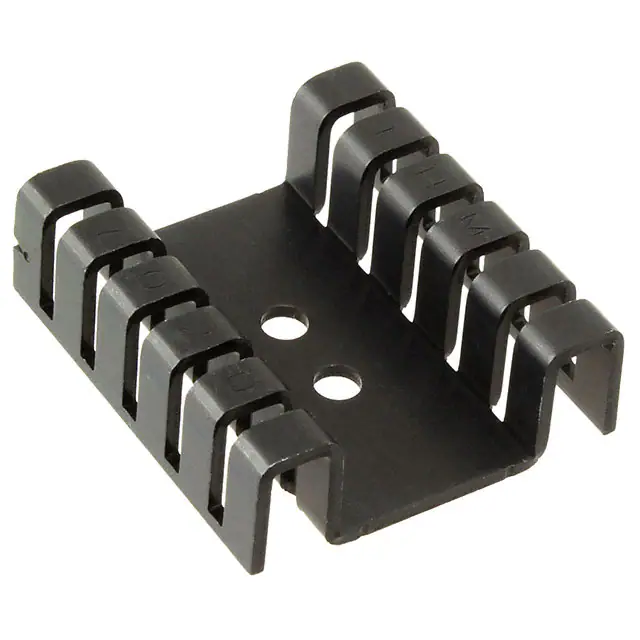

7020BGHEATSINK TO-220 FOLD 42.16MM |
3,664 |
|
Ficha técnica |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.450" (36.83mm) | 1.300" (33.02mm) | - | 0.470" (11.94mm) | 8.0W @ 70°C | 4.00°C/W @ 500 LFM | 8.70°C/W | Aluminum | Black Anodized |
|
ATS-CPX050050010-121-C2-R0HEATSINK 50X50X10MM XCUT CP |
366 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

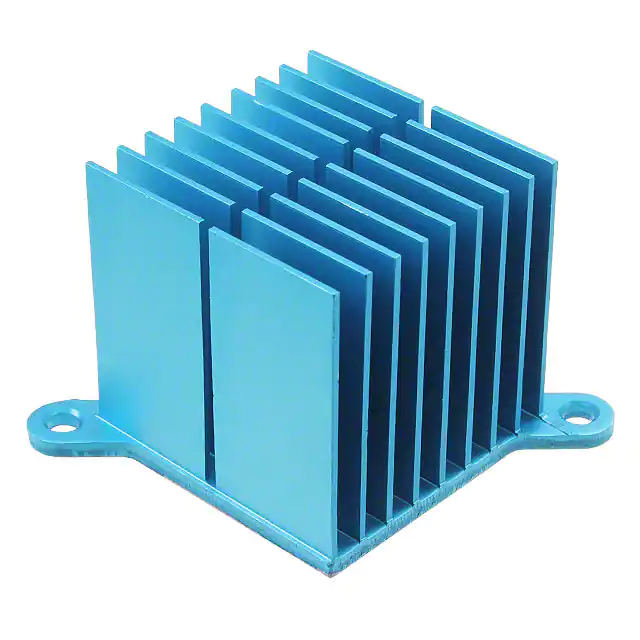

ATS-CPX035035035-180-C1-R0HEATSINK 35X35X35MM R-TAB CP |
139 |
|
Ficha técnica |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
501403B00000GHEAT SINK TO-3 .750" COMPACT |
508 |
|
Ficha técnica |
- | Bag | Active | Board Level | TO-3 | Bolt On | Rhombus | 1.880" (47.75mm) | 1.400" (35.56mm) | - | 0.750" (19.05mm) | 4.0W @ 40°C | 3.00°C/W @ 400 LFM | 10.00°C/W | Aluminum | Black Anodized |
|

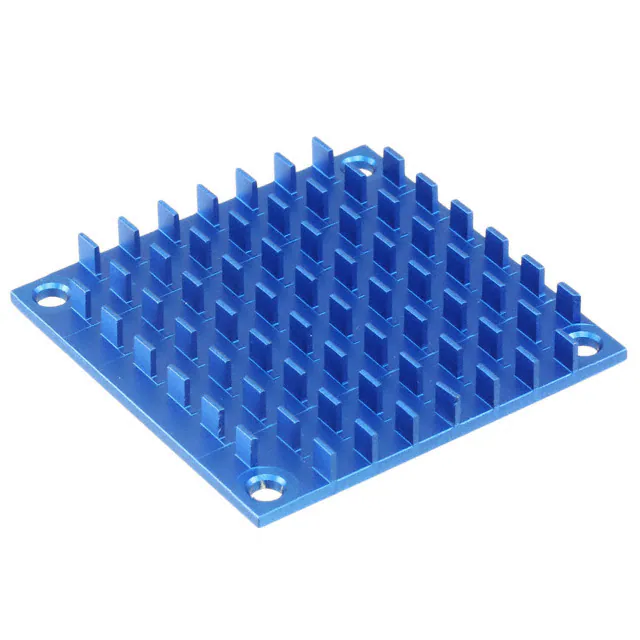

ATS-CPX050050006-199-C2-R0HEATSINK 50X50X6MM XCUT CP |
2,802 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.236" (6.00mm) | - | 15.83°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

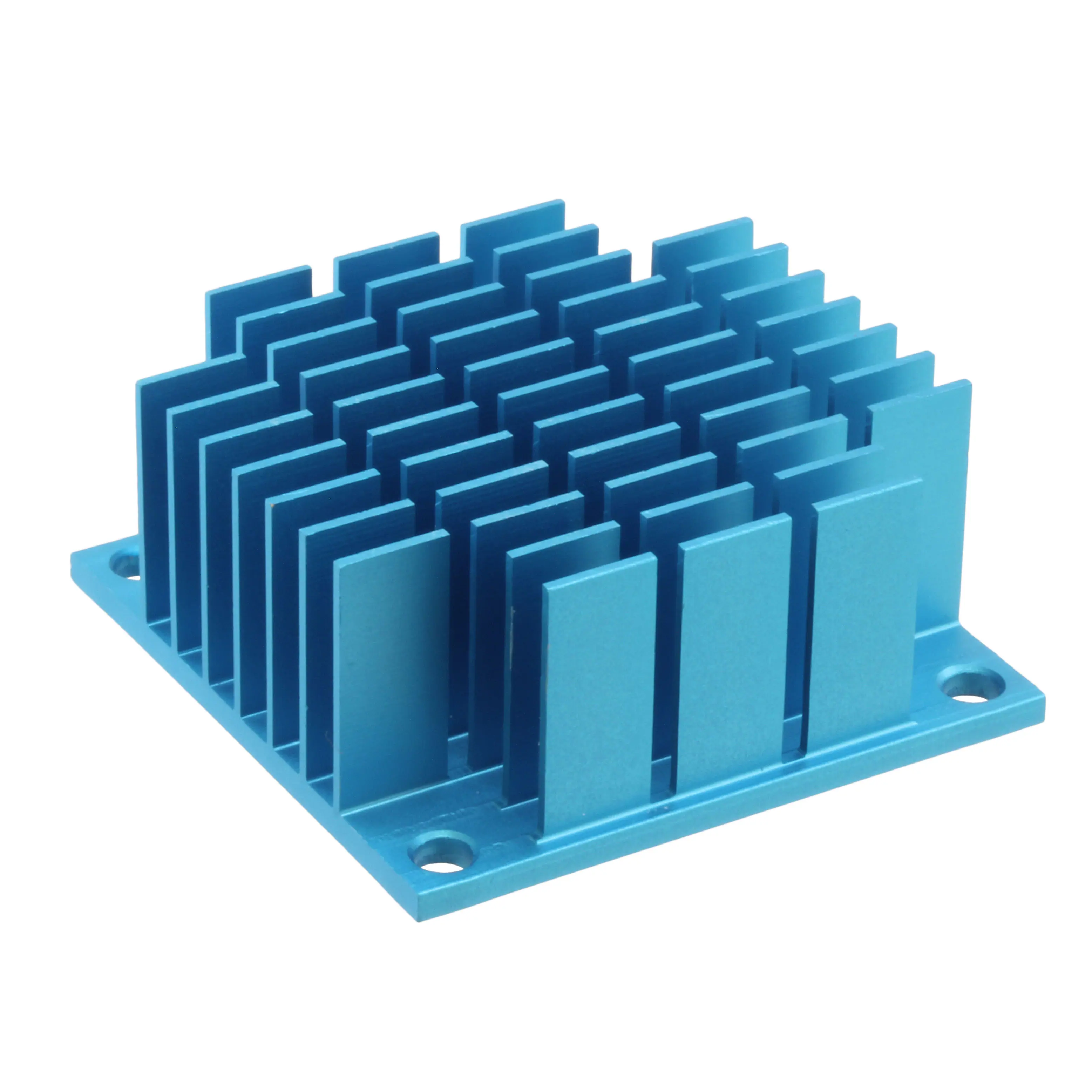

ATS-FPX045045020-09-C3-R0HEATSINK 45X45X20MM XCUT FP |
187 |
|
Ficha técnica |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 10.68°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX035035010-147-C2-R0HEATSINK 35X35X10MM L-TAB CP |
155 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 13.52°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX030030030-173-C2-R0HEATSINK 30X30X30MM R-TAB CP |
264 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 4.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

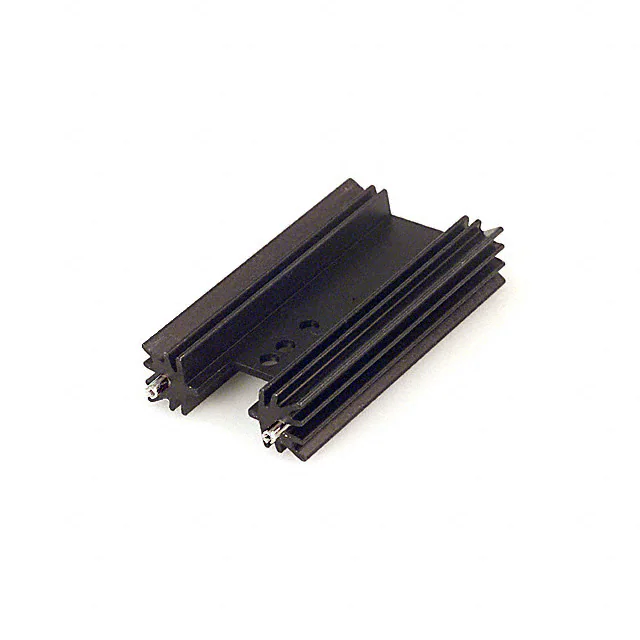

7-338-4PP-BAHEATSINK PWR W/PINS BLACK TO-220 |
2,249 |
|
Ficha técnica |
7 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.500" (63.50mm) | 1.380" (35.05mm) | - | 0.500" (12.70mm) | 9.0W @ 40°C | - | 5.70°C/W | Aluminum | Black Anodized |
|
|
960-19-28-F-AB-0HEATSINK 19X28MM FRONT PUSH PIN |
782 |
|
Ficha técnica |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 1.102" (28.00mm) | - | 4.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
TGH-0380-05ALUMINIUM HEAT SINK 38X38MM |
912 |
|
Ficha técnica |
TGH | Bulk | Active | Top Mount | - | Push Pin | Square, Pin Fins | 1.496" (38.00mm) | 1.496" (38.00mm) | - | 0.591" (15.01mm) | - | - | - | Aluminum | Clean Anodized |
|
CR301-50VEALUMINUM HEATSINK 50MM DEGREASED |
115 |
|
Ficha técnica |
CR | Box | Active | Board Level, Vertical | TO-301 | 2 Clips and PC Pin | Rectangular, Fins | 1.969" (50.00mm) | 2.362" (60.00mm) | - | - | - | - | 5.70°C/W | Aluminum Alloy | Degreased |
