Dissipadores de Calor
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Pacote resfriado | Método de fixação | Forma | Comprimento | Largura | Diâmetro | Altura da aleta | Dissipação de energia @ Aumento de temperatura | Resistência térmica @ Fluxo de ar forçado | Resistência térmica @ Natural | Material | Acabamento do material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7-335-000-BAHEATSINK HORZ .520"H BLACK TO-3 |
0 |
|
Ficha técnica |
7 | - | Obsolete | Board Level | TO-3 | Bolt On | Rectangular, Fins | 1.530" (38.86mm) | 1.250" (31.75mm) | - | 0.520" (13.21mm) | 6.0W @ 50°C | - | - | Aluminum | Black Anodized |
|

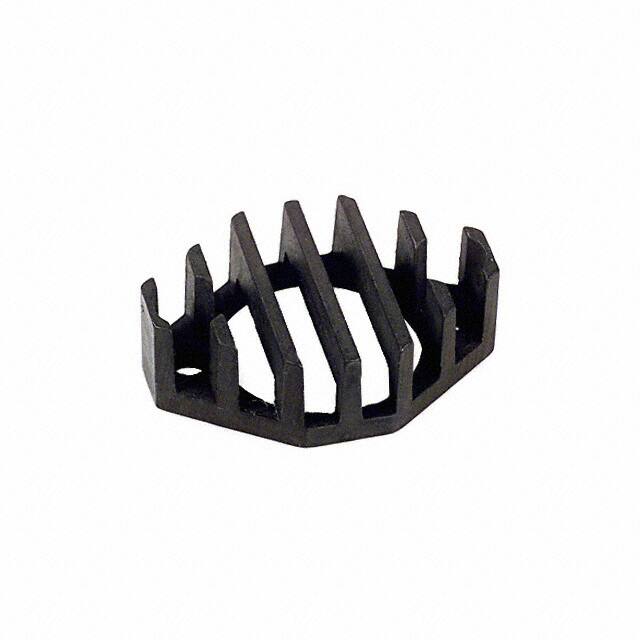

7-423-BAHEATSINK CAP .500"H BLACK O-3 |
0 |
|
Ficha técnica |
7 | - | Obsolete | Top Mount | TO-3 | Bolt On | Rhombus | 1.560" (39.62mm) | 1.062" (26.97mm) | - | 0.500" (12.70mm) | 2.0W @ 70°C | - | 40.00°C/W | Aluminum | Black Anodized |
|

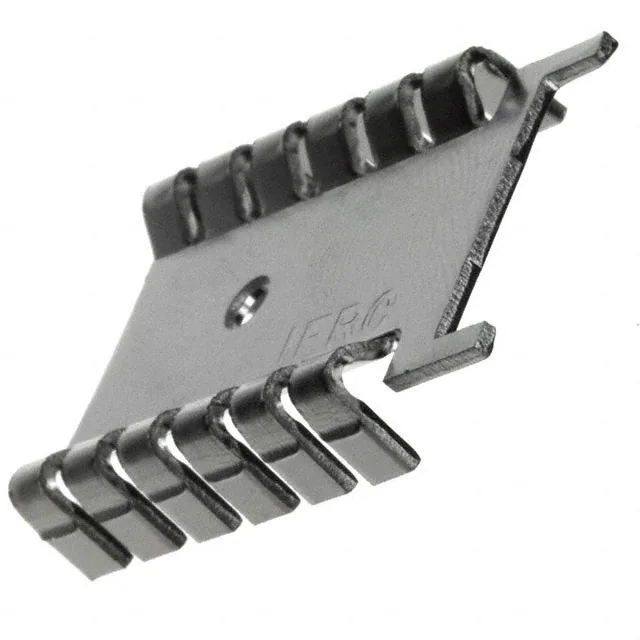

PSB2-1NDHEATSINK V/H W/TABS NICKL TO-220 |
0 |
|
Ficha técnica |
PSB2-1 | - | Obsolete | Board Level, Vertical | TO-126, TO-127, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.250" (31.75mm) | 0.880" (22.35mm) | - | 0.250" (6.35mm) | - | - | 25.90°C/W | Aluminum | Nickel |
|
217-36CT6HEATSINK DPAK SMT TIN PLATED |
0 |
|
Ficha técnica |
217 | Bulk | Obsolete | Top Mount | D²Pak (TO-263), SOL-20, SOT-223, TO-220 | SMD Pad | Rectangular | 0.740" (18.80mm) | 0.600" (15.24mm) | - | 0.360" (9.14mm) | 1.0W @ 55°C | 16.00°C/W @ 200 LFM | 55.00°C/W | Copper | Tin |
|

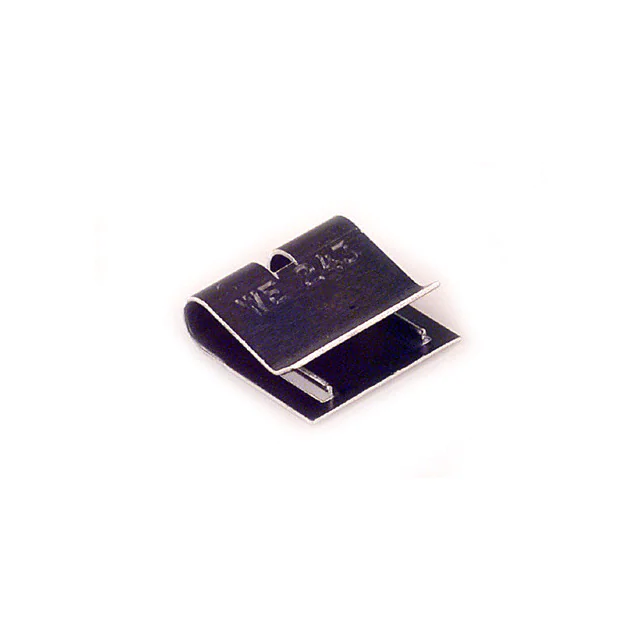

243-3PABHEATSINK TO-220 CLIP-ON BLK |
0 |
|
Ficha técnica |
243 | Bulk | Active | Board Level | TO-220 | Clip | Square | 0.800" (20.32mm) | 0.270" (6.86mm) | - | 0.800" (20.32mm) | 2.0W @ 78°C | 8.20°C/W @ 400 LFM | 39.00°C/W | Aluminum | Pre-Black Anodized |
|
287-1ABHEATSINK TO-220 VERT W/TABS BLK |
0 |
|
Ficha técnica |
287 | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 4.0W @ 65°C | 7.80°C/W @ 200 LFM | 16.20°C/W | Aluminum | Black Anodized |
|
288-1ABHEATSINK TO-220/202 VERT W/TABS |
0 |
|
Ficha técnica |
288 | Bulk | Obsolete | Board Level, Vertical | TO-220, TO-202 | Bolt On and PC Pin | Rectangular, Fins | 1.250" (31.75mm) | 0.875" (22.22mm) | - | 0.215" (5.46mm) | 4.0W @ 85°C | 12.00°C/W @ 200 LFM | 21.20°C/W | Aluminum | Black Anodized |
|
634-10ABPHEATSINK TO-220 VERT MT BLK 1" |
0 |
|
Ficha técnica |
634 | Bulk | Obsolete | Board Level, Vertical | TO-220, TO-218 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | - | - | - | Aluminum | Black Anodized |
|
634-20ABPHEATSINK TO-220 VERT MT BLK 2.0" |
0 |
|
Ficha técnica |
634 | Bulk | Obsolete | Board Level, Vertical | TO-220, TO-218 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | - | - | - | Aluminum | Black Anodized |
|
637-10ABPHEATSINK TO-220 VERT MT BLK 1" |
0 |
|
Ficha técnica |
637 | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 6.0W @ 76°C | 5.80°C/W @ 200 LFM | 12.70°C/W | Aluminum | Black Anodized |
|
637-15ABPHEATSINK TO-220 VERT MT BLK 1.5" |
0 |
|
Ficha técnica |
637 | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 6.0W @ 65°C | 5.50°C/W @ 200 LFM | 10.80°C/W | Aluminum | Black Anodized |
|
637-20ABPHEATSINK TO-220 VERT MT BLK 2" |
0 |
|
Ficha técnica |
637 | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 6.0W @ 55°C | 4.70°C/W @ 200 LFM | 9.20°C/W | Aluminum | Black Anodized |
|

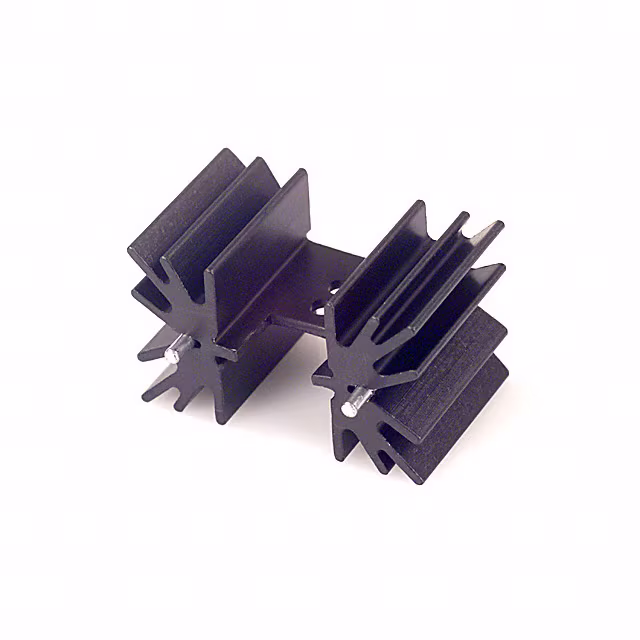

647-10ABPHEATSINK TO-220 W/PINS BLK 1" |
0 |
|
Ficha técnica |
647 | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 6.0W @ 42°C | 3.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

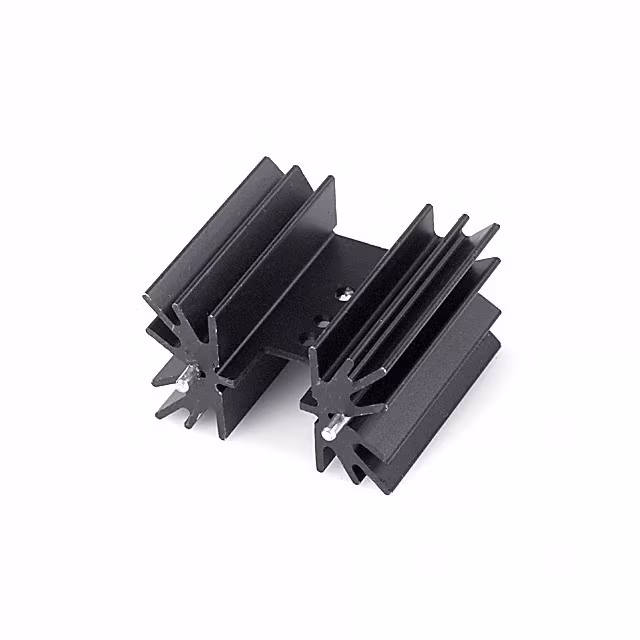

647-15ABPHEATSINK TO-220 W/PINS BLK 1.5" |
0 |
|
Ficha técnica |
647 | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 6.0W @ 37°C | 3.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
657-15ABPNHEATSINK TO-220 W/PINS BLK 1.5" |
0 |
|
Ficha técnica |
657 | Bulk | Obsolete | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 1.500" (38.10mm) | 6.0W @ 38°C | 3.30°C/W @ 200 LFM | 6.30°C/W | Aluminum | Black Anodized |
|
657-20ABPHEATSINK TO-220 W/PINS BLK 2" |
0 |
|
Ficha técnica |
657 | Bulk | Obsolete | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 2.000" (50.80mm) | 6.0W @ 32°C | 2.90°C/W @ 200 LFM | 5.30°C/W | Aluminum | Black Anodized |
|

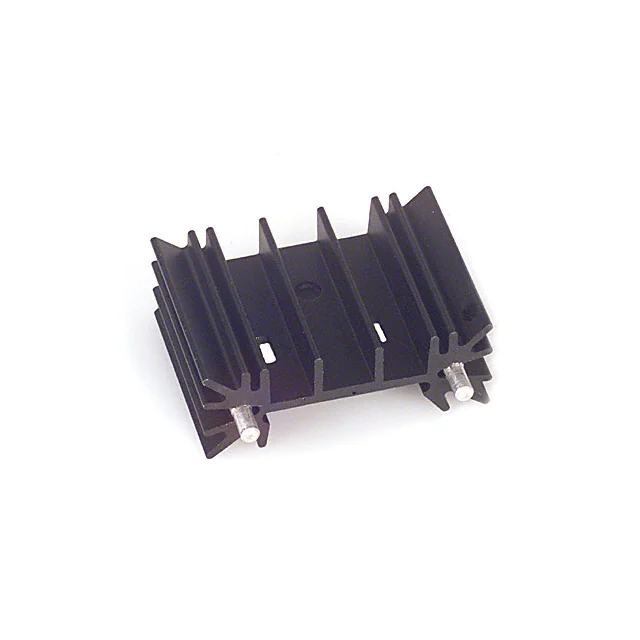

667-10ABPPHEATSINK TO-220 W/PINS |
0 |
|
Ficha técnica |
667 | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.500" (12.70mm) | 1.375" (34.93mm) | - | 1.000" (25.40mm) | 6.0W @ 76°C | 5.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
624-25ABT4HEATSINK CPU 21MM SQ W/DBL TAPE |
0 |
|
Ficha técnica |
624 | Bulk | Obsolete | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.250" (6.35mm) | - | 25.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
625-25ABT4HEATSINK CPU 25MM SQ W/DBL TAPE |
0 |
|
Ficha técnica |
625 | - | Obsolete | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.250" (6.35mm) | - | 12.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
658-25ABT1HEATSINK CPU 28MM SQ BLK W/TAPE |
0 |
|
Ficha técnica |
658 | Bulk | Obsolete | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.250" (6.35mm) | 2.0W @ 40°C | 5.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
