Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

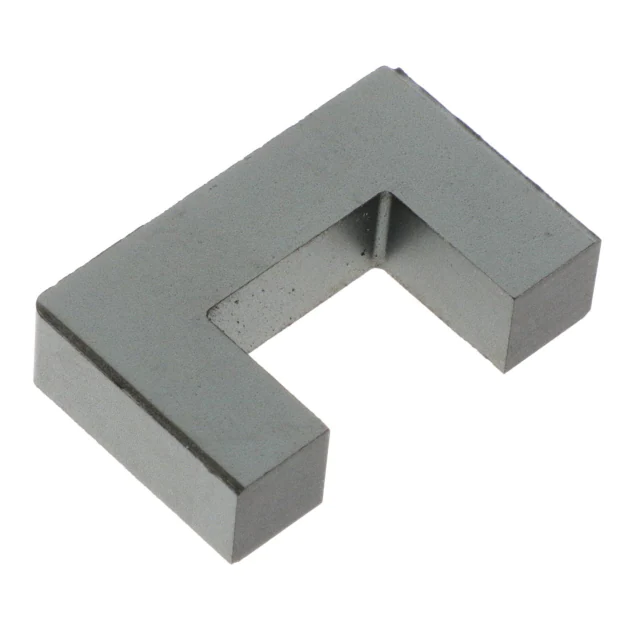

9077025002FERRITE CORE U 77 |
1,559 |
|
Ficha técnica |
- | Bulk | Active | U | - | 77 | - | - | - | Ungapped | - | 2000 | 207.0 | 84.0 | 40.0 | - | 3360.0 | Uncoated | - | 1.000" (25.40mm) | 0.250" (6.35mm) |
|
ZL41605TCTOROID GREY COATED |
1,803 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | L | 0.655" (16.64mm) | 396 nH | ±25% | Ungapped | - | 750 | - | 37.2 | 15.6 | - | 582.0 | Epoxy | 0.205" (5.20mm) | - | - |
|
B65843A0250J087FERRITE CORE EP 250NH N87 2PCS |
935 |
|
Ficha técnica |
EP13 | Box | Active | EP | EP 13 | N87 | - | 250 nH | ±5% | Gapped | 247.0 | 2200 | 1.24 | 24.2 | 19.5 | 14.9 | 472.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
|

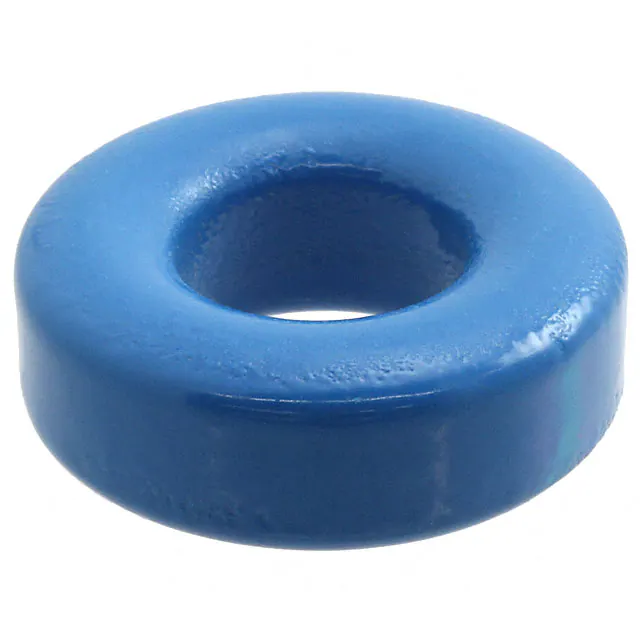

B64290L0632X027FERRITE CORE TOROID 1.94UH N27 |
500 |
|
Ficha técnica |
TX20/10/7 | Box | Active | Toroid | - | N27 | 0.835" (21.20mm) | 1.94 µH | ±25% | Ungapped | - | 2000 | 1.3 | 43.55 | 33.63 | 33.63 | 1465.0 | Epoxy | 0.319" (8.10mm) | - | - |
|
EFD20/10/7-3F36FERRITE CORE EFD 3F36 |
4,004 |
|
Ficha técnica |
- | Bulk | Active | EFD | EFD 20 x 10 x 7 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
|
B66453G0000X608FERRITE CORE ELP PCS200 |
1,091 |
|
Ficha técnica |
ELP18/4/10 | Bulk | Active | ELP | - | PC200 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.157" (4.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
B65839A0000R087FERRITE CORE EP 1.1UH N87 2PCS |
892 |
|
Ficha técnica |
EP7 | Box | Active | EP | EP 7 | N87 | - | 1.1 µH | -20%, +30% | Ungapped | 1330.0 | 2200 | 1.52 | 15.7 | 10.3 | 8.5 | 162.0 | Uncoated | 0.148" (3.75mm) | 0.370" (9.40mm) | 0.256" (6.50mm) |
|
B64290L0638X087FERRITE CORE TOROID 1.34UH N87 |
408 |
|
Ficha técnica |
TX22/14/6.4 | Bulk | Active | Toroid | - | N87 | 0.917" (23.30mm) | 1.34 µH | ±25% | Ungapped | - | 2200 | 2.07 | 54.15 | 26.17 | - | 1417.0 | Epoxy | 0.291" (7.40mm) | - | - |
|
|
263180020231 SHIELD BEAD |
3,921 |
|
Ficha técnica |
- | Bag | Active | Toroid | - | 31 | 0.366" (9.30mm) | - | - | Ungapped | - | - | - | 20.7 | 7.25 | - | 150.0 | Uncoated | 0.120" (3.05mm) | - | - |
|
ETD29/16/10-3C94FERRITE CORE ETD 3C94 |
2,633 |
|
Ficha técnica |
- | Bulk | Active | ETD | ETD 29 x 16 x 10 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.622" (15.80mm) | 1.205" (30.60mm) | 0.386" (9.80mm) |
|
5968000301FERRITE CORE TOROID 68 |
5,944 |
|
Ficha técnica |
- | Box | Active | Toroid | - | 68 | 0.500" (12.70mm) | - | - | Ungapped | - | 16 | - | 29.5 | 12.9 | - | 380.0 | Uncoated | 0.188" (4.78mm) | - | - |
|
|
ZW41005TCFERRITE CORE TOROID 6.616UH W |
1,894 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | W | 0.405" (10.29mm) | 6.616 µH | ±30% | Ungapped | - | 10000 | - | 20.7 | 10.9 | - | 227.0 | Epoxy | 0.213" (5.40mm) | - | - |
|
3067990881FERRITE CORE ROD 67 |
4,978 |
|
Ficha técnica |
- | Bulk | Active | ROD | - | 67 | - | - | - | Ungapped | 18.0 | 40 | - | - | 12.6 | - | - | Uncoated | - | 1.181" (30.00mm) | - |
|
4077312911FERRITE CORE ROD 77 |
3,384 |
|
Ficha técnica |
- | Bulk | Active | ROD | - | 77 | 0.315" (8.00mm) | - | - | Ungapped | 29.0 | 2000 | - | 25.0 | 7.07 | - | - | Uncoated | - | 1.500" (38.10mm) | - |
|
4052235211FERRITE CORE ROD 52 |
705 |
|
Ficha técnica |
- | Box | Active | ROD | - | 52 | 0.236" (6.00mm) | - | - | Ungapped | 29.0 | 250 | - | 25.0 | 7.07 | - | - | Uncoated | - | 1.181" (30.00mm) | - |
|
E14/3.5/5/R-3F36FERRITE CORE E 3F36 |
9,912 |
|
Ficha técnica |
- | Bulk | Active | E | E 14 x 3.5 x 5 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.138" (3.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
B64290P0037X001FERRITE CORE TOROID 20NH K1 |
8,925 |
|
Ficha técnica |
TC6.3/3.8/2.5 | Box | Active | Toroid | - | K1 | 0.249" (6.32mm) | 20 nH | ±25% | Ungapped | - | 80 | 4.97 | 15.21 | 3.06 | - | 46.5 | Parylene | 0.099" (2.52mm) | - | - |
|
|
ZJ41306TCFERRITE CORE TOROID 2.968UH |
3,212 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | - | 0.525" (13.34mm) | 2.968 µH | ±20% | Ungapped | - | 5000 | - | 31.7 | 14.2 | - | 451.2 | Epoxy | 0.272" (6.91mm) | - | - |
|
B64290L0638X830FERRITE CORE TOROID 2.61UH N30 |
2,410 |
|
Ficha técnica |
TX22/14/6.4 | Box | Active | Toroid | - | N30 | 0.917" (23.30mm) | 2.61 µH | ±25% | Ungapped | - | 4300 | 2.07 | 54.15 | 26.17 | - | 1417.0 | Epoxy | 0.291" (7.40mm) | - | - |
|
B66421G0000X197FERRITE CORE EFD N97 1PC |
2,335 |
|
Ficha técnica |
EFD25/13/9 | Box | Active | EFD | EFD 25 x 13 x 9 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.358" (9.10mm) |
