Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65525J0000R608FERRITE CORE ER PCS200 |
6,127 |
|
Ficha técnica |
EER11/5/6 | Bulk | Active | ER | ER 11 x 5 | PC200 | - | - | -20%, +30% | Ungapped | 580.0 | 800 | 1.1 | 14.1 | 12.4 | 10.3 | 174.0 | Uncoated | 0.197" (5.00mm) | 0.433" (11.00mm) | 0.236" (6.00mm) |
|
0076052A7FERRITE CORE TOROID 12NH KOOL MU |
4,735 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Kool Mu HF | 0.530" (13.45mm) | 12 nH | ±8% | Ungapped | - | 26 | - | 31.2 | 10.9 | - | 340.0 | Coated | 0.217" (5.51mm) | - | - |
|
|
0076051A7FERRITE CORE TOROID 27NH KOOL MU |
4,681 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Kool Mu HF | 0.530" (13.45mm) | 27 nH | ±8% | Ungapped | - | 60 | - | 31.2 | 10.9 | - | 340.0 | Coated | 0.217" (5.51mm) | - | - |
|
|
ZJ41605TCFERRITE CORE TOROID 2.76UH |
2,465 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | - | 0.655" (16.64mm) | 2.76 µH | ±20% | Ungapped | - | 5000 | - | 37.2 | 15.6 | - | 580.0 | Epoxy | 0.205" (5.20mm) | - | - |
|
B65523J0400K087FERRITE CORE ER 400NH N87 |
2,124 |
|
Ficha técnica |
ER9.5 | Box | Active | ER | ER 9.5 x 5 | N87 | - | 400 nH | ±10% | Gapped | - | 2200 | 1.54 | 13.6 | 8.81 | 7.6 | 120.0 | Uncoated | 0.098" (2.50mm) | 0.374" (9.50mm) | 0.197" (5.00mm) |
|
B65523J0000R608FERRITE CORE ER PC200 |
1,847 |
|
Ficha técnica |
ER9.5 | Bulk | Active | ER | ER 9.5 x 5 | PC200 | - | - | -20%, +30% | Ungapped | 460.0 | 800 | 1.54 | 13.6 | 8.81 | 7.6 | 120.0 | Uncoated | 0.197" (5.00mm) | 0.374" (9.50mm) | 0.197" (5.00mm) |
|
TX22/14/6.4-3E27-M7FERRITE CORE TOROID 3E+27 |
322 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 22 x 14 x 6.4 | 3E26 | 0.880" (22.35mm) | - | ±25% | Ungapped | - | 7000 | 2.2 | 54.2 | 24.8 | - | 1340.0 | Epoxy | 0.265" (6.75mm) | - | - |
|
TX16/9.6/6.3-3E27FERRITE CORE TOROID 3E+27 |
5,893 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 16 x 9.6 x 6.3 | 3E27 | 0.640" (16.25mm) | - | ±30% | Ungapped | - | - | 1.95 | 38.5 | 19.7 | - | 760.0 | Epoxy | 0.258" (6.55mm) | - | - |
|
|
5975001821FERRITE CORE TOROID 3.025UH 75 |
1,671 |
|
Ficha técnica |
- | Box | Active | Toroid | - | 75 | 0.906" (23.00mm) | 3.025 µH | -25%, +20% | Ungapped | - | 5000 | 2.07 | 54.0 | 26.2 | - | 1420.0 | Plastic | 0.280" (7.11mm) | - | - |
|
|
CMC016010006HNANOCRYSTALLINE CORE TOROID 43UH |
752 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Nanocrystalline | 0.630" (16.00mm) | 43 µH | ±30% | Ungapped | - | 80000 | - | 41.0 | 15.0 | - | - | Polyester | 0.236" (6.00mm) | - | - |
|

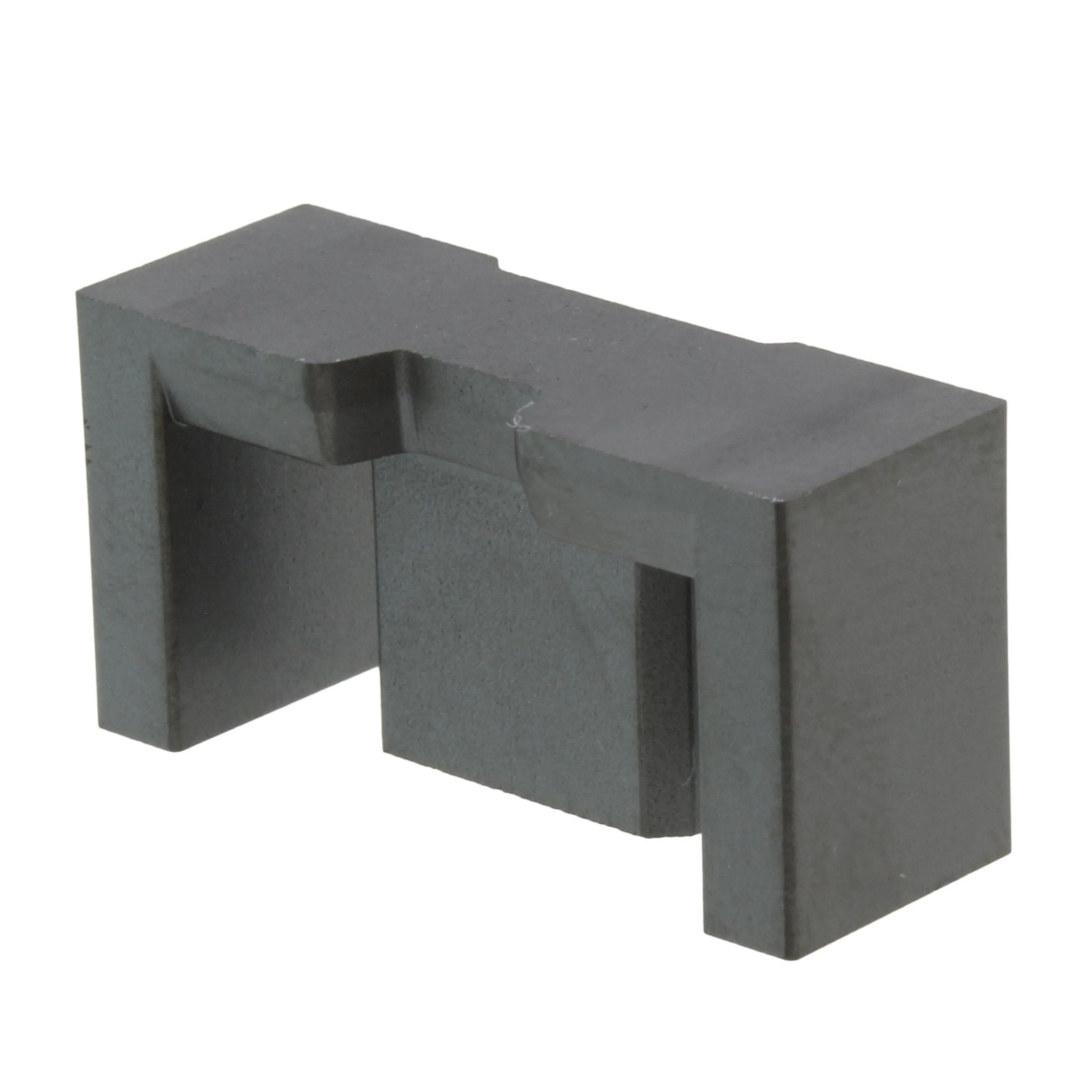

B66421U0315K187FERRITE CORE EFD N87 1PC |
2,927 |
|
Ficha técnica |
EFD25/13/9 | Box | Active | EFD | EFD 25 x 13 x 9 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.358" (9.10mm) |
|
B66319G0500X187FERRITE CORE E N87 |
2,629 |
|
Ficha técnica |
E30/15/7 | Box | Active | E | E 30 x 15 x 7 | N87 | - | - | - | Gapped | - | 2200 | 1.12 | 67.0 | 60.0 | 49.0 | 4000.0 | Uncoated | 0.598" (15.20mm) | 1.181" (30.00mm) | 0.287" (7.30mm) |
|
B66423U0160K187FERRITE CORE EFD N87 1PC |
2,376 |
|
Ficha técnica |
EFD30/15/9 | Box | Active | EFD | EFD 30 x 15 x 9 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.591" (15.00mm) | 1.181" (30.00mm) | 0.358" (9.10mm) |
|
|
0077380A7FERRITE CORE TOROID 89NH KOOL MU |
1,647 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Kool Mu | 0.680" (17.27mm) | 89 nH | ±8% | Ungapped | - | 125 | - | 41.4 | 23.2 | - | 960.0 | Coated | 0.250" (6.35mm) | - | - |
|
EFD25/13/9-3C96FERRITE CORE EFD 3C96 |
5,223 |
|
Ficha técnica |
- | Bulk | Active | EFD | EFD 25 x 13 x 9 | 3C96 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.358" (9.10mm) |
|
B65937A0000X022FERRITE CORE P N22 |
4,216 |
|
Ficha técnica |
PCH14.4/7.5 | Box | Active | P (Pot Core) | P Core Half 14 x 7.5 | N22 | 0.567" (14.40mm) | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.295" (7.50mm) | - | - |
|
B65935A0000X033FERRITE CORE P M33 1PC |
2,739 |
|
Ficha técnica |
PS9.4/4.6 | Box | Active | P (Pot Core) | PCH 9.4 x 4.6 | M33 | 0.354" (9.00mm) | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.138" (3.50mm) | - | - |
|
B66421G0000X187FERRITE CORE EFD N87 1PC |
2,735 |
|
Ficha técnica |
EFD25/13/9 | Box | Active | EFD | EFD 25 x 13 x 9 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.358" (9.10mm) |
|
B66358G0500X187FERRITE CORE ETD N87 1PC |
146 |
|
Ficha técnica |
ETD29/16/10 | Box | Active | ETD | ETD 29 x 16 x 10 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.630" (16.00mm) | 1.205" (30.60mm) | 0.386" (9.80mm) |
|
|
B66319G0100X187FERRITE CORE E N87 1PC |
1,030 |
|
Ficha técnica |
E30/15/7 | Box | Active | E | E 30 x 15 x 7 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.598" (15.20mm) | 1.181" (30.00mm) | 0.287" (7.30mm) |
