Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66281K0000X608FERRITE CORE I |
3,101 |
|
Ficha técnica |
I14/1.5/5 | Box | Active | I | I 14 x 1.5 x 5 | - | - | - | ±25% | Ungapped | - | - | 1.15 | 16.7 | 14.5 | 13.9 | 242.0 | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
B66319G0000X130FERRITE CORE E N30 1PC |
378 |
|
Ficha técnica |
E30/15/7 | Box | Active | E | E 30 x 15 x 7 | N30 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.598" (15.20mm) | 1.181" (30.00mm) | 0.287" (7.30mm) |
|

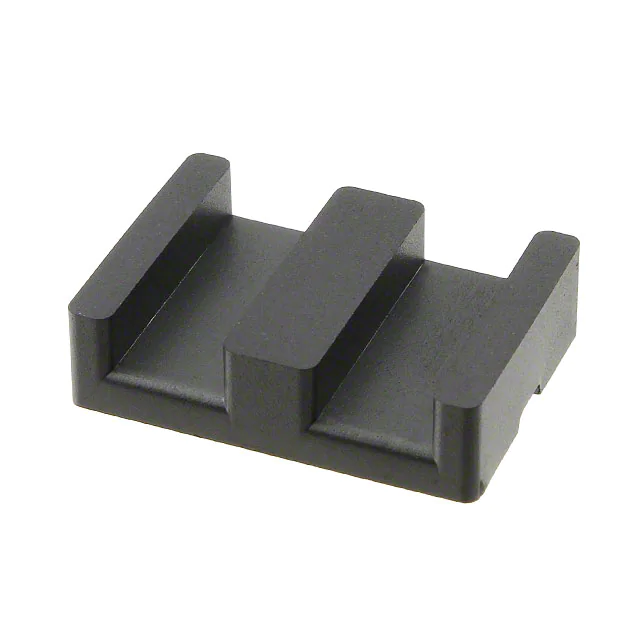

B66285G0000X187FERRITE CORE ELP N87 1PC |
16,303 |
|
Ficha técnica |
ELP22/6/16 | Box | Active | ELP | ELP 22 x 6 x 16 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|

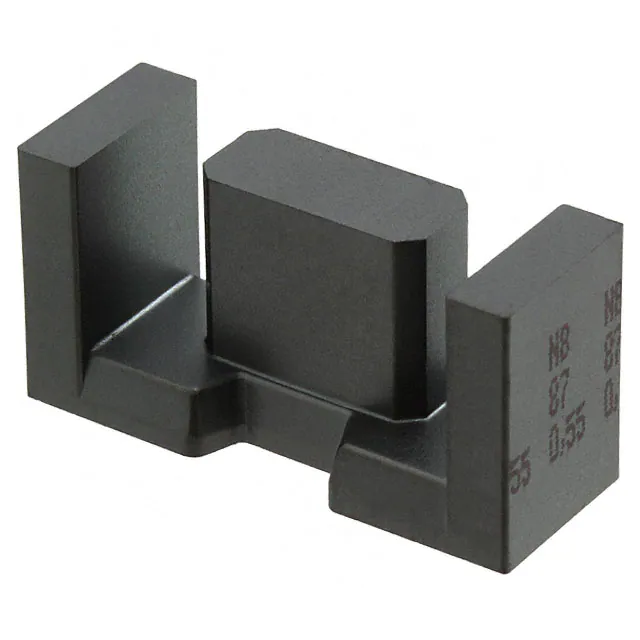

B66421U0160K187FERRITE CORE EFD N87 1PC |
2,284 |
|
Ficha técnica |
EFD25/13/9 | Box | Active | EFD | EFD 25 x 13 x 9 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.358" (9.10mm) |
|
E18/4/10/R-3F46FERRITE CORE E 3F46 |
886 |
|
Ficha técnica |
- | Bulk | Active | E | E 18 x 4 x 10 | 3F46 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.157" (4.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
5977001401FERRITE CORE TOROID 77 |
247 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | 77 | 1.000" (25.40mm) | - | ±25% | Ungapped | - | 2000 | - | 62.0 | 41.0 | - | 2520.0 | Uncoated | 0.320" (8.13mm) | - | - |
|
PLT20/14/2/S-3C95FERRITE CORE PLT 3C95 |
2,396 |
|
Ficha técnica |
- | Bulk | Active | PLT | PLT 20 x 14 x 2 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.091" (2.30mm) | 0.787" (20.00mm) | 0.551" (14.00mm) |
|
ETD39/20/13-3C94FERRITE CORE ETD 3C94 |
5,288 |
|
Ficha técnica |
- | Bulk | Active | ETD | ETD 39 x 20 x 13 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.780" (19.80mm) | 1.575" (40.00mm) | 0.504" (12.80mm) |
|
B64290A0632X830FERRITE CORE TOROID 4.16UH N30 |
3,406 |
|
Ficha técnica |
T20/10/7 | Box | Active | Toroid | R 20 x 10 x 7 | N30 | 0.787" (20.00mm) | 4.16 µH | ±25% | Ungapped | - | 4300 | 1.3 | 43.55 | 33.63 | - | 1465.0 | Uncoated | 0.275" (7.00mm) | - | - |
|
B65841A0000R087FERRITE CORE EP 1.1UH N87 2PCS |
301 |
|
Ficha técnica |
EP10 | Box | Active | EP | EP 10 | N87 | - | 1.1 µH | -20%, +30% | Ungapped | 1480.0 | 2200 | 1.7 | 19.2 | 11.3 | 8.5 | 217.0 | Uncoated | 0.205" (5.20mm) | 0.465" (11.80mm) | 0.309" (7.85mm) |
|
4278282509FERRITE CORE ROD 78 |
184 |
|
Ficha técnica |
- | Bulk | Active | ROD | - | 78 | 0.669" (17.00mm) | - | - | Ungapped | - | 2300 | - | - | - | - | - | Uncoated | - | 0.746" (18.95mm) | - |
|
B64290L0618X027FERRITE CORE TOROID 2.15UH N27 |
1,660 |
|
Ficha técnica |
TX25.3/14.8/10 | Box | Active | Toroid | - | N27 | 1.047" (26.60mm) | 2.15 µH | ±25% | Ungapped | - | 2000 | 1.17 | 60.07 | 51.26 | 51.26 | 3079.0 | Epoxy | 0.433" (11.00mm) | - | - |
|
PLT22/16/2.5/S-3C95FERRITE CORE PLT 3C95 |
1,357 |
|
Ficha técnica |
- | Bulk | Active | PLT | PLT 22 x 16 x 2.5 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.114" (2.90mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
|
0077206A7FERRITE CORE TOROID 68NH KOOL MU |
1,974 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | Kool Mu | 0.830" (21.08mm) | 68 nH | ±8% | Ungapped | - | 125 | - | 50.9 | 22.1 | - | 1120.0 | Coated | 0.280" (7.11mm) | - | - |
|
3061990891FERRITE CORE ROD 61 |
2,027 |
|
Ficha técnica |
- | Bulk | Active | ROD | - | 61 | 0.197" (5.00mm) | - | - | Ungapped | 24.0 | 125 | - | - | 19.6 | - | - | Uncoated | - | 1.378" (35.00mm) | - |
|
|
B64290A0618X830FERRITE CORE TOROID 4.62UH N30 |
716 |
|
Ficha técnica |
T25.3/14.8/15 | Bulk | Active | Toroid | R 25.3 x 14.8 x 10 | N30 | 0.996" (25.30mm) | 4.62 µH | ±25% | Ungapped | - | 4300 | 1.17 | 60.07 | 51.26 | - | 3079.0 | Uncoated | 0.394" (10.00mm) | - | - |
|
B64290L0632X087FERRITE CORE TOROID 2.13UH N87 |
6,217 |
|
Ficha técnica |
TX20/10/7 | Box | Active | Toroid | - | N87 | 0.835" (21.20mm) | 2.13 µH | ±25% | Ungapped | - | 2200 | 1.3 | 43.55 | 33.63 | - | 1465.0 | Epoxy | 0.319" (8.10mm) | - | - |
|
B66361G0000X127FERRITE CORE ETD N27 1PC |
1,935 |
|
Ficha técnica |
ETD34/17/11 | Box | Active | ETD | ETD 34 x 17 x 11 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.689" (17.50mm) | 1.339" (34.00mm) | 0.433" (11.00mm) |
|
TX20/10/7-3E27FERRITE CORE TOROID 3E+27 |
208 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 20 x 10 x 7 | 3E27 | 0.797" (20.25mm) | - | ±30% | Ungapped | - | - | 1.3 | 43.6 | 33.6 | - | 1465.0 | Epoxy | 0.291" (7.40mm) | - | - |
|

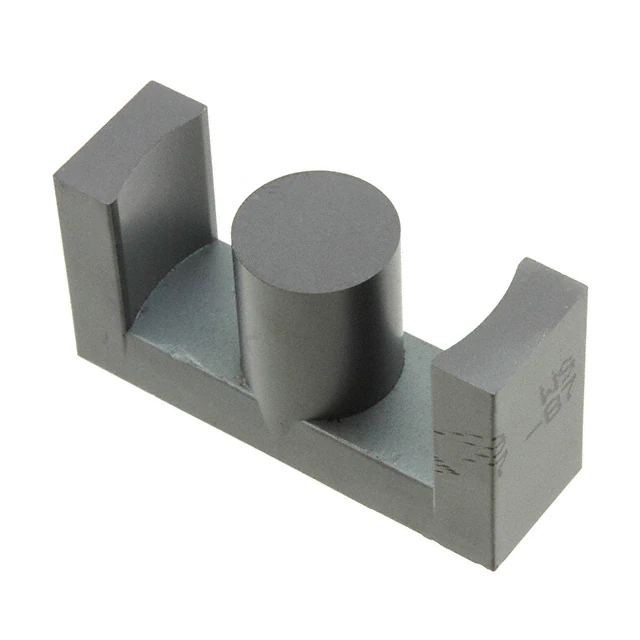

B66361G0000X187FERRITE CORE ETD N87 1PC |
1,756 |
|
Ficha técnica |
ETD34/17/11 | Box | Active | ETD | ETD 34 x 17 x 11 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.689" (17.50mm) | 1.339" (34.00mm) | 0.433" (11.00mm) |
