Dissipadores de Calor
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Pacote resfriado | Método de fixação | Forma | Comprimento | Largura | Diâmetro | Altura da aleta | Dissipação de energia @ Aumento de temperatura | Resistência térmica @ Fluxo de ar forçado | Resistência térmica @ Natural | Material | Acabamento do material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
960-31-21-D-AB-0HEATSINK 31X21MM DIA PUSH PIN |
362 |
|
Ficha técnica |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.827" (21.00mm) | - | 2.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS040040006-PF-13ECROSS CUT HEATSINK 40X40X6MM |
101 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.236" (6.00mm) | - | 12.05°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS031031023-SF-10VHEATSINK 31X31X23MM |
105 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.906" (23.00mm) | - | 3.31°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-55190K-C0-R0HEATSINK 19X19X14.5MM W/OUT TIM |
267 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.571" (14.50mm) | - | 13.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

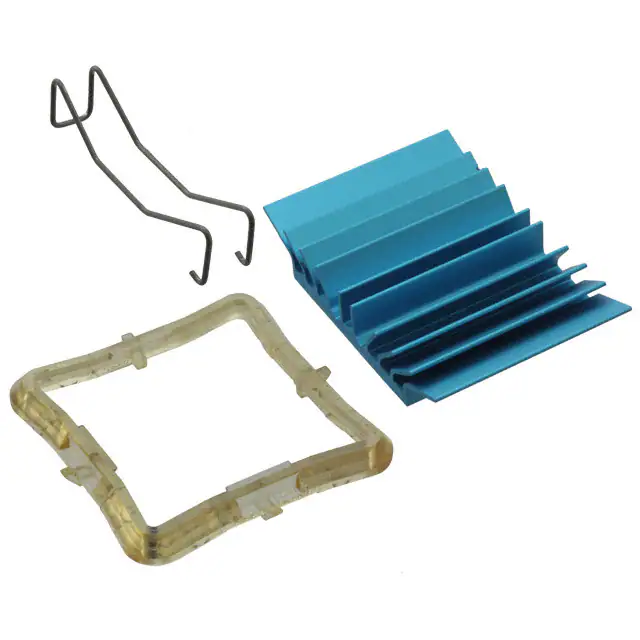

ATS-50290B-C0-R0HEAT SINK 29X29 X 7.5MM W/O TIM |
597 |
|
- |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.295" (7.50mm) | - | 7.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
531102B00000GHEATSINK TO-220 H=1.5" BLK |
1,008 |
|
Ficha técnica |
- | Box | Active | Board Level, Vertical | TO-220, TO-202 | Bolt On | Rectangular, Fins | 1.500" (38.10mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 7.0W @ 70°C | 3.00°C/W @ 500 LFM | 10.40°C/W | Aluminum | Black Anodized |
|
|
ATS024024025-MF-8XMAXIFLOW HEATSINK 24X24X25MM |
111 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.945" (24.00mm) | 0.945" (24.00mm) | - | 0.984" (25.00mm) | - | 3.32°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX070070010-133-C2-R0HEATSINK 70X70X10MM XCUT CP |
359 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 7.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-52330G-C1-R0HEAT SINK 33MM X 33MM X 12.5MM |
699 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.492" (12.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS060060024-SF-16WHEATSINK 60X60X24MM |
108 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.945" (24.00mm) | - | 1.87°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-53400D-C1-R0HEAT SINK 40MM X 40MM X 9.5MM |
836 |
|
Ficha técnica |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.374" (9.50mm) | - | 9.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-50250G-C1-R0HEAT SINK 25MM X 25MM X 12.5MM |
975 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.492" (12.50mm) | - | 5.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

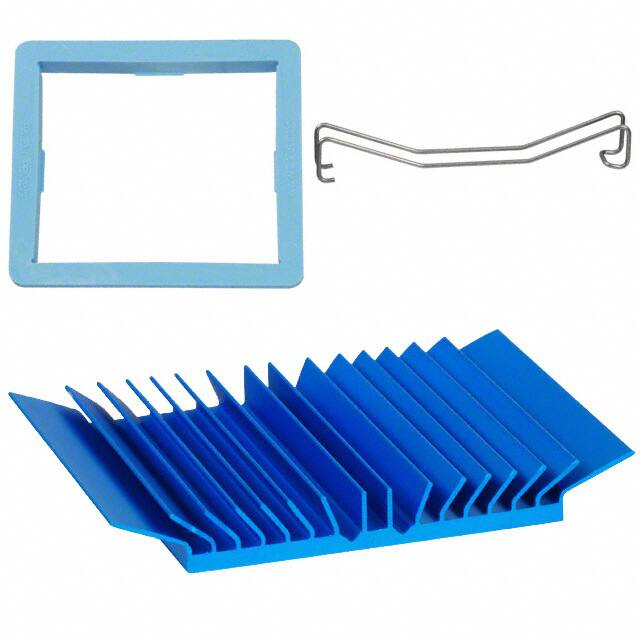

ATS-50450B-C1-R0HEAT SINK 45MM X 45MM X 7.5MM |
1,037 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.295" (7.50mm) | - | 4.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-51230K-C1-R0HEAT SINK 23MM X 23MM X 14.5MM |
531 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.571" (14.50mm) | - | 6.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51425D-C1-R0HEAT SINK 42.5 X 42.5 X 9.5MM |
3,342 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.374" (9.50mm) | - | 4.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

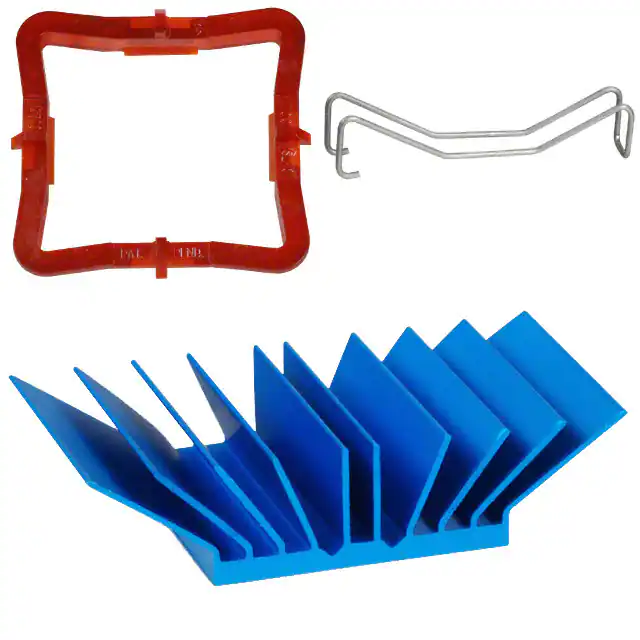

ATS-50300P-C1-R0HEAT SINK 30MM X 30MM X 17.5MM |
216 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.689" (17.50mm) | - | 3.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

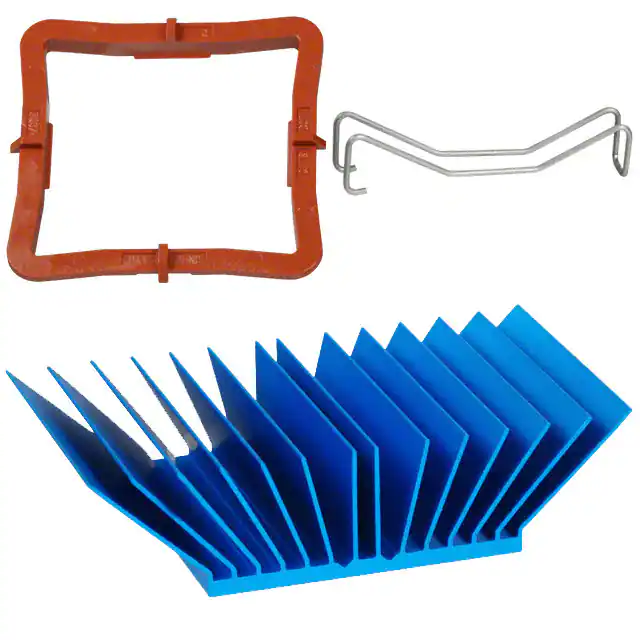

ATS-50375P-C1-R0HEAT SINK 37.5 X 37.5 X 17.5MM |
1,038 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.689" (17.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-51300R-C1-R0HEAT SINK 30MM X 30MM X 19.5MM |
2,491 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.768" (19.50mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-59008-C1-R0HEAT SINK 35MM X 46MM X 16MM |
627 |
|
Ficha técnica |
maxiGRIP | Bulk | Active | Top Mount | Flip Chip Processors | Clip | Rectangular, Angled Fins | 1.378" (35.00mm) | 1.811" (46.00mm) | - | 0.630" (16.00mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

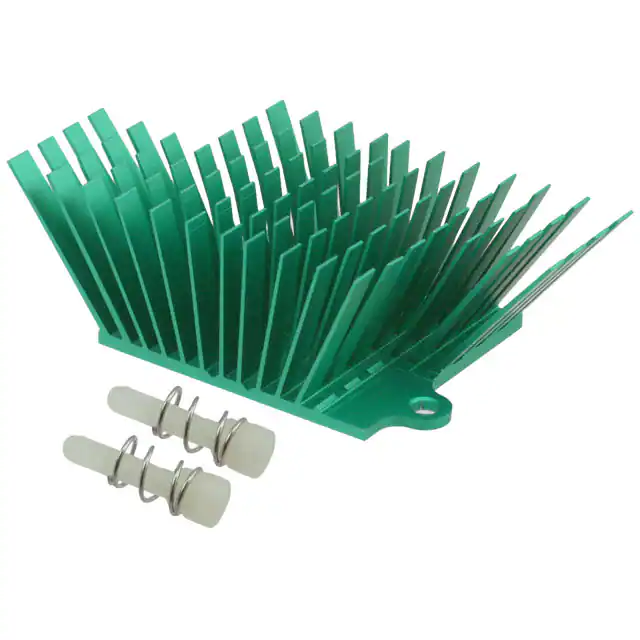

ATS-1043-C1-R0HEATSINK 41X45X25MM NYLONPUSHPIN |
191 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.610" (40.89mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 1.60°C/W @ 300 LFM | - | Aluminum | Green Anodized |
