Dissipadores de Calor
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Pacote resfriado | Método de fixação | Forma | Comprimento | Largura | Diâmetro | Altura da aleta | Dissipação de energia @ Aumento de temperatura | Resistência térmica @ Fluxo de ar forçado | Resistência térmica @ Natural | Material | Acabamento do material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-UC-NF-200CPU HEAT SINK NO FAN COPPER |
133 |
|
Ficha técnica |
- | Box | Active | Top Mount, Skived | Intel LGA2011 & LGA2066 CPU Cooler | Push Pin | Square, Fins | 3.543" (90.00mm) | 3.543" (90.00mm) | - | 1.102" (28.00mm) | - | - | - | Copper | Nickel |
|

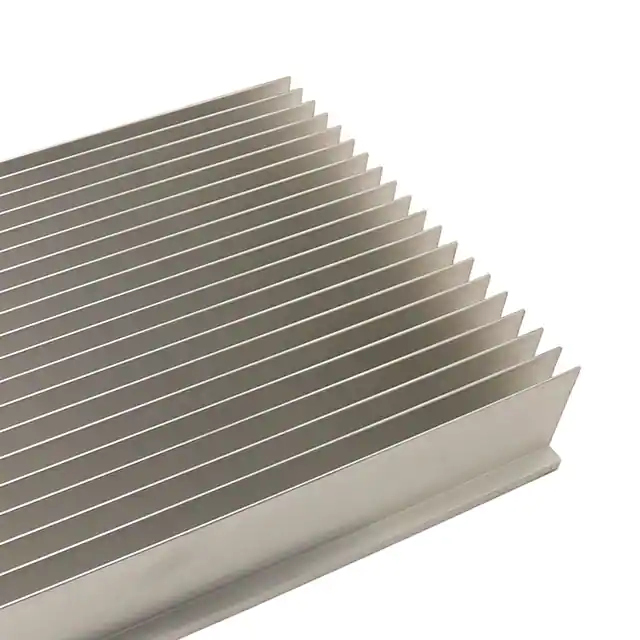

1255219.75WX36" EXTRUSION 16473 XX5384 |
30 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 9.750" (247.65mm) | - | 2.280" (57.91mm) | - | - | 0.19°C/W | Aluminum | - |
|
392-300ABHI-POWER HEATSINK SSR/IGBT/POWER |
28 |
|
Ficha técnica |
392 | Bulk | Active | Top Mount, Extrusion | Power Modules | Press Fit | Rectangular, Fins | 11.811" (300.00mm) | 4.921" (124.99mm) | - | 5.346" (135.79mm) | - | 0.10°C/W @ 100 LFM | 0.33°C/W | Aluminum | Black Anodized |
|
1256436.961WX36" EXTRUSIO 13694 XX6274 |
61 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.960" (176.78mm) | - | 2.790" (70.87mm) | - | - | 0.20°C/W | Aluminum | - |
|

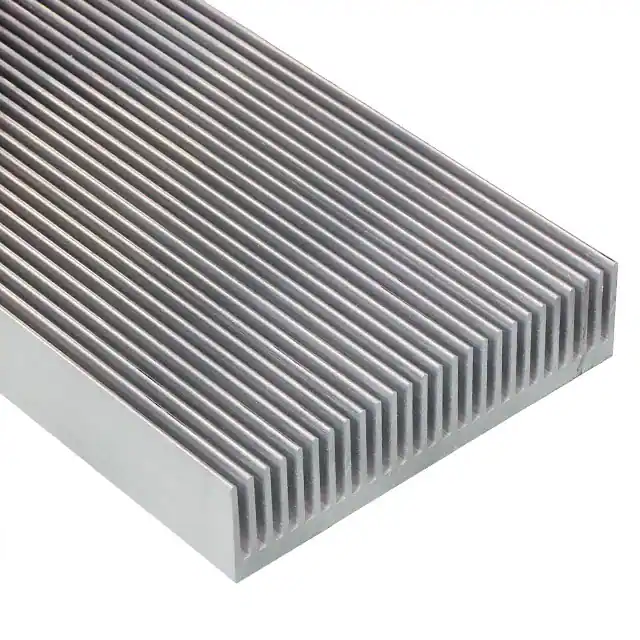

747652F00000G74765 EXTRUSION 1.025X4.235"X5' |
27 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 60.000" (1524.00mm) | 4.235" (107.57mm) | - | 1.025" (26.03mm) | - | 0.50°C/W @ 500 LFM | - | Aluminum | - |
|
ATS-EXL312-1220-R0HEATSINK AL6063 1220X80.3X29.97M |
26 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 3.160" (80.26mm) | - | 1.180" (29.97mm) | - | 0.80°C/W @ 200 LFM | 10.70°C/W | Aluminum | Degreased |
|

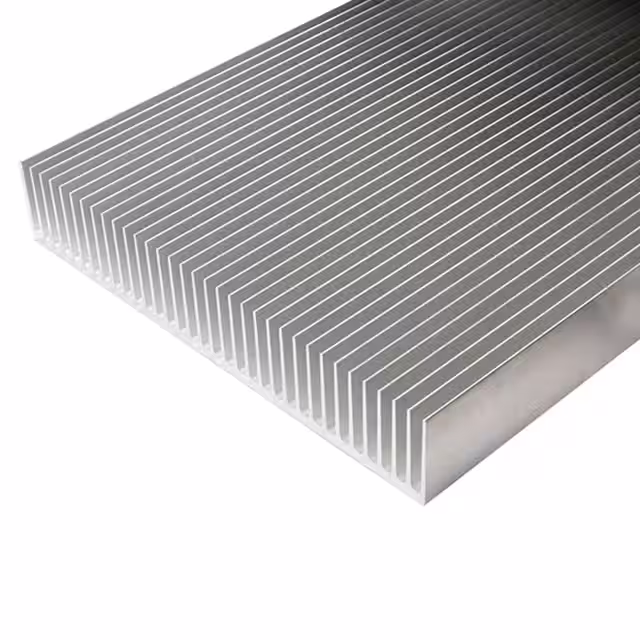

12547012.75WX36" EXTRUSION XX2044 |
29 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 12.750" (323.85mm) | - | 2.250" (57.15mm) | - | - | 0.14°C/W | Aluminum | - |
|

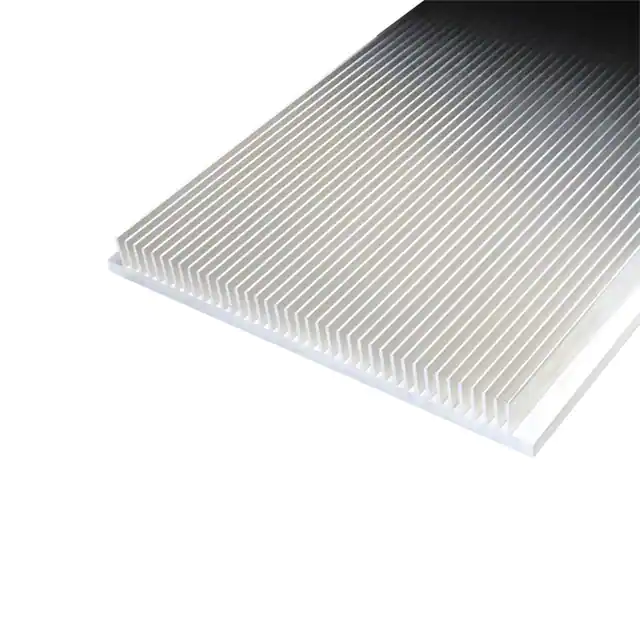

12563212.75WX36" EXTRUSION XX2170 |
26 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 12.750" (323.85mm) | - | 1.350" (34.29mm) | - | - | 0.15°C/W | Aluminum | - |
|

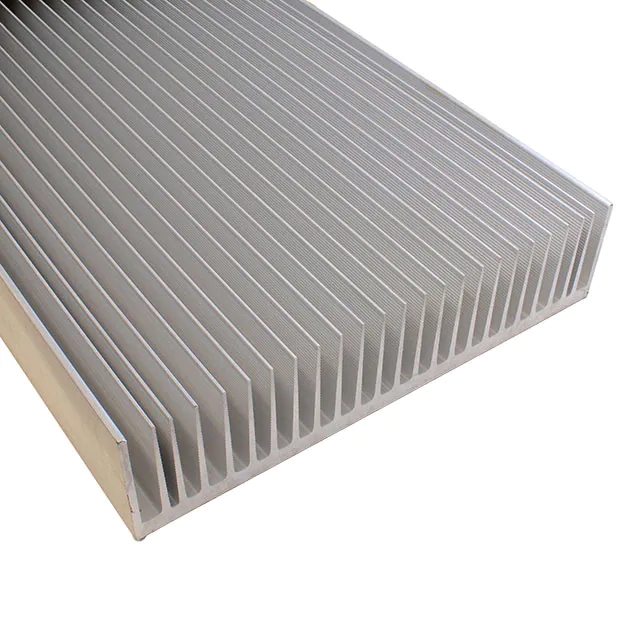

ATS-EXL108-1220-R0HEATSINK AL6063 1220X240X55MM |
71 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 9.449" (240.00mm) | - | 2.165" (54.99mm) | - | 0.54°C/W @ 200 LFM | 1.95°C/W | Aluminum | Degreased |
|

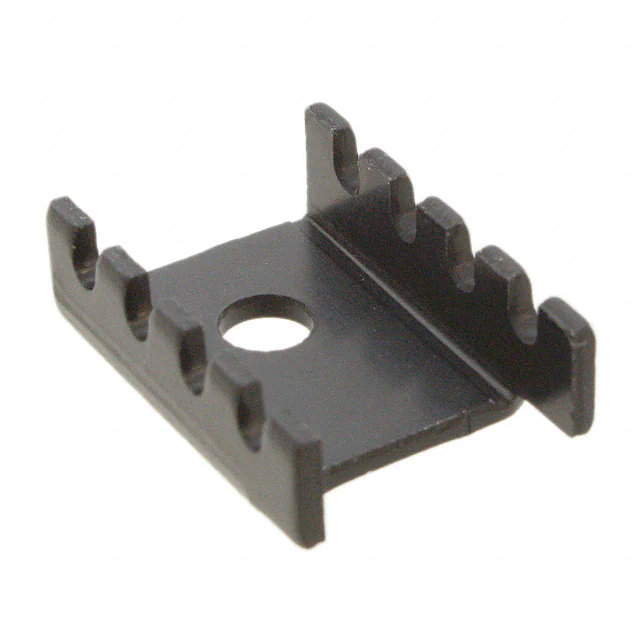

V7236A1HEATSINK TO-220 19.05X13.21MM |
1,801 |
|
Ficha técnica |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.250" (6.35mm) | - | - | 28.00°C/W | Aluminum | Black Anodized |
|
271-ABHEATSINK TO-220 TOP MNT BLK |
18,081 |
|
Ficha técnica |
271 | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 1.750" (44.45mm) | - | 0.500" (12.70mm) | 4.0W @ 62°C | 5.10°C/W @ 400 LFM | 15.50°C/W | Aluminum | Black Anodized |
|
HSE-B2111-038HEAT SINK, EXTRUSION, TO-220, 25 |
10,958 |
|
Ficha técnica |
HSE | Box | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.984" (25.00mm) | 0.625" (16.00mm) | - | 0.354" (9.00mm) | 3.8W @ 75°C | 6.12°C/W @ 200 LFM | 19.74°C/W | Aluminum Alloy | Black Anodized |
|
HSS-B20-NP-06HEATSINK TO-220 2.9W ALUMINUM |
2,867 |
|
Ficha técnica |
HSS | Bag | Active | Board Level | TO-220 | Bolt On | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.375" (9.52mm) | 2.9W @ 75°C | 7.51°C/W @ 200 LFM | 26.32°C/W | Aluminum | Black Anodized |
|
270-ABHEATSINK TO-220 SM FOOTPRINT BLK |
3,962 |
|
Ficha técnica |
270 | Bulk | Active | Board Level | TO-220, TO-202 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 1.750" (44.45mm) | - | 0.375" (9.52mm) | 4.0W @ 70°C | 6.00°C/W @ 400 LFM | 17.50°C/W | Aluminum | Black Anodized |
|
V7236C1HEATSINK ALUM ANOD |
3,900 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On | Square, Pin Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.500" (12.70mm) | - | - | 21.00°C/W | Aluminum | Black Anodized |
|
577500B00000GHEATSINK TO-126 VERT MNT SLIP-ON |
9,836 |
|
Ficha técnica |
- | Bag | Active | Board Level, Vertical | TO-126 | Press Fit, Slide On | Rectangular, Fins | 0.520" (13.20mm) | 0.780" (19.81mm) | - | 0.320" (8.13mm) | 1.0W @ 30°C | 12.00°C/W @ 300 LFM | 26.00°C/W | Aluminum | Black Anodized |
|
289-ABHEATSINK TO-220 VERT/HORZ BLK |
9,109 |
|
Ficha técnica |
289 | Bulk | Active | Board Level | TO-218, TO-202, TO-220 | Bolt On | Rectangular, Fins | 0.710" (18.03mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 2.0W @ 50°C | 9.00°C/W @ 400 LFM | 25.00°C/W | Aluminum | Black Anodized |
|

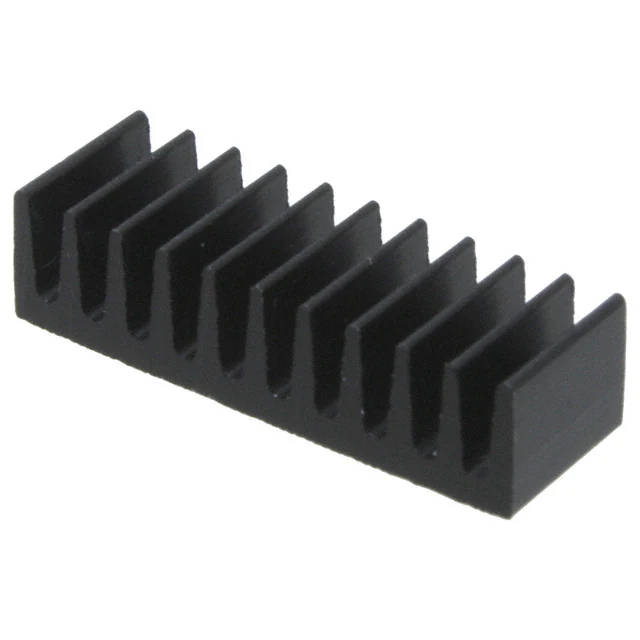

V5619AHEATSINK ALUM ANOD |
4,335 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | 14-DIP and 16-DIP | Press Fit | Rectangular, Fins | 0.250" (6.35mm) | 0.748" (19.00mm) | - | 0.190" (4.83mm) | - | - | 48.00°C/W | Aluminum | Black Anodized |
|

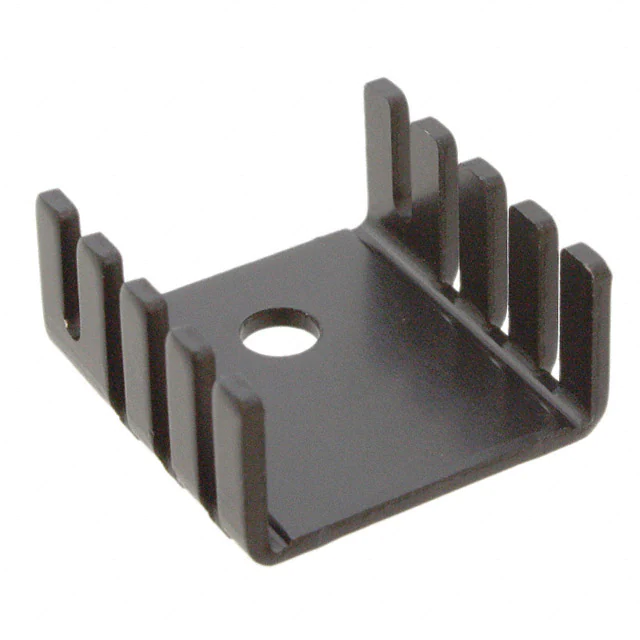

V7235-THEATSINK TO-220 19.05X9.52MM |
2,434 |
|
Ficha técnica |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Square, Fins | 0.750" (19.05mm) | 0.750" (19.05mm) | - | 0.375" (9.52mm) | - | - | 24.00°C/W | Aluminum | Black Anodized |
|
507102B00000GHEATSINK TO-220 EXT CAP 2W |
15,273 |
|
Ficha técnica |
Hat Section 5070 | Bag | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 1.750" (44.45mm) | - | 0.500" (12.70mm) | 4.0W @ 40°C | 5.00°C/W @ 200 LFM | 15.60°C/W | Aluminum | Black Anodized |
