Dissipadores de Calor
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Pacote resfriado | Método de fixação | Forma | Comprimento | Largura | Diâmetro | Altura da aleta | Dissipação de energia @ Aumento de temperatura | Resistência térmica @ Fluxo de ar forçado | Resistência térmica @ Natural | Material | Acabamento do material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-56002-C3-R0HEAT SINK 25.4MM X 25.4MM X 4MM |
130 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.157" (4.00mm) | - | 9.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52150P-C1-R0HEAT SINK 15MM X 15MM X 17.5MM |
862 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.689" (17.50mm) | - | 8.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-52170P-C1-R0HEAT SINK 17MM X 17MM X 17.5MM |
895 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.689" (17.50mm) | - | 8.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-EXL67-300-R0HEATSINK AL6063 300X27.5X13.5 |
2,017 |
|
Ficha técnica |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 1.083" (27.50mm) | - | 0.531" (13.50mm) | - | 5.80°C/W @ 200 LFM | 21.70°C/W | Aluminum | Degreased |
|

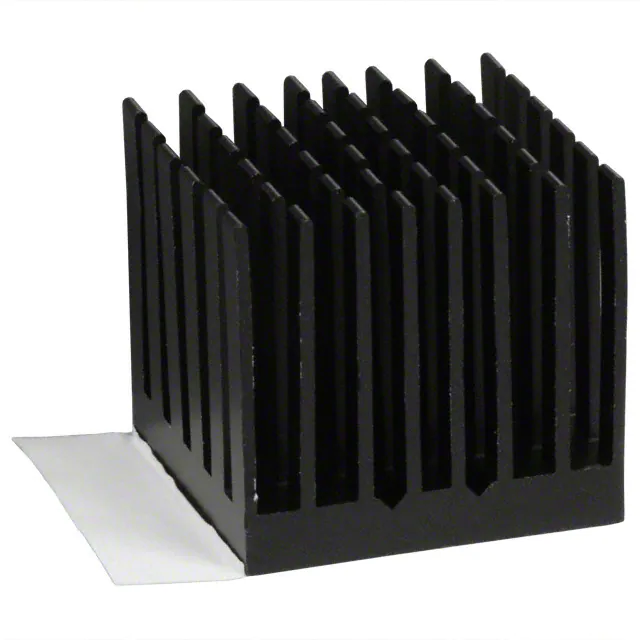

ATS-55270W-C1-R0HEAT SINK 27MM X 27MM X 24.5MM |
782 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.965" (24.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
581102B02500GHEATSINK TO-220 2.5W BLK W/PINS |
1,944 |
|
Ficha técnica |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | 3.0W @ 50°C | 5.00°C/W @ 200 LFM | 16.80°C/W | Aluminum | Black Anodized |
|
532602B02500GHEATSINK TO-220 SOLDERPIN 38.1MM |
603 |
|
Ficha técnica |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 6.0W @ 40°C | 2.00°C/W @ 400 LFM | 5.50°C/W | Aluminum | Black Anodized |
|

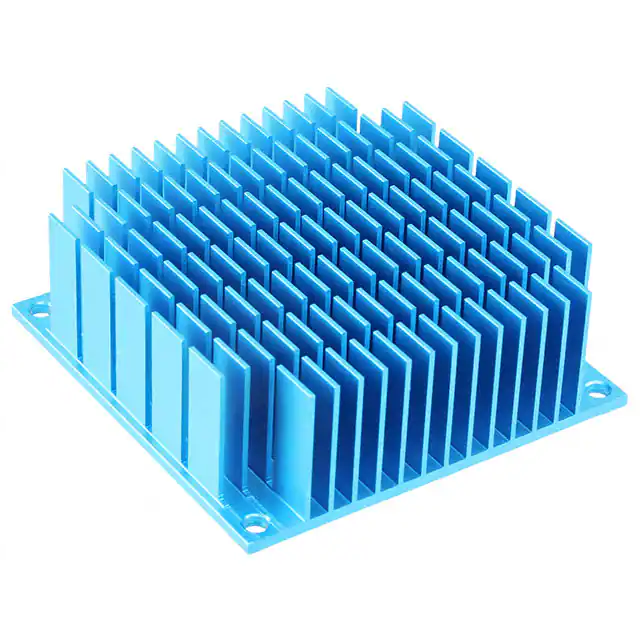

ATS-CPX070070025-136-C2-R0HEATSINK 70X70X25MM XCUT CP |
434 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-1184-C1-R01/8 BRICK HEATSINK 23X59X11.4MM |
226 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | Eighth Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 0.900" (23.00mm) | 2.323" (59.00mm) | - | 0.449" (11.40mm) | - | 6.70°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
ATS-1099-C1-R01/4 BRICK HEATSINK 58X37X11.4MM |
891 |
|
Ficha técnica |
maxiFLOW | Tray | Active | Top Mount | Quarter Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.283" (58.00mm) | 1.457" (37.00mm) | - | 0.449" (11.40mm) | - | 4.30°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
|
ATS-TI1OP-1918-C1-R0TI DKQ56/DDV44 HEATSINK |
368 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | - | Bolt On | Rectangular, Fins | 1.630" (41.40mm) | 0.787" (20.00mm) | - | 1.291" (32.80mm) | - | 4.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51270D-C1-R0HEAT SINK 27MM X 27MM X 9.5MM |
165 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.374" (9.50mm) | - | 8.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-1104-C1-R01/2 BRICK HEATSINK 61X58X11.4MM |
2,733 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | Half Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.402" (61.00mm) | 2.323" (59.00mm) | - | 0.449" (11.40mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
ATS-51210K-C1-R0HEAT SINK 21MM X 21MM X 14.5MM |
900 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.571" (14.50mm) | - | 7.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

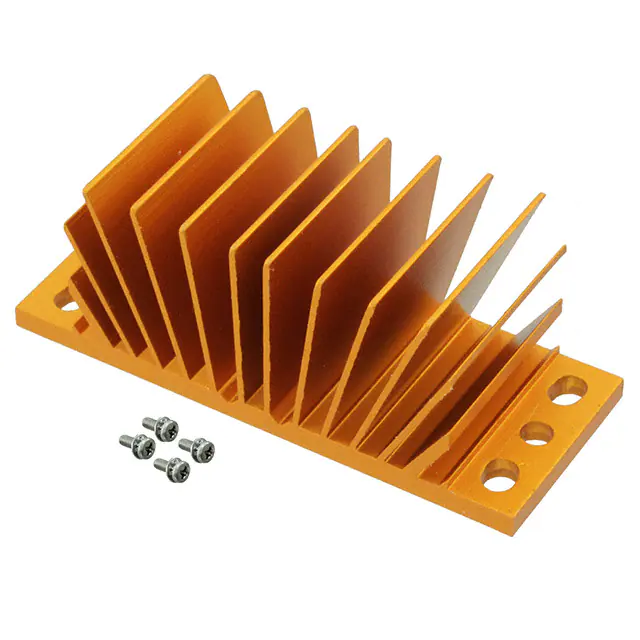

ATS-1186-C1-R01/8 BRICK HEATSINK 23X58X22.9MM |
371 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | Eighth Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 0.900" (23.00mm) | 2.323" (59.00mm) | - | 0.902" (22.90mm) | - | 3.00°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|

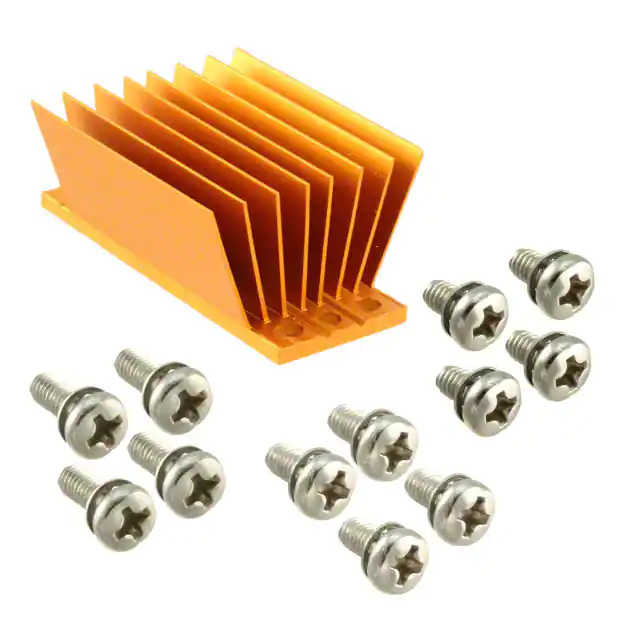

ATS-1181-C1-R01/8 BRICK HEATSINK 58X23X22.9MM |
632 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | Eighth Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.323" (59.00mm) | 0.906" (23.00mm) | - | 0.902" (22.90mm) | - | 2.60°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|

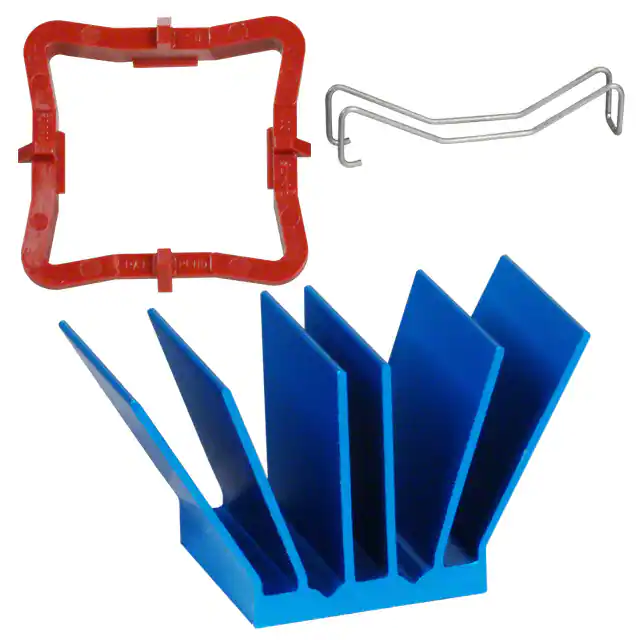

ATS-50230P-C1-R0HEAT SINK 23MM X 23MM X 17.5MM |
447 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.689" (17.50mm) | - | 5.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-1139-C1-R01/4 BRICK HEATSINK 37X58X11.4MM |
1,109 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | Quarter Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 1.457" (37.00mm) | 2.323" (59.00mm) | - | 0.449" (11.40mm) | - | 3.70°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|

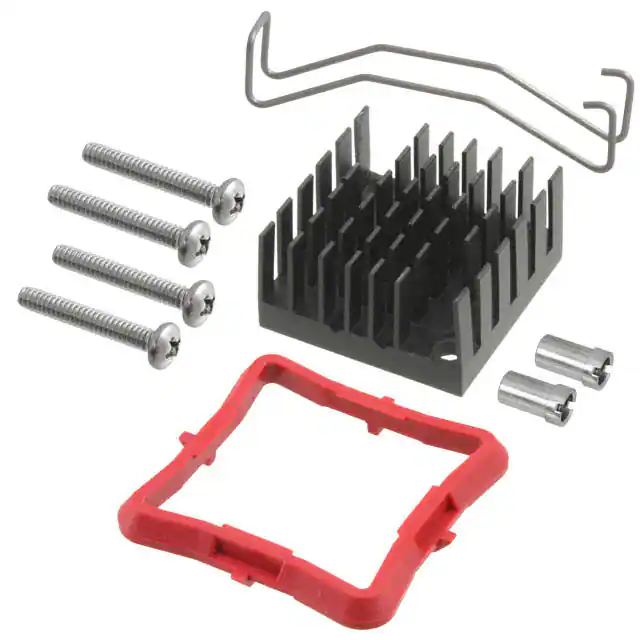

ATS-61270K-C1-R0MAXIGRIP FANSINK 27X27X14.5MM |
223 |
|
Ficha técnica |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.571" (14.50mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
1253492.28WX12" EXTRUSION 14228 |
1,195 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.280" (57.91mm) | - | 0.935" (23.75mm) | - | - | 0.07°C/W | Aluminum | - |
